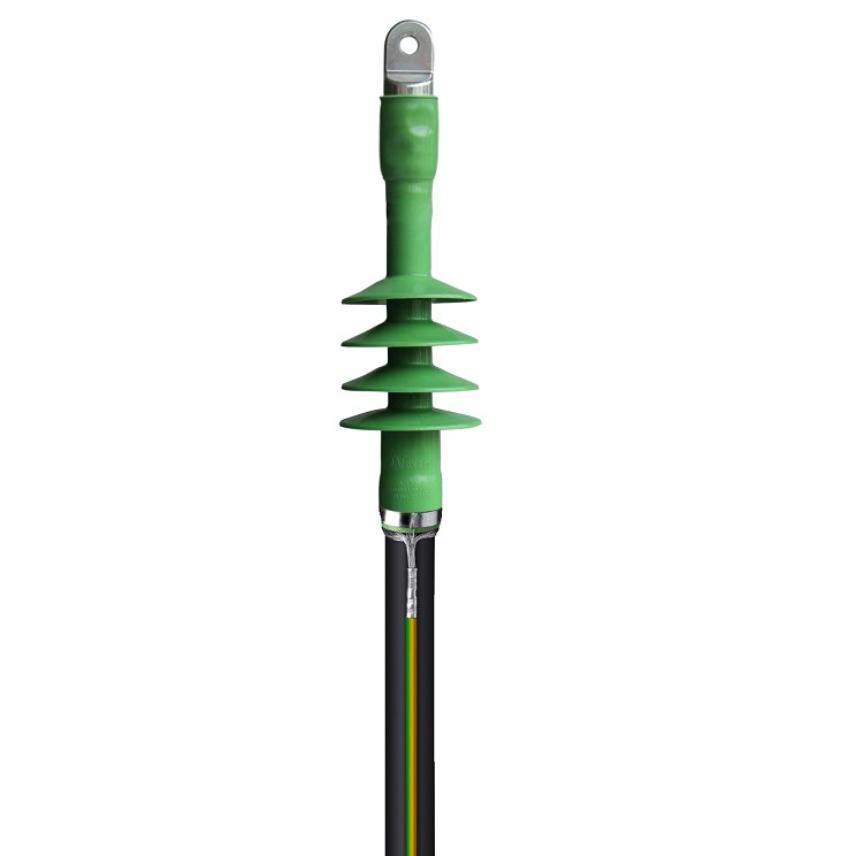

Standard duty slip-on outdoor termination. Up to 12.7/22 (24) kV.
Read more3 x AFS 20-1
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 17 ... 27 mm
- Length: 295 mm
- Nominal overall diameter: 100.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Pollution Class: D
3 x AFS 20-1
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 70 ... 95 mm²
- Diameter over insulation, range: 17 ... 27 mm
- Length: 295 mm
- Nominal overall diameter: 100.0 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Pollution Class: E
3 x AFS 20-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 150 ... 300 mm²
- Diameter over insulation, range: 20.9 ... 35 mm
- Length: 325 mm
- Nominal overall diameter: 100.0 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Pollution Class: E
3 x AFS 20-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 20.9 ... 35 mm
- Length: 325 mm
- Nominal overall diameter: 100.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Pollution Class: D
3 x AFS 20-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 29.7 ... 46 mm
- Length: 390 mm
- Nominal overall diameter: 120.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Pollution Class: D
3 x AFS 20-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 29.7 ... 46 mm
- Length: 390 mm
- Nominal overall diameter: 120.0 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Pollution Class: E
Description
Description
Standards
-
ProductIEC 60502-4
-
TestCENELEC HD 629.1
-
InternationalIEC/TS 60815-3
Application

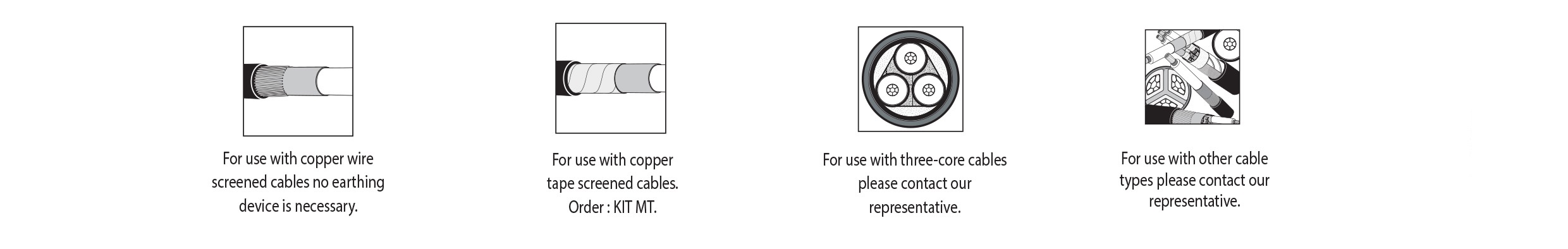

AFS terminations are suitable for outdoor installation on polymeric insulated medium voltage cables with extruded easy strip conductive screen or bonded extruded conductive screen.
Technical characteristics

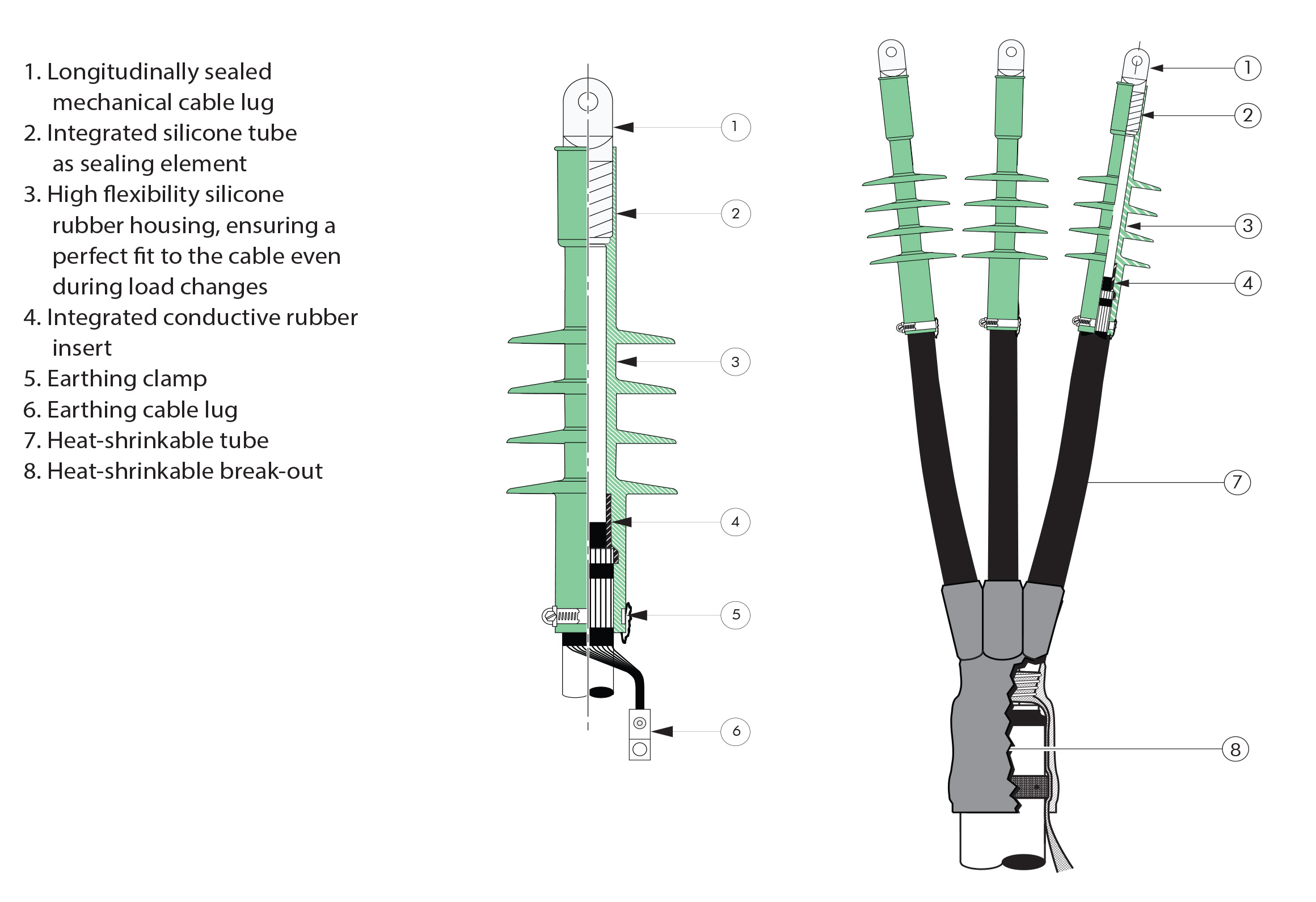

- Longitudinally sealed mechanical cable lug
- Integrated silicone tube as sealing element
- High flexibility silicone rubber housing
- Earthing clamp
- Integrated conductive silicone rubber insert
Design AFS

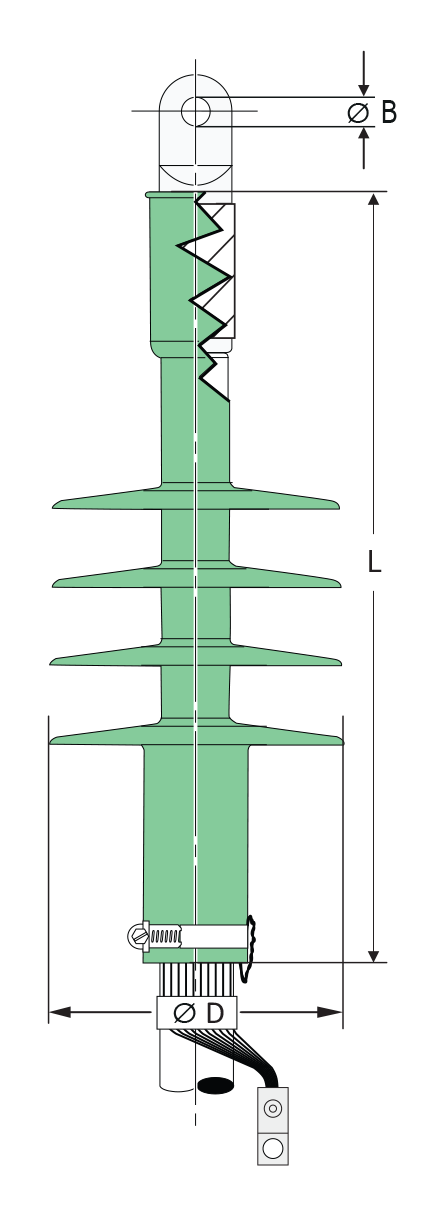

Scheme AFS
Scheme legend AFS

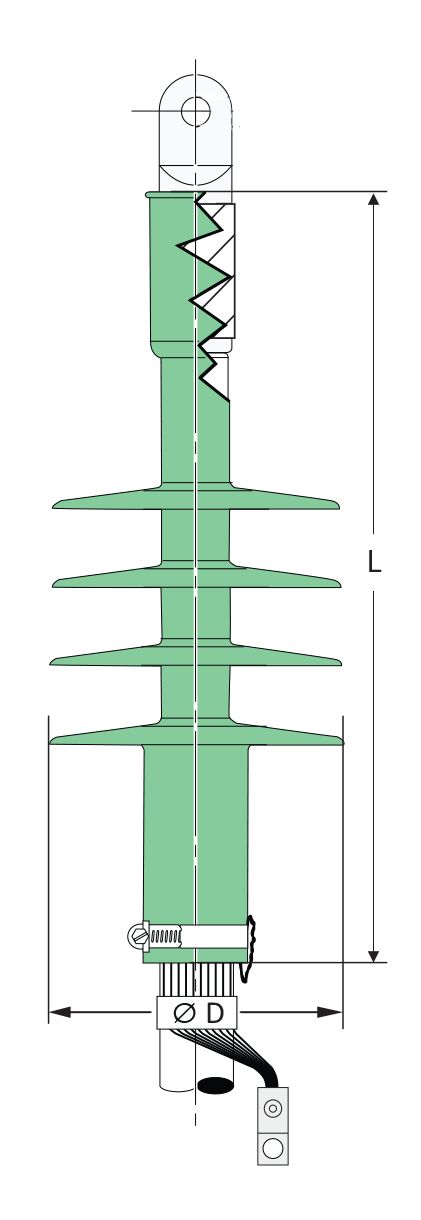

- D corresponds to the Nominal Overall Diameter
- L corresponds to the length
Kit contents AFS
A basic kit always comprises 3 termination housings, the installation instructions. Cable lugs, earthing lugs and water sealing sleeves are not inluded in the basic kit but can be ordered separatly.
Recommandations AFS
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
