CU/XLPE/CTS/PVC/SWA/PVC 6.35/11KV

Application

Electric cable with copper conductors, semiconductive conductor screen, XLPE insulation, semiconductive insulation screen, copper tape metallic screen of each core, PVC bedding, galvanized steel wires armour (SWA) and PVC outer sheath

Application

for energy networks where mechanical stresses are expected. Suitable for underground installation or in ducts

The cable is suitable for rated voltage 6/10KV according to IEC 60502-2

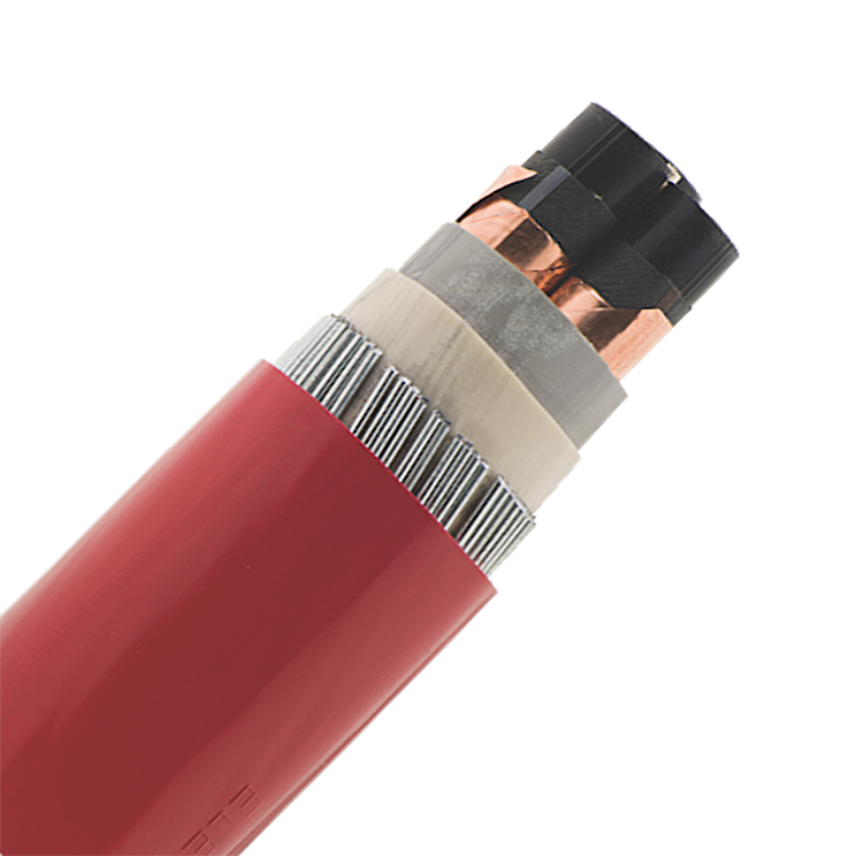

Design

1. copper conductor
2. semiconductive conductor screen
3. XLPE insulation
4. semiconductive insulation screen
5. metallic screen
6. PVC bedding
7. galvanized steel wires armour
8. PVC outer sheath

Single core xables are with Aluminium wires armour (AWA) with designation: CU/XLPE/AWA/PVC 6.35/11KV
