CU/XLPE/CTS/LSF/SWA/LSF 6.35/11 KV
CU/XLPE/CTS/LSF/SWA/LSF 6.35/11 KV
Armoured 3-core cable with XLPE insualtion. Rated voltage 6.35/11 KV
Read moreDescription
Description
Standards
-
ProductBS 7835

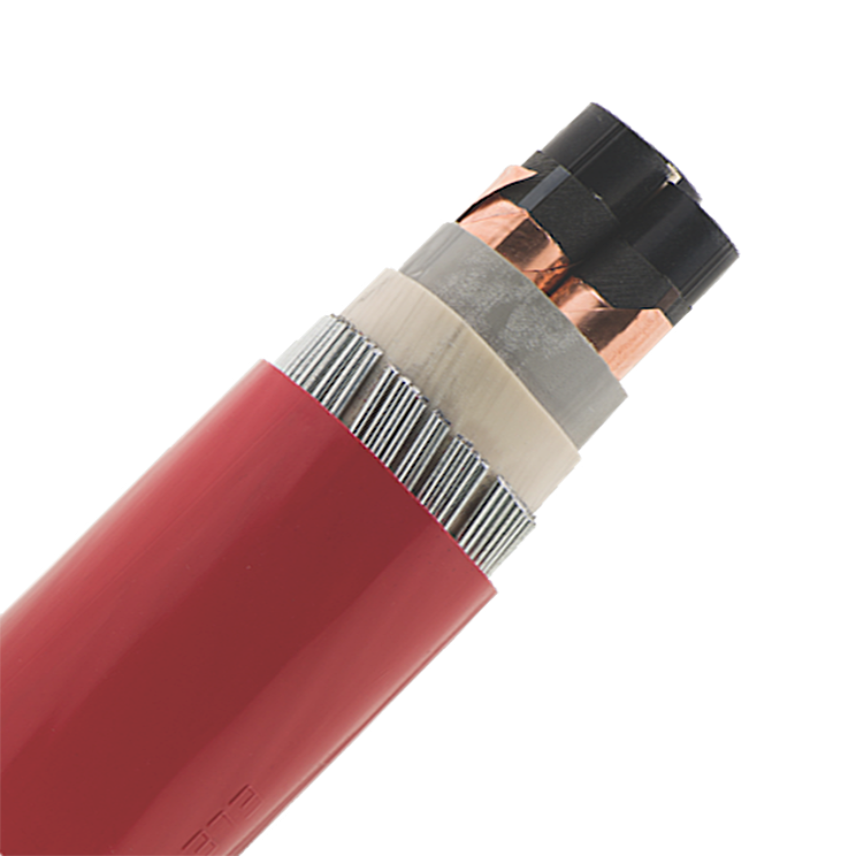

Electric cable with copper conductors, semiconductive conductor screen, XLPE insulation, semiconductive insulation screen, copper metallic screen for each core, LSF bedding, galvanized steel wires armour (SWA), LSF outer sheath
Application
suitable for installation in energy networks where for safety reasons Low Smoke and Halogen Free cables are specified. The cable is suitable for installation underground, in ducts or in air
Note: the cable is suitable for rated voltage 6/10 KV according to IEC 60502-2
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The single core MV cables 6.35/11 KV are with Aluminium wires armour (AWA)
