A2XSY 12/20KV - IEC
A2XSY 12/20KV - IEC

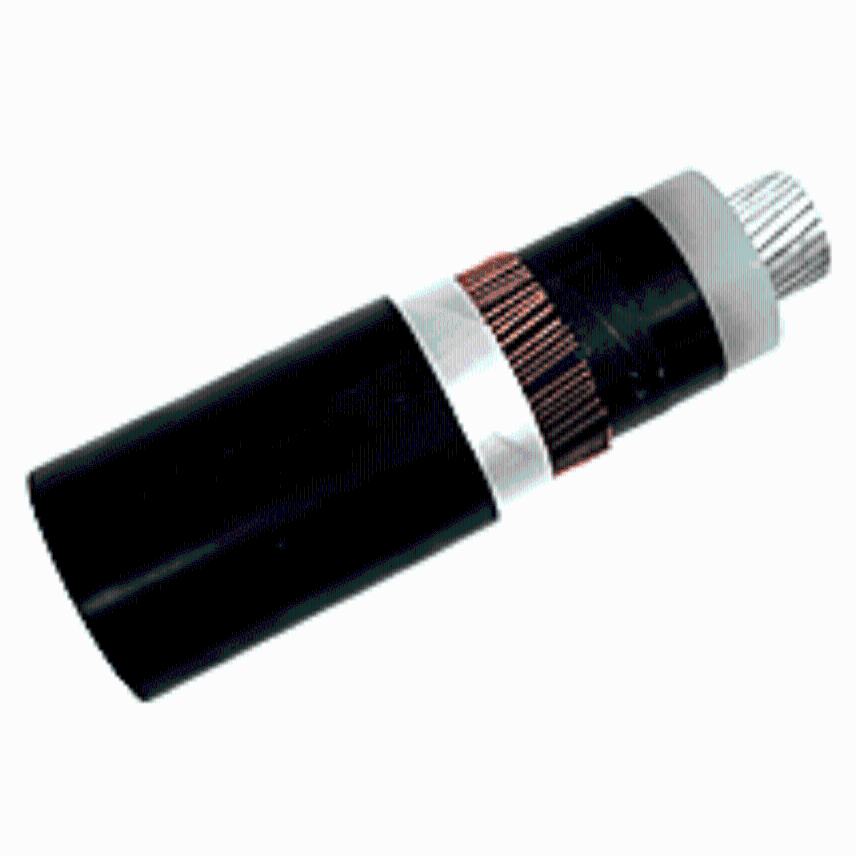

Single core MV cable XLPE insulated with PVC outer sheath. Rated voltage 12/20 KV
Read moreAL/XLPE/CWS/PVC 12/20kV 1X 50/16
Nexans ref. 13002621
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Phase Conductor Cross Section: 50 mm²
- Screen section: 16 mm²
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 29.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X 70/16
Nexans ref. 13002131
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Phase Conductor Cross Section: 70 mm²
- Screen section: 16 mm²
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 31.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X 95/16
Nexans ref. 13001027
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Phase Conductor Cross Section: 95 mm²
- Screen section: 16 mm²
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 33.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X120/16
Nexans ref. 13002130
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Phase Conductor Cross Section: 120 mm²
- Screen section: 16 mm²
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 34.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X150/25
Nexans ref. 13000042
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Phase Conductor Cross Section: 150 mm²
- Screen section: 25 mm²
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 36.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X185/25
Nexans ref. 13002132
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Phase Conductor Cross Section: 185 mm²
- Screen section: 25 mm²
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 38.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X240/25
Nexans ref. 13001979
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Phase Conductor Cross Section: 240 mm²
- Screen section: 25 mm²
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 40.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X300/25
Nexans ref. 13002133
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Phase Conductor Cross Section: 300 mm²
- Screen section: 25 mm²
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 43.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X400/35
Nexans ref. 13001903
- Packaging: Cut to length (m)
- Conductor cross-section: 400 mm²
- Phase Conductor Cross Section: 400 mm²
- Screen section: 35 mm²
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 47.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X500/35
Nexans ref. 13004071
- Packaging: Cut to length (m)
- Conductor cross-section: 500 mm²
- Phase Conductor Cross Section: 500 mm²
- Screen section: 35 mm²
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 49.0 mm
AL/XLPE/CWS/PVC 12/20kV 1X630/35
Nexans ref. 13004072
- Packaging: Cut to length (m)
- Conductor cross-section: 630 mm²
- Phase Conductor Cross Section: 630 mm²
- Screen section: 35 mm²
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 53.0 mm
Description
Description
Standards
-
ProductIEC 60502-2
Application
Single core MV cable suitable for outdoor and indoor installation, in air, in grounds, and in cable ducts.
Construction
The cable is consisted of stranded Aluminium conductor, conductor screen of semiconducting compound, XLPE insulation, insulation screen of semiconducting compound, copper wires metallic screen, PVC outer sheath.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor flexibility
Stranded class 2
Conductor shape
Circular
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper wire
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Nominal insulation thickness
5.5 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
