MV Outdoor Terminations AFN
MV Outdoor Terminations AFN

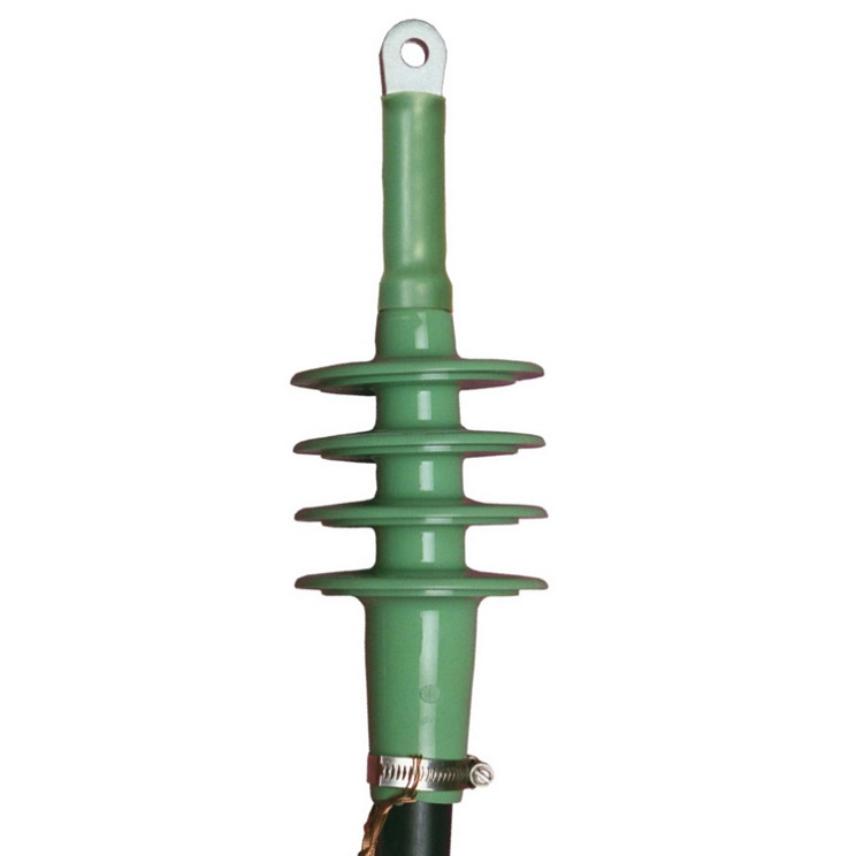

Heavy duty slip-on outdoor termination. Up to 20.8/36 (42) kV.
Read more3 x AFN 10-1
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 25 ... 95 mm²
- Creepage distance: 369 mm
- Diameter over insulation, range: 12.7 ... 21 mm
- Length: 210 mm
- Nominal overall diameter: 90.0 mm
- Number of sheds: 3
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Pollution Class: E
3 x AFN 10-2
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 120 ... 240 mm²
- Creepage distance: 365 mm
- Diameter over insulation, range: 19 ... 28.5 mm
- Length: 210 mm
- Nominal overall diameter: 96.0 mm
- Number of sheds: 3
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Pollution Class: E
3 x AFN 10-3
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 300 ... 500 mm²
- Creepage distance: 360 mm
- Diameter over insulation, range: 27 ... 37 mm
- Length: 210 mm
- Nominal overall diameter: 105.0 mm
- Number of sheds: 3
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Pollution Class: E
3 x AFN 20-1
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 35 ... 70 mm²
- Creepage distance: 480 mm
- Diameter over insulation, range: 18 ... 23.5 mm
- Length: 240 mm
- Nominal overall diameter: 100.0 mm
- Number of sheds: 4
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Pollution Class: D
3 x AFN 20-2
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 95 ... 240 mm²
- Creepage distance: 499 mm
- Diameter over insulation, range: 22.5 ... 33 mm
- Length: 240 mm
- Nominal overall diameter: 112.0 mm
- Number of sheds: 4
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Pollution Class: D
3 x AFN 20-3
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 300 ... 500 mm²
- Creepage distance: 462 mm
- Diameter over insulation, range: 31 ... 41 mm
- Length: 240 mm
- Nominal overall diameter: 118.0 mm
- Number of sheds: 4
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Pollution Class: D
3 x AFN 20-4
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 630 ... 800 mm²
- Creepage distance: 462 mm
- Diameter over insulation, range: 34 ... 46 mm
- Length: 240 mm
- Nominal overall diameter: 118.0 mm
- Number of sheds: 4
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Pollution Class: E
3 x AFN 20-4
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 400 ... 630 mm²
- Creepage distance: 462 mm
- Diameter over insulation, range: 34 ... 46 mm
- Length: 240 mm
- Nominal overall diameter: 118.0 mm
- Number of sheds: 4
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Pollution Class: D
3 x AFN 30-1
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 50 ... 70 mm²
- Creepage distance: 695 mm
- Diameter over insulation, range: 23.5 ... 29 mm
- Length: 300 mm
- Nominal overall diameter: 115.0 mm
- Number of sheds: 6
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Pollution Class: C
3 x AFN 30-2
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 95 ... 240 mm²
- Creepage distance: 694 mm
- Diameter over insulation, range: 27 ... 38 mm
- Length: 300 mm
- Nominal overall diameter: 115.0 mm
- Number of sheds: 6
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Pollution Class: C
3 x AFN 30-3
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 240 ... 400 mm²
- Creepage distance: 718 mm
- Diameter over insulation, range: 32 ... 43 mm
- Length: 300 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 6
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Pollution Class: C
3 x AFN 36-3
Nexans ref.
- Packaging: Kit
- Technology: -
- Conductor cross-section, range: 70 ... 120 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 28 ... 32 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Pollution Class: C
3 x AFN 36-4
Nexans ref.
- Packaging: Kit
- Technology: -
- Conductor cross-section, range: 150 ... 300 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 31.5 ... 41 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Pollution Class: C
3 x AFN 36-5
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 1000 ... 1000 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 39 ... 50 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Pollution Class: E
3 x AFN 36-5
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 630 ... 800 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 39 ... 50 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Pollution Class: E
3 x AFN 36-5
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 400 ... 630 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 39 ... 50 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Pollution Class: D
3 x AFN 36-5
Nexans ref.
- Packaging: Kit
- Technology: -
- Conductor cross-section, range: 400 ... 630 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 39 ... 50 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Pollution Class: C
3 x AFN 36-6
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 1200 ... 1200 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 46 ... 58 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Pollution Class: E
3 x AFN 36-6
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 1000 ... 1200 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 46 ... 58 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Pollution Class: E
3 x AFN 36-6
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 630 ... 1000 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 46 ... 58 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Pollution Class: D
3 x AFN 36-6
Nexans ref.
- Packaging: Kit
- Technology: -
- Conductor cross-section, range: 630 ... 1000 mm²
- Creepage distance: 755 mm
- Diameter over insulation, range: 46 ... 58 mm
- Length: 405 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Pollution Class: C
3 x AFNP 36-3
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 70 ... 120 mm²
- Creepage distance: 1079 mm
- Diameter over insulation, range: 28 ... 32 mm
- Length: 535 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 11
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Pollution Class: E
3 x AFNP 36-4
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 150 ... 300 mm²
- Creepage distance: 1079 mm
- Diameter over insulation, range: 31.5 ... 41 mm
- Length: 535 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 11
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Pollution Class: E
3 x AFNP 36-5
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 400 ... 630 mm²
- Creepage distance: 1079 mm
- Diameter over insulation, range: 39 ... 50 mm
- Length: 535 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 11
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Pollution Class: E
3 x AFNP 36-6
Nexans ref.
- Packaging: Kit
- Technology: Slip-0n
- Conductor cross-section, range: 630 ... 1000 mm²
- Creepage distance: 1079 mm
- Diameter over insulation, range: 46 ... 58 mm
- Length: 535 mm
- Nominal overall diameter: 127.0 mm
- Number of sheds: 11
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Pollution Class: E
Description
Description
Standards
-
ProductIEC 60502-4
-
TestCENELEC HD 629.1
-
InternationalIEC/TS 60815-3
Application
A kit of 3 terminations for use outdoors and exposed to prolonged sunshine and other weather conditions. Used to connect screened polymeric insulated cable to equipment and for the outdoor terminating on to overhead lines or busbars.
Technical characteristics
- Water sealing silicone sleeve
- High flexibility silicone housing with sheds
- Integrated conductive silicone rubber insert
- Water sealing mastic
- Earthing clamp
- Both mechanical and compression cable lugs

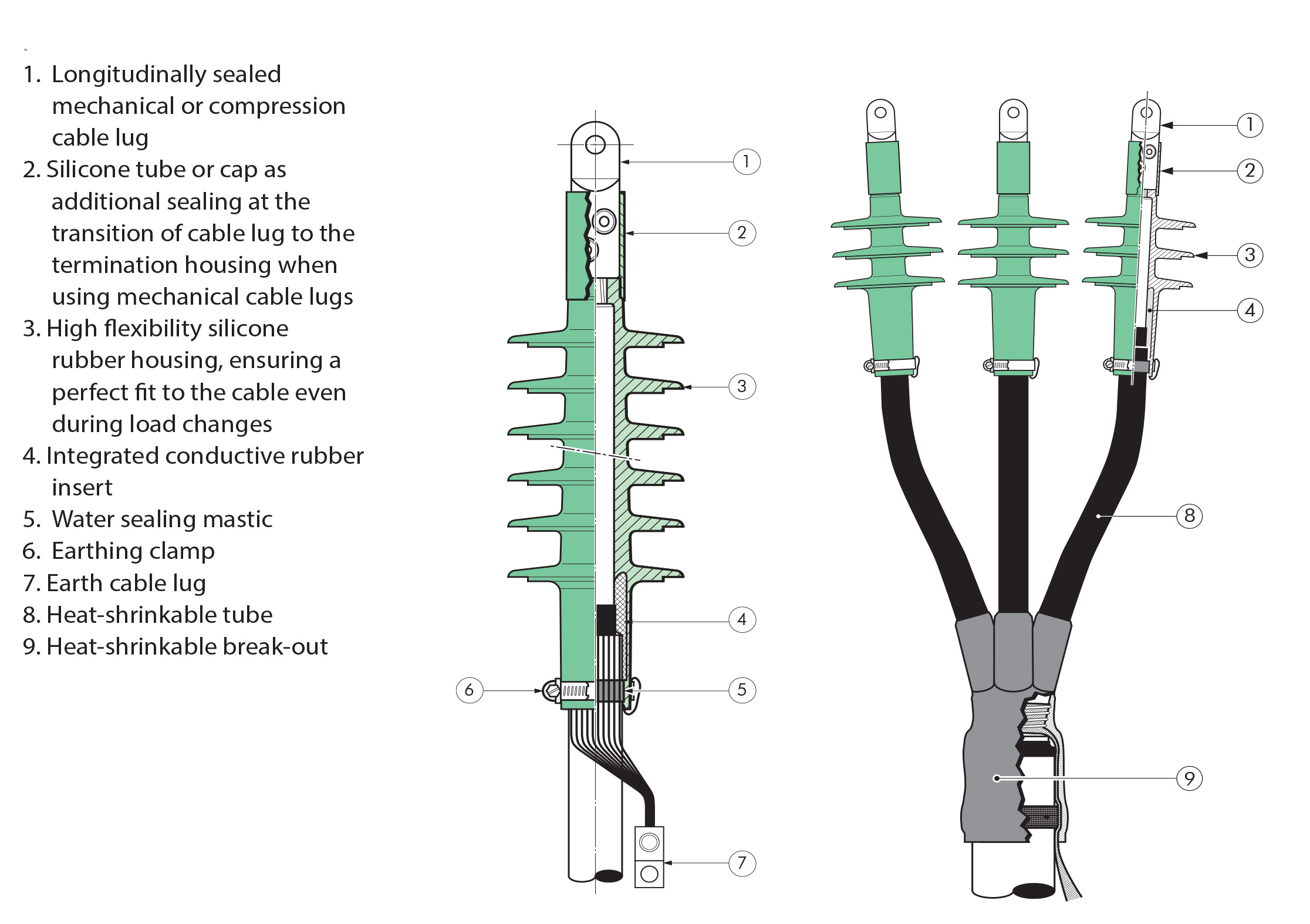

Design AFN

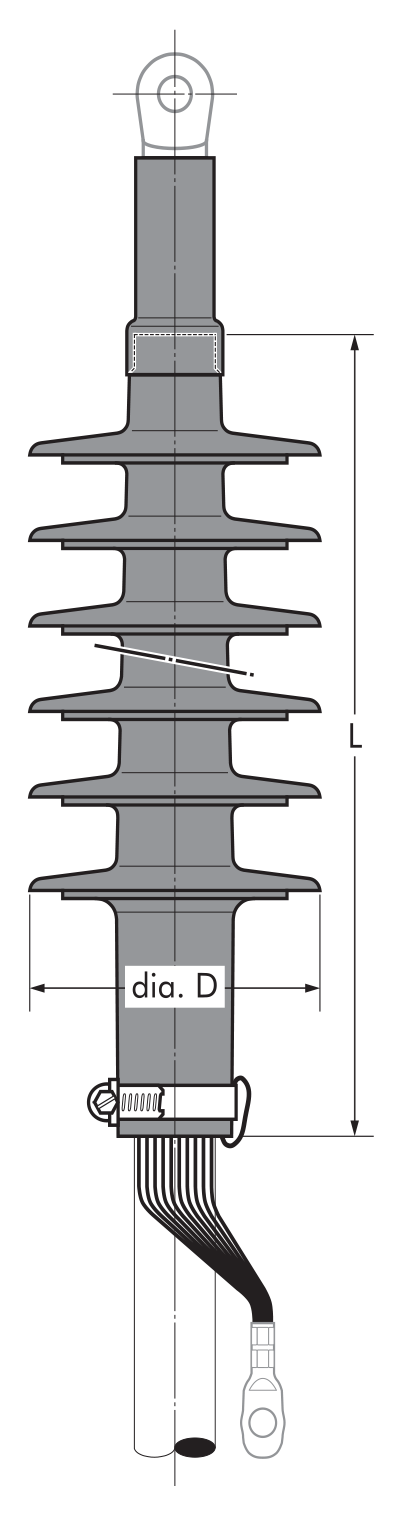

Scheme AFN
Scheme Legend AFN
- D corresponds to the Norminal Overall Diameter
- L corresponds to the length
Kit contents AFN
A basic kit always comprises 3 termination housings, the installation instructions. Cable lugs, earthing lugs and water sealing sleeves are not inluded in the basic kit but can be ordered separatly.

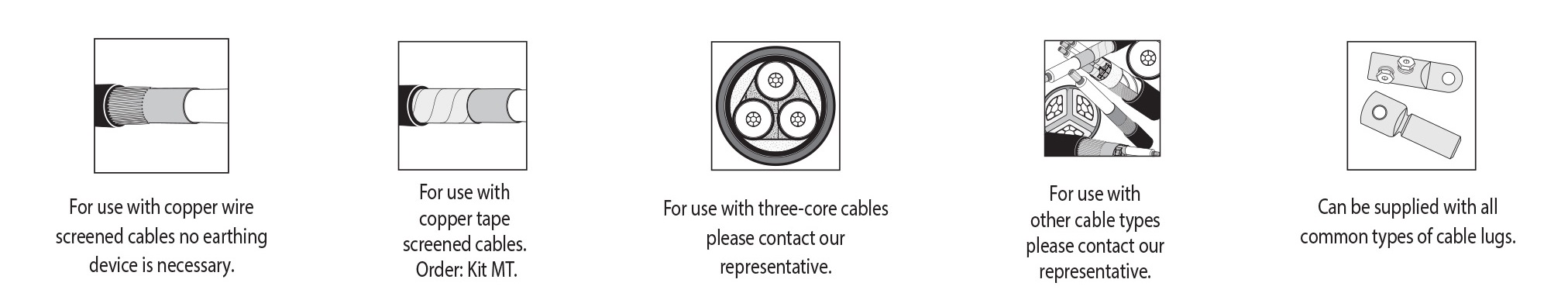

Recommandations AFN
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Field of application
Outdoor
Water sealing
Mastic
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
