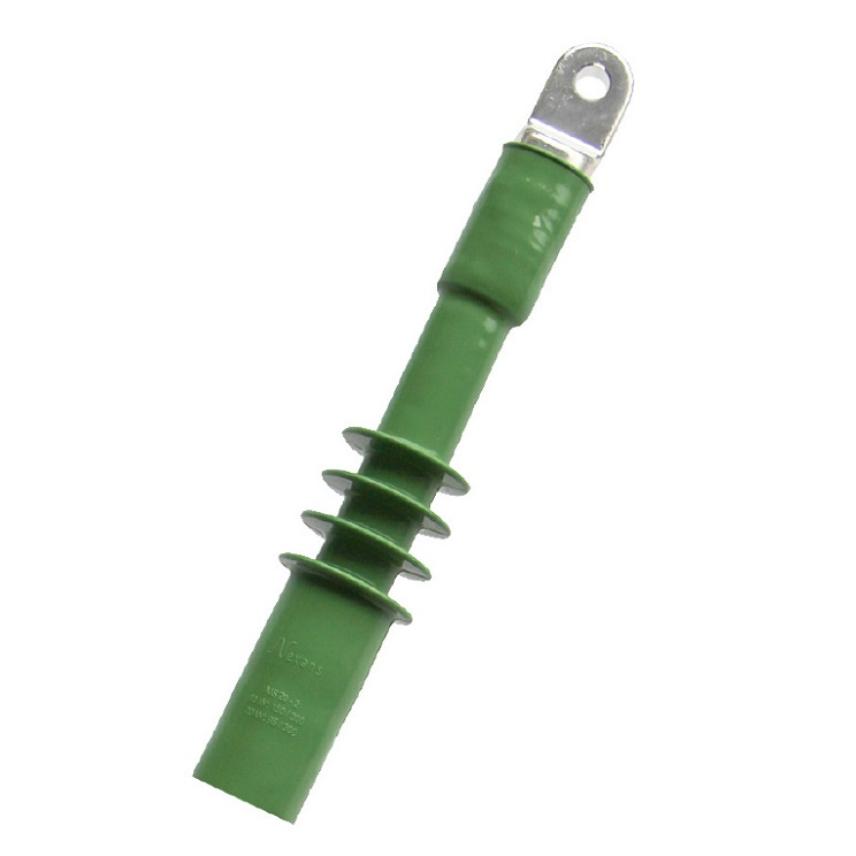

Standard duty slip-on indoor terminations. Up to 20.8/36 (42) kV.
Read more3 x AIS 20-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 150 ... 300 mm²
- Diameter over insulation, range: 20.9 ... 35 mm
- Length: 270 mm
- Nominal overall diameter: 53.0 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x AIS 20-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 20.9 ... 35 mm
- Length: 270 mm
- Nominal overall diameter: 53.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3 x AIS 20-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 29.7 ... 46 mm
- Length: 335 mm
- Nominal overall diameter: 65.0 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x AIS 20-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 29.7 ... 46 mm
- Length: 335 mm
- Nominal overall diameter: 65.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
Description
Description
Standards
-
TestCENELEC HD 629.1
Application

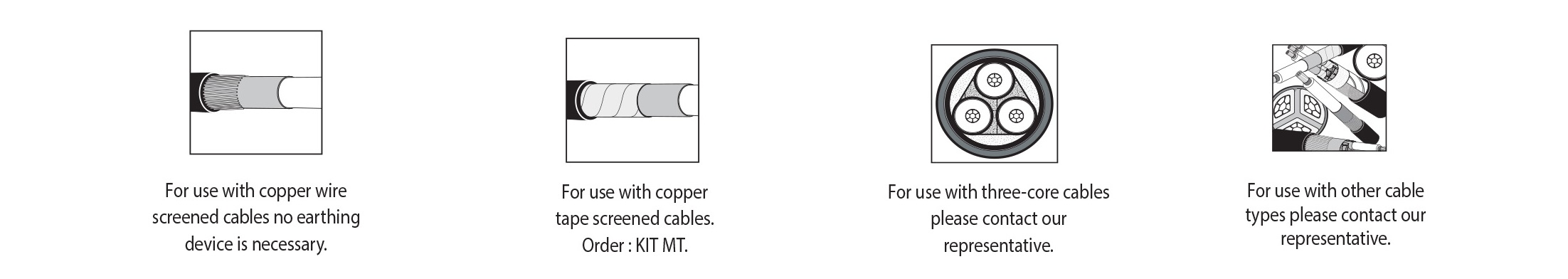

This termination is suitable for indoor installation on polymeric insulated medium voltage cables with extruded easy strip conductive screen or bonded extruded conductive screen.
Technical characteristics
- Longitudinally sealed mechanical cable lug
- Integrated silicone tube as sealing element
- High flexibility silicone rubber housing
- Integrated conductive silicone rubber insert
Nota Bene
For cross sections 300 mm2 additional sealing elements are required.

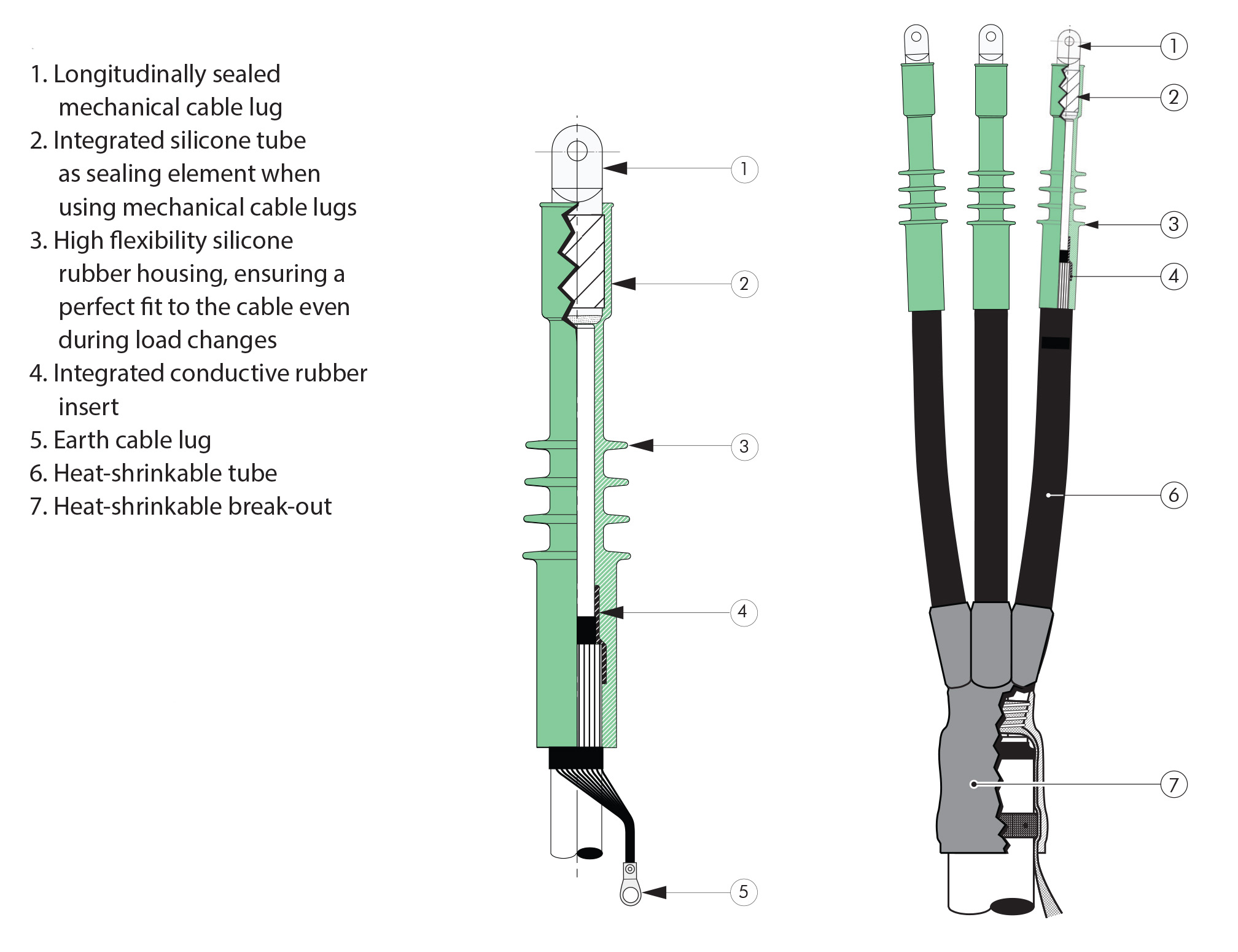

Design AIS

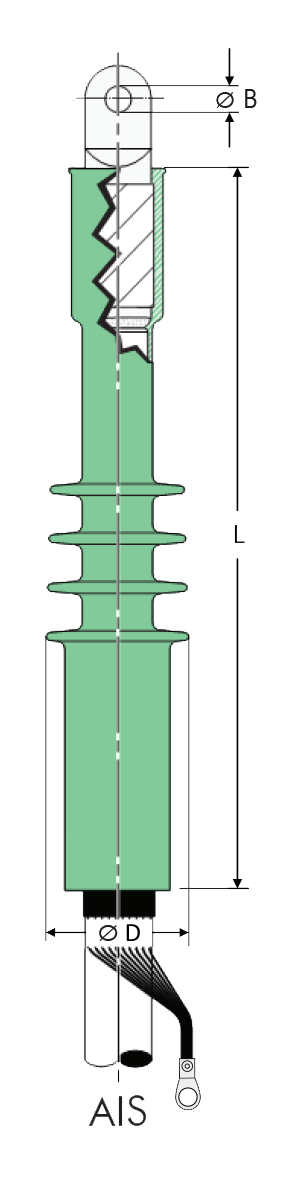

Scheme AIS
Scheme legend AIS
- D corresponds to the nominal overall diameter
- L corresponds to the length
Kit contents AIS
A basic kit always comprises 3 termination housings, the installation instructions. Cable lugs, earthing lugs and water sealing sleeves are not inluded in the basic kit but can be ordered separatly.
Recommandations AIS
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
