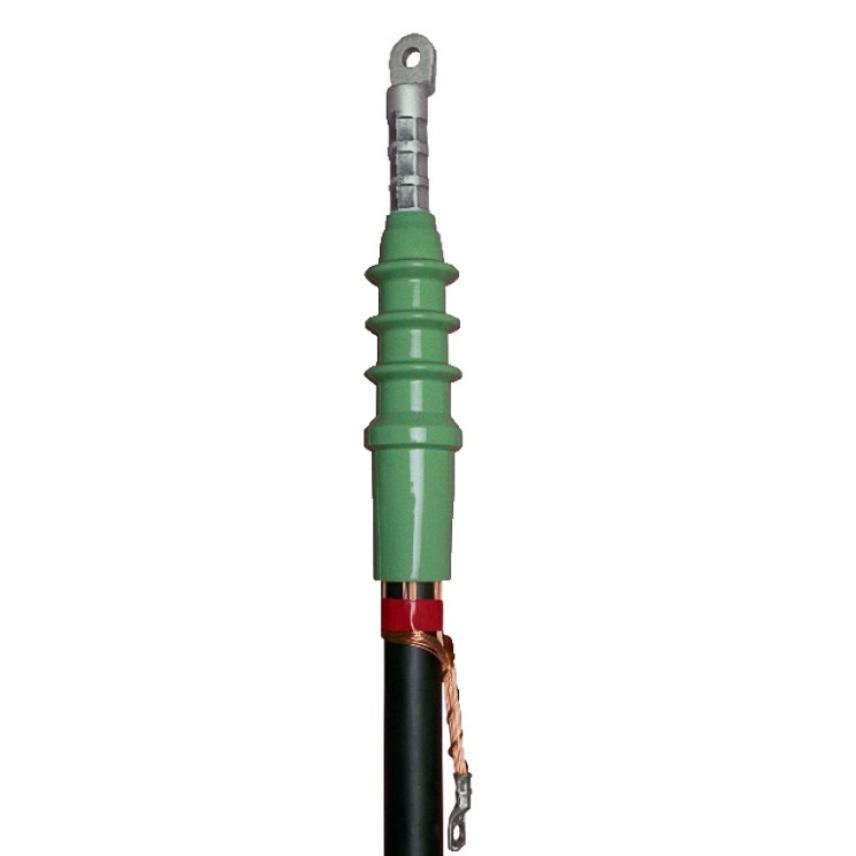

Heavy duty slip-on indoor terminations. Up to 12.7/22 (24) kV.
Read more3 x AIN 10-1
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 12.7 ... 21 mm
- Length: 150 mm
- Nominal overall diameter: 37.0 mm
- Number of sheds: 2
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x AIN 10-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 120 ... 240 mm²
- Diameter over insulation, range: 19 ... 28.5 mm
- Length: 150 mm
- Nominal overall diameter: 43.0 mm
- Number of sheds: 2
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x AIN 10-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 300 ... 500 mm²
- Diameter over insulation, range: 27 ... 37 mm
- Length: 150 mm
- Nominal overall diameter: 60.0 mm
- Number of sheds: 2
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x AIN 20-1
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 35 ... 70 mm²
- Diameter over insulation, range: 18 ... 23.5 mm
- Length: 225 mm
- Nominal overall diameter: 47.0 mm
- Number of sheds: 3
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3 x AIN 20-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 95 ... 240 mm²
- Diameter over insulation, range: 22.5 ... 33 mm
- Length: 225 mm
- Nominal overall diameter: 56.0 mm
- Number of sheds: 3
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3 x AIN 20-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 300 ... 500 mm²
- Diameter over insulation, range: 31 ... 41 mm
- Length: 225 mm
- Nominal overall diameter: 68.0 mm
- Number of sheds: 3
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3 x AIN 20-4
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 630 ... 800 mm²
- Diameter over insulation, range: 34 ... 46 mm
- Length: 225 mm
- Nominal overall diameter: 68.0 mm
- Number of sheds: 3
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x AIN 20-4
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 46 mm
- Length: 225 mm
- Nominal overall diameter: 68.0 mm
- Number of sheds: 3
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3 x AIN 30-1
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 50 ... 70 mm²
- Diameter over insulation, range: 23.5 ... 29 mm
- Length: 300 mm
- Nominal overall diameter: 74.0 mm
- Number of sheds: 6
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3 x AIN 30-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 95 ... 240 mm²
- Diameter over insulation, range: 27 ... 38 mm
- Length: 300 mm
- Nominal overall diameter: 74.0 mm
- Number of sheds: 6
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3 x AIN 30-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 240 ... 400 mm²
- Diameter over insulation, range: 32 ... 43 mm
- Length: 300 mm
- Nominal overall diameter: 81.0 mm
- Number of sheds: 6
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3 x AIN 36-4
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 150 ... 300 mm²
- Diameter over insulation, range: 31.5 ... 41 mm
- Length: 405 mm
- Nominal overall diameter: 98.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
3 x AIN 36-5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 1000 ... 1000 mm²
- Diameter over insulation, range: 39 ... 50 mm
- Length: 405 mm
- Nominal overall diameter: 98.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x AIN 36-5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 630 ... 800 mm²
- Diameter over insulation, range: 39 ... 50 mm
- Length: 405 mm
- Nominal overall diameter: 98.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3 x AIN 36-5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 50 mm
- Length: 405 mm
- Nominal overall diameter: 98.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3 x AIN 36-5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 50 mm
- Length: 405 mm
- Nominal overall diameter: 98.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
3 x AIN 36-6
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 1200 ... 1200 mm²
- Diameter over insulation, range: 46 ... 58 mm
- Length: 405 mm
- Nominal overall diameter: 98.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x AIN 36-6
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 1000 ... 1200 mm²
- Diameter over insulation, range: 46 ... 58 mm
- Length: 405 mm
- Nominal overall diameter: 98.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3 x AIN 36-6
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 630 ... 1000 mm²
- Diameter over insulation, range: 46 ... 58 mm
- Length: 405 mm
- Nominal overall diameter: 98.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
3 x AIN 36-6
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 630 ... 1000 mm²
- Diameter over insulation, range: 46 ... 58 mm
- Length: 405 mm
- Nominal overall diameter: 98.0 mm
- Number of sheds: 7
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
Description
Description
Standards
-
ProductIEC 60502-4
-
TestCENELEC HD 629.1
Application
A kit of 3 terminations for use indoors in controlled environmental conditions and subject to light condensation. They provide a simple and quick method of stress relieving on screened polymeric cables.
Technical characteristics
- High flexibility silicone rubber housing
- Both mechanical and compression cable lugs
- Integrated conductive silicone rubber insert
Design AIN

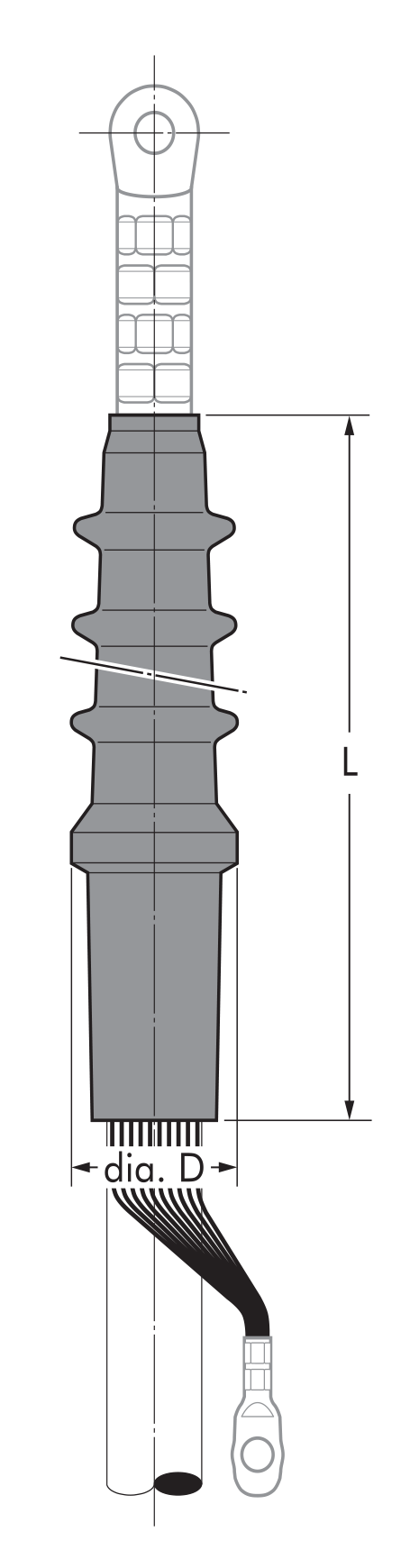

Scheme AIN
Scheme Legend AIN
- D corresponds to the nominal overall diameter
- L corresponds to the length
Kit contents AIN
A basic kit always comprises 3 termination housings, the installation instructions. Cable lugs, earthing lugs and water sealing sleeves are not inluded in the basic kit but can be ordered separatly.
Recommandations AIN
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Field of application
Indoor
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
