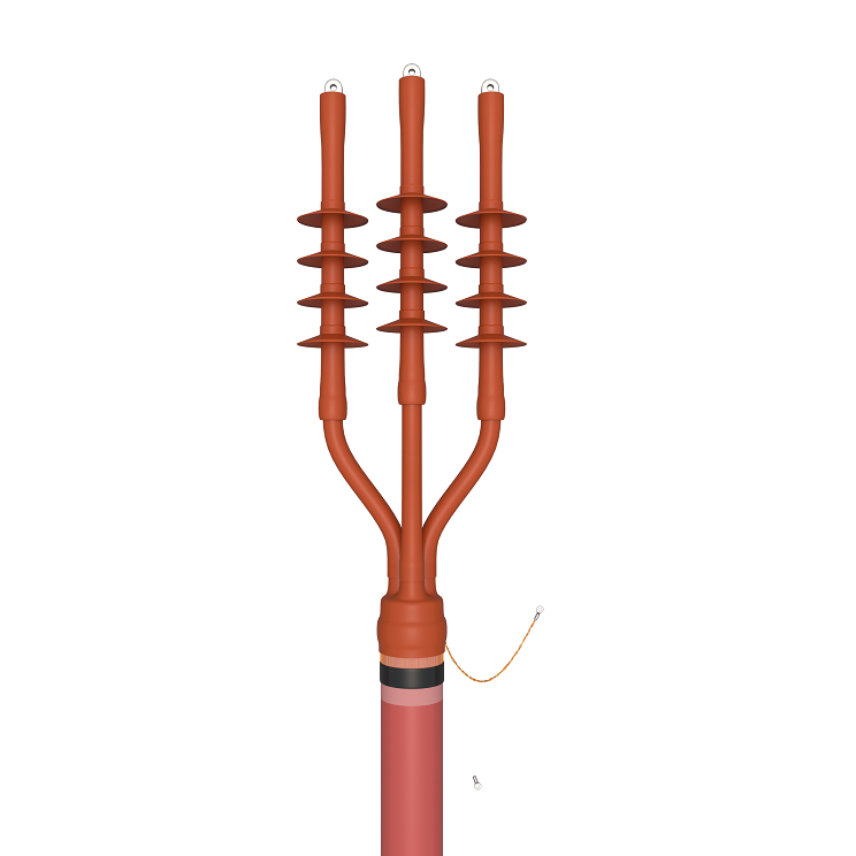

Heat-shrink MV outdoor terminations for non armored three core polymeric cables with copper wire screen. Up to 20,8/36 (42) kV.
Read more12MONOe3.240CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 16 ... 30 mm
- Length: 690 mm
- Maximum outer diameter: 72.0 mm
- Minimum outer diameter: 46.0 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
12MONOe3.300CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 18 ... 32 mm
- Length: 690 mm
- Maximum outer diameter: 82.0 mm
- Minimum outer diameter: 48.0 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
12MONOe3.400CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 22 ... 36 mm
- Length: 690 mm
- Maximum outer diameter: 84.0 mm
- Minimum outer diameter: 58.0 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
12MONOe3.95CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 12 ... 20 mm
- Length: 690 mm
- Maximum outer diameter: 56.0 mm
- Minimum outer diameter: 38.0 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
24MONOe3.240CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 18 ... 34 mm
- Length: 800 mm
- Maximum outer diameter: 76.0 mm
- Minimum outer diameter: 48.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24MONOe3.300CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 20 ... 38 mm
- Length: 800 mm
- Maximum outer diameter: 84.0 mm
- Minimum outer diameter: 52.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24MONOe3.400CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 25 ... 40 mm
- Length: 800 mm
- Maximum outer diameter: 90.0 mm
- Minimum outer diameter: 62.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24MONOe3.95CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 14 ... 26 mm
- Length: 800 mm
- Maximum outer diameter: 62.0 mm
- Minimum outer diameter: 40.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
36MONOe3.240CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1000 mm
- Maximum outer diameter: 90.0 mm
- Minimum outer diameter: 64.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36MONOe3.300CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 24 ... 42 mm
- Length: 1000 mm
- Maximum outer diameter: 94.0 mm
- Minimum outer diameter: 68.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36MONOe3.400CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 1000 mm
- Maximum outer diameter: 102.0 mm
- Minimum outer diameter: 78.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36MONOe3.95CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 32 mm
- Length: 1000 mm
- Maximum outer diameter: 76.0 mm
- Minimum outer diameter: 58.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
42MONOe3.240CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 26 ... 42 mm
- Length: 1100 mm
- Maximum outer diameter: 110.0 mm
- Minimum outer diameter: 66.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42MONOe3.300CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 1100 mm
- Maximum outer diameter: 120.0 mm
- Minimum outer diameter: 70.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42MONOe3.400CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 32 ... 48 mm
- Length: 1100 mm
- Maximum outer diameter: 130.0 mm
- Minimum outer diameter: 80.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42MONOe3.95CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 34 mm
- Length: 1100 mm
- Maximum outer diameter: 90.0 mm
- Minimum outer diameter: 60.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
Description
Description
Standards
-
ProductIEC 60502-4
-
TestCENELEC HD 629.1
Application
The "MONOe3 CW" outdoor terminations are designed for not armored three core polymeric cables with common Cu wire screen.
Technical characteristics
The "MONOe3 CW" outdoor terminations are designed for max system voltages of 42 kV.
Easy, quick to install, reducing installation time and errors.
The kit consists of a stress control mastic pad, a co extruded dual wall tube and red anti-tracking sealing mastic.
Red anti-tracking break-out and red anti-tracking tubes "GT2" with adjustable length "D" are included in the kit.
Anti-tracking rain sheds are supplied to withstand outdoor enviroments.
The design accommodates various conductor lugs.
MC types are supplied with "GPH®" mechanical conductor lugs.
Benefits heat-shrink terminations
- Reliable stress control : In order to tackle and compensate the negative effects of the very short lengths of the Nexans heat shrinkable terminations, a combination of two different stress control material is used. One built in stress control co-extruded inner layer covers the full inner length of the tube. and one MACD mastic.
- Single tube design : The MONO terminations are simply designed but have superior performances. They are made with only one tube. This tube is a co-extruded tube, with an outer anti tracking layer and an inner stress control layer. Coextrusion manufacturing method brings benefits of reduced installation time and errors at the end user side.
- Fits all projects : Whatever the situation is, Nexans terminations will fit with your project. Made for both indoor and outdoor application, they cover a wide range of cross sections. Available for heavy or standard duty, for single or three core. The outer layer of all heat shrinkable Nexans terminations is made out of an antitracking material designed for usage in harshest environments.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Armour type
Unarmoured
Protection
Butilic mastic
Screen
Copper wire
Usage characteristics
Usage characteristics
Field of application
Outdoor
Water sealing
Mastic
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
