MV Indoor Terminations 52TTGI1

Products

52TTGI1.1200i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 630 ... 1200 mm²
  • Diameter over insulation, range: 46 ... 64 mm
  • Length: 900 mm
  • Maximum outer diameter: 70.0 mm
  • Minimum outer diameter: 52.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



52TTGI1.240i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 28 ... 40 mm
  • Length: 900 mm
  • Maximum outer diameter: 46.0 mm
  • Minimum outer diameter: 32.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



52TTGI1.400i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 32 ... 46 mm
  • Length: 900 mm
  • Maximum outer diameter: 50.0 mm
  • Minimum outer diameter: 36.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



52TTGI1.630i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 38 ... 52 mm
  • Length: 900 mm
  • Maximum outer diameter: 56.0 mm
  • Minimum outer diameter: 44.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



52TTGI1.95i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 26 ... 32 mm
  • Length: 900 mm
  • Maximum outer diameter: 44.0 mm
  • Minimum outer diameter: 30.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



DO NOT DELETE

Nexans ref.

  • Conductor cross-section, range: 0 ... 0 mm²
  • Diameter over insulation, range: 0 ... 0 mm
  • Length: 0 mm
  • Maximum outer diameter: 0.0 mm
  • Minimum outer diameter: 0.0 mm
  • Rated Voltage Uo/U (Um): N/A



Description

Description

Standards

  • Test
    IEC 60840

Application

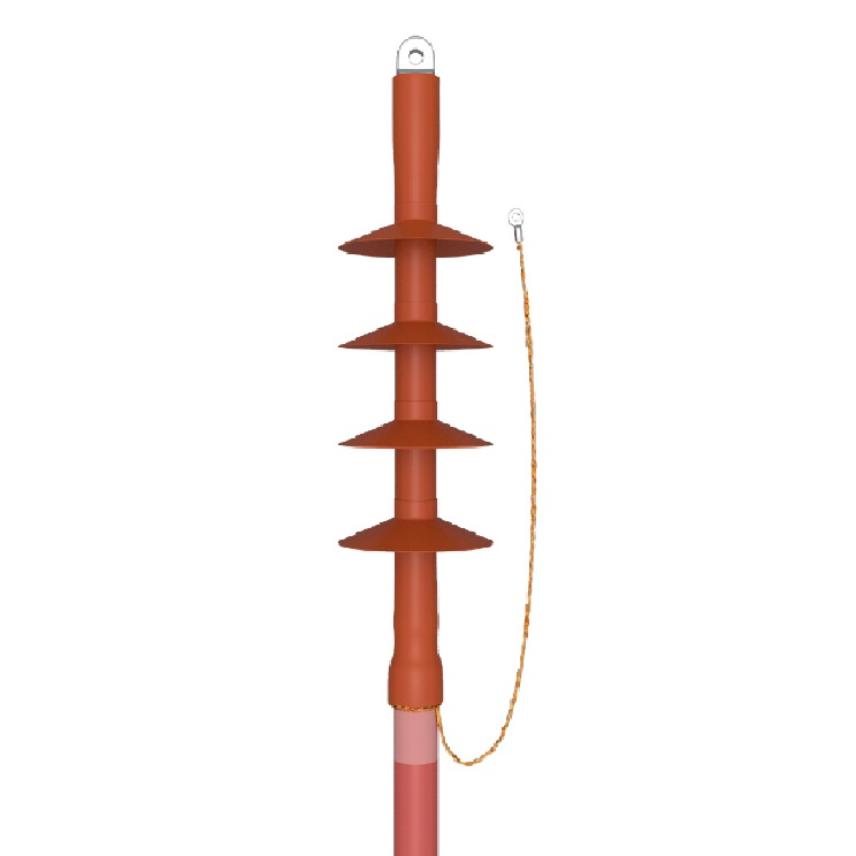

The "52TTGI1" terminations are designed for single core polymeric cables.

Technical characteristics

A stress control patch is applied at the screen cut of the termination and helps to control the field together with stress control tubing.
Semiconductive tubing creates a bridge for leakage currents placed onto and covering the screen wires or earth braid.
Another layer of stress control mastic covers the top end of the semiconductive tubing.
Red anti-tracking mastic is wrapped onto the top end of the tubing.
The lug and cable outer sheath is sealed with anti-tracking mastic.
Heavy wall anti-tracking tube and anti-tracking rain sheds complete the termination.
A solderless roll force spring and an earthing braid are included in the kit (type Ai).
The design accommodates various conductor lugs.
MC types are supplied with "GPH®" mechanical conductor lugs.
For cable with Al foil screen please ask to our sales representative.

Benefits heat-shrink terminations

  • Reliable stress control : In order to tackle and compensate the negative effects of the very short lengths of the Nexans heat shrinkable terminations, a combination of two different stress control material is used. One built in stress control co-extruded inner layer covers the full inner length of the tube. and one MACD mastic.
  • Single tube design : The MONO terminations are simply designed but have superior performances. They are made with only one tube. This tube is a co-extruded tube, with an outer anti tracking layer and an inner stress control layer. Coextrusion manufacturing method brings benefits of reduced installation time and errors at the end user side.
  • Fits all projects : Whatever the situation is, Nexans terminations will fit with your project. Made for both indoor and outdoor application, they cover a wide range of cross sections. Available for heavy or standard duty, for single or three core. The outer layer of all heat shrinkable Nexans terminations is made out of an antitracking material designed for usage in harshest environments.



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Protection
Butilic mastic
Screen
Copper wire

Usage characteristics

Usage characteristics

Field of application
Indoor
Water sealing
Mastic

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
