MV Indoor Terminations TTGI1 Z
MV Indoor Terminations TTGI1 Z

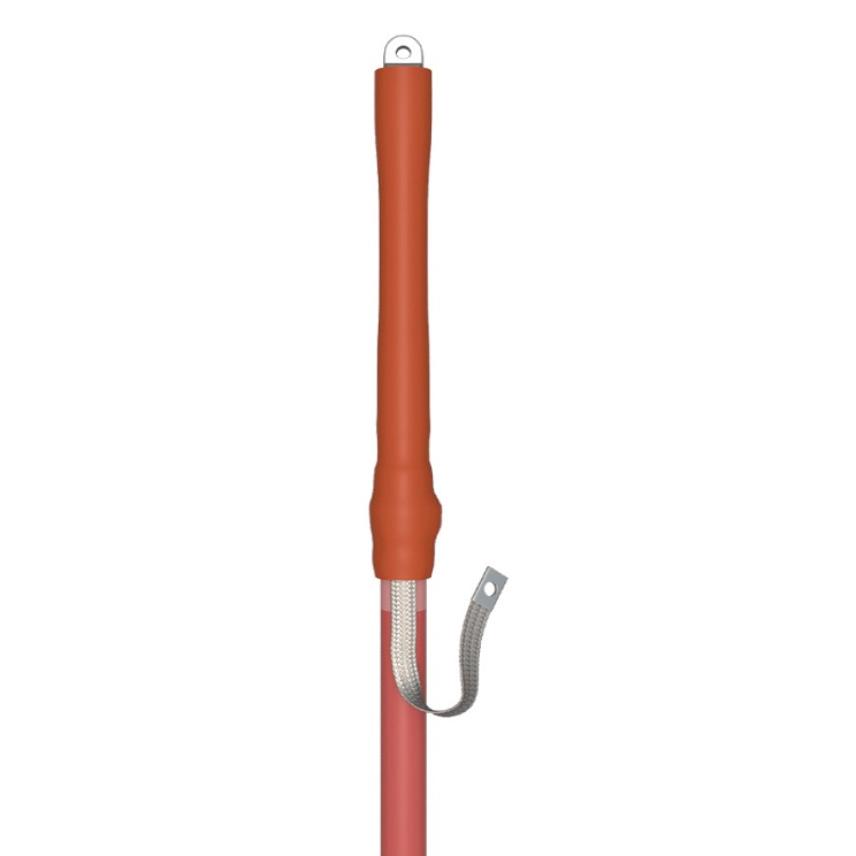

Heat-shrink MV indoor termination for single core polymeric cables with Cu wire/tape screen, Al wire/tape armor. Up to 20,8/36 (42) kV.
Read more17TTGI1.1000Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 630 ... 1000 mm²
- Diameter over insulation, range: 36 ... 50 mm
- Length: 540 mm
- Maximum outer diameter: 68.0 mm
- Minimum outer diameter: 50.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17TTGI1.150Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 150 mm²
- Diameter over insulation, range: 16 ... 28 mm
- Length: 540 mm
- Maximum outer diameter: 40.0 mm
- Minimum outer diameter: 26.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17TTGI1.400Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 18 ... 32 mm
- Length: 540 mm
- Maximum outer diameter: 46.0 mm
- Minimum outer diameter: 34.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17TTGI1.50Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 50 mm²
- Diameter over insulation, range: 12 ... 18 mm
- Length: 540 mm
- Maximum outer diameter: 28.0 mm
- Minimum outer diameter: 18.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17TTGI1.630Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 20 ... 36 mm
- Length: 540 mm
- Maximum outer diameter: 56.0 mm
- Minimum outer diameter: 34.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
24TTGI1.1000Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 500 ... 1000 mm²
- Diameter over insulation, range: 30 ... 54 mm
- Length: 580 mm
- Maximum outer diameter: 72.0 mm
- Minimum outer diameter: 44.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24TTGI1.185Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 18 ... 34 mm
- Length: 580 mm
- Maximum outer diameter: 44.0 mm
- Minimum outer diameter: 28.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24TTGI1.400Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28 ... 40 mm
- Length: 580 mm
- Maximum outer diameter: 52.0 mm
- Minimum outer diameter: 34.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24TTGI1.630Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 25 ... 46 mm
- Length: 580 mm
- Maximum outer diameter: 62.0 mm
- Minimum outer diameter: 42.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24TTGI1.95Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 14 ... 26 mm
- Length: 580 mm
- Maximum outer diameter: 38.0 mm
- Minimum outer diameter: 20.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
36TTGI1.1000Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 500 ... 1000 mm²
- Diameter over insulation, range: 44 ... 56 mm
- Length: 680 mm
- Maximum outer diameter: 78.0 mm
- Minimum outer diameter: 52.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36TTGI1.120Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 35 ... 120 mm²
- Diameter over insulation, range: 20 ... 32 mm
- Length: 680 mm
- Maximum outer diameter: 44.0 mm
- Minimum outer diameter: 30.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36TTGI1.300Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 22 ... 40 mm
- Length: 680 mm
- Maximum outer diameter: 54.0 mm
- Minimum outer diameter: 36.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36TTGI1.630Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 300 ... 630 mm²
- Diameter over insulation, range: 40 ... 52 mm
- Length: 680 mm
- Maximum outer diameter: 66.0 mm
- Minimum outer diameter: 42.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
42TTGI1.1000Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 630 ... 1000 mm²
- Diameter over insulation, range: 44 ... 62 mm
- Length: 820 mm
- Maximum outer diameter: 82.0 mm
- Minimum outer diameter: 54.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42TTGI1.120Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 120 mm²
- Diameter over insulation, range: 22 ... 36 mm
- Length: 820 mm
- Maximum outer diameter: 46.0 mm
- Minimum outer diameter: 32.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42TTGI1.300Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28 ... 38 mm
- Length: 820 mm
- Maximum outer diameter: 56.0 mm
- Minimum outer diameter: 38.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42TTGI1.630Zi
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 42 ... 56 mm
- Length: 820 mm
- Maximum outer diameter: 70.0 mm
- Minimum outer diameter: 42.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
Description
Description
Standards
-
ProductIEC 60502-4
-
TestCENELEC HD 629.1
Application
"TTGI1 Zi" heat-shrink medium voltage indoor terminations for single core polymeric insulated cables with either Cu wire screen or Cu tape screen with aluminium wire/ tape armor.
Technical characteristics
The "TTGI Zi" indoor terminations utilize stress control tubing with stress grading mastic to control the electric field. The cut of the semi-conductive screen on the termination is covered by stress control mastic strip, acting as both stress control and void filler. The stress control tubing completes the control of the electric field.
The lug barrel is covered with anti-tracking mastic to create complete
environmental seal.
Anti-tracking mastic is also used to seal the earth/armor connection.
"GT2" anti-tracking tube completes the termination and covers armor connection.
The design accommodates various conductor lugs.
MC types are supplied with "GPH®" mechanical conductor lugs.
Benefits heat-shrink terminations
- Reliable stress control : In order to tackle and compensate the negative effects of the very short lengths of the Nexans heat shrinkable terminations, a combination of two different stress control material is used. One built in stress control co-extruded inner layer covers the full inner length of the tube. and one MACD mastic.
- Single tube design : The MONO terminations are simply designed but have superior performances. They are made with only one tube. This tube is a co-extruded tube, with an outer anti tracking layer and an inner stress control layer. Coextrusion manufacturing method brings benefits of reduced installation time and errors at the end user side.
- Fits all projects : Whatever the situation is, Nexans terminations will fit with your project. Made for both indoor and outdoor application, they cover a wide range of cross sections. Available for heavy or standard duty, for single or three core. The outer layer of all heat shrinkable Nexans terminations is made out of an antitracking material designed for usage in harshest environments.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
