MV Indoor Terminations MONOi AI

Products

3X12MONOi1.300Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 18 ... 32 mm
  • Length: 300 mm
  • Maximum outer diameter: 44.0 mm
  • Minimum outer diameter: 26.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3X12MONOi1.400Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 22 ... 36 mm
  • Length: 350 mm
  • Maximum outer diameter: 48.0 mm
  • Minimum outer diameter: 28.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3X12MONOi1.630Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 26 ... 42 mm
  • Length: 350 mm
  • Maximum outer diameter: 54.0 mm
  • Minimum outer diameter: 36.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3X12MONOi1.95Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 12 ... 20 mm
  • Length: 300 mm
  • Maximum outer diameter: 34.0 mm
  • Minimum outer diameter: 20.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3X24MONOi1.1200Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 1000 ... 1200 mm²
  • Diameter over insulation, range: 46 ... 60 mm
  • Length: 450 mm
  • Maximum outer diameter: 66.0 mm
  • Minimum outer diameter: 52.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3X24MONOi1.300Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 20 ... 38 mm
  • Length: 350 mm
  • Maximum outer diameter: 50.0 mm
  • Minimum outer diameter: 32.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3X24MONOi1.400Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 25 ... 40 mm
  • Length: 400 mm
  • Maximum outer diameter: 52.0 mm
  • Minimum outer diameter: 36.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3X24MONOi1.630Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 30 ... 46 mm
  • Length: 400 mm
  • Maximum outer diameter: 60.0 mm
  • Minimum outer diameter: 38.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x12MONOi1.1000Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 34 ... 52 mm
  • Length: 400 mm
  • Maximum outer diameter: 58.0 mm
  • Minimum outer diameter: 42.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x12MONOi1.1200Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 1000 ... 1200 mm²
  • Diameter over insulation, range: 44 ... 58 mm
  • Length: 400 mm
  • Maximum outer diameter: 64.0 mm
  • Minimum outer diameter: 48.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x12MONOi1.240Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 16 ... 30 mm
  • Length: 300 mm
  • Maximum outer diameter: 40.0 mm
  • Minimum outer diameter: 24.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



3x24MONOi1.1000Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 36 ... 56 mm
  • Length: 400 mm
  • Maximum outer diameter: 64.0 mm
  • Minimum outer diameter: 44.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x24MONOi1.240Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 18 ... 34 mm
  • Length: 350 mm
  • Maximum outer diameter: 44.0 mm
  • Minimum outer diameter: 30.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x24MONOi1.95Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 14 ... 26 mm
  • Length: 350 mm
  • Maximum outer diameter: 42.0 mm
  • Minimum outer diameter: 24.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



3x36MONOi1.1000Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 42 ... 60 mm
  • Length: 500 mm
  • Maximum outer diameter: 70.0 mm
  • Minimum outer diameter: 48.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x36MONOi1.1200Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 1000 ... 1200 mm²
  • Diameter over insulation, range: 48 ... 64 mm
  • Length: 500 mm
  • Maximum outer diameter: 72.0 mm
  • Minimum outer diameter: 54.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x36MONOi1.240Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 22 ... 38 mm
  • Length: 450 mm
  • Maximum outer diameter: 52.0 mm
  • Minimum outer diameter: 36.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x36MONOi1.300Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 24 ... 42 mm
  • Length: 450 mm
  • Maximum outer diameter: 54.0 mm
  • Minimum outer diameter: 38.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x36MONOi1.400Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 28 ... 46 mm
  • Length: 450 mm
  • Maximum outer diameter: 60.0 mm
  • Minimum outer diameter: 42.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x36MONOi1.630Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 32 ... 52 mm
  • Length: 500 mm
  • Maximum outer diameter: 66.0 mm
  • Minimum outer diameter: 44.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x36MONOi1.95Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 20 ... 32 mm
  • Length: 450 mm
  • Maximum outer diameter: 44.0 mm
  • Minimum outer diameter: 30.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



3x42MONOi1.1000Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 44 ... 62 mm
  • Length: 550 mm
  • Maximum outer diameter: 74.0 mm
  • Minimum outer diameter: 50.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



3x42MONOi1.1200Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 1000 ... 1200 mm²
  • Diameter over insulation, range: 50 ... 66 mm
  • Length: 550 mm
  • Maximum outer diameter: 76.0 mm
  • Minimum outer diameter: 56.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



3x42MONOi1.240Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 26 ... 42 mm
  • Length: 500 mm
  • Maximum outer diameter: 54.0 mm
  • Minimum outer diameter: 38.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



3x42MONOi1.300Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 28 ... 46 mm
  • Length: 500 mm
  • Maximum outer diameter: 60.0 mm
  • Minimum outer diameter: 40.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



3x42MONOi1.400Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 32 ... 48 mm
  • Length: 550 mm
  • Maximum outer diameter: 64.0 mm
  • Minimum outer diameter: 42.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



3x42MONOi1.630Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 34 ... 56 mm
  • Length: 550 mm
  • Maximum outer diameter: 68.0 mm
  • Minimum outer diameter: 46.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



3x42MONOi1.95Ai

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 20 ... 34 mm
  • Length: 500 mm
  • Maximum outer diameter: 50.0 mm
  • Minimum outer diameter: 34.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



Description

Description

Standards

  • Product
    IEC 60502-4
  • Test
    CENELEC HD 629.1

Application

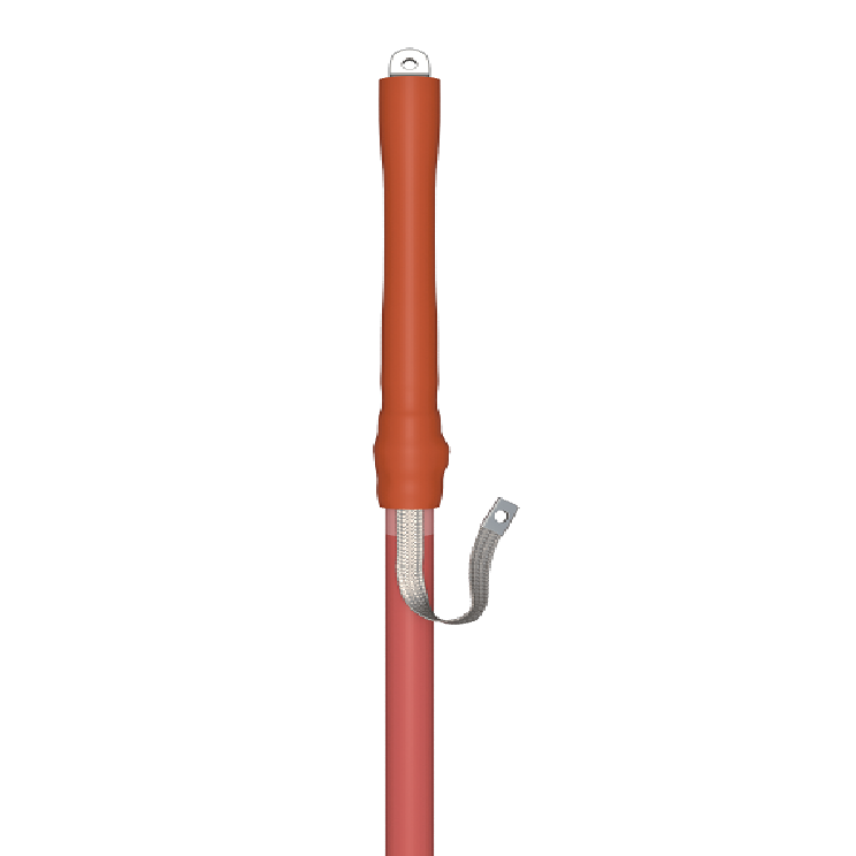

The "MONOi A" terminations are a single component solution, for single core polymeric cables.

Technical characteristics

The "MONOi A" indoor terminations are designed for max system voltages of 42 kV for compact switchgears as well as for installations where space is limited.
Easy, quick to install, reducing installation time and errors.
The kit consists of a stress control mastic pad, a co extruded dual wall tube and red anti-tracking sealing mastic.
The design accommodates various conductor lugs.
MC types are supplied with “GPH®” mechanical conductor lugs.
Each MONOi A termination kit contains material to allow for 3 phase installation.

Benefits heat-shrink terminations

  • Reliable stress control : In order to tackle and compensate the negative effects of the very short lengths of the Nexans heat shrinkable terminations, a combination of two different stress control material is used. One built in stress control co-extruded inner layer covers the full inner length of the tube. and one MACD mastic.
  • Single tube design : The MONO terminations are simply designed but have superior performances. They are made with only one tube. This tube is a co-extruded tube, with an outer anti tracking layer and an inner stress control layer. Coextrusion manufacturing method brings benefits of reduced installation time and errors at the end user side.
  • Fits all projects : Whatever the situation is, Nexans terminations will fit with your project. Made for both indoor and outdoor application, they cover a wide range of cross sections. Available for heavy or standard duty, for single or three core. The outer layer of all heat shrinkable Nexans terminations is made out of an antitracking material designed for usage in harshest environments.



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Protection
Butilic mastic
Screen
Copper tape

Usage characteristics

Usage characteristics

Field of application
Indoor
Water sealing
Mastic

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
