MV Outdoor Terminations OTK
MV Outdoor Terminations OTK

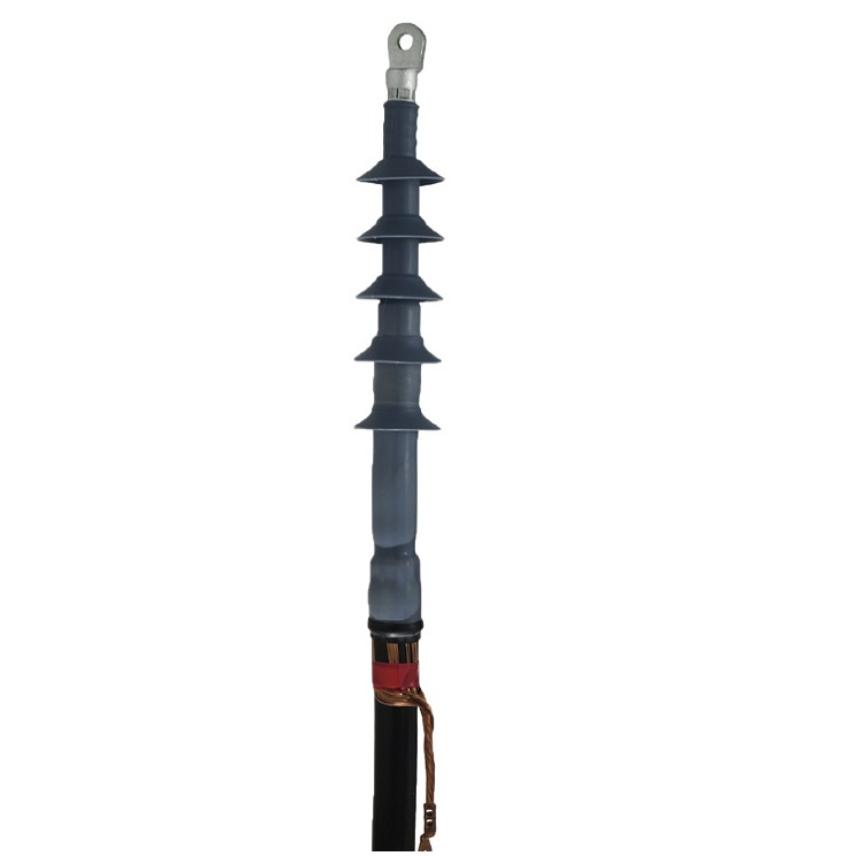

Cold-shrinkable outdoor terminations. Up to 12.7/22 (24) kV.
Read more3 x OTK 12-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 50 ... 400 mm²
- Diameter over insulation, range: 14 ... 33 mm
- Length: 300 mm
- Nominal overall diameter: 70.0 mm
- Number of sheds: 3
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x OTK 12-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 500 ... 1000 mm²
- Diameter over insulation, range: 30 ... 50 mm
- Length: 650 mm
- Nominal overall diameter: 79.0 mm
- Number of sheds: 6
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x OTK 24-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 50 ... 240 mm²
- Diameter over insulation, range: 19 ... 33 mm
- Length: 540 mm
- Nominal overall diameter: 70.0 mm
- Number of sheds: 5
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3 x OTK 24-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 300 ... 630 mm²
- Diameter over insulation, range: 30 ... 50 mm
- Length: 650 mm
- Nominal overall diameter: 79.0 mm
- Number of sheds: 6
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
Description
Description
Standards
-
ProductIEC 60502-4
-
TestCENELEC HD 629.1
-
InternationalIEC/TS 60815-3
Application
A kit of 3 terminations for use outdoors and exposed to prolonged sunshine and other weather conditions. Used to connect polymeric insulated cable to equipment and for the outdoor terminating on to overhead lines or busbars.
Technical characteristics
- Water sealing mastic.
- Silicone tube.
- Stress control mastic.
- Conductive EPDM ring.

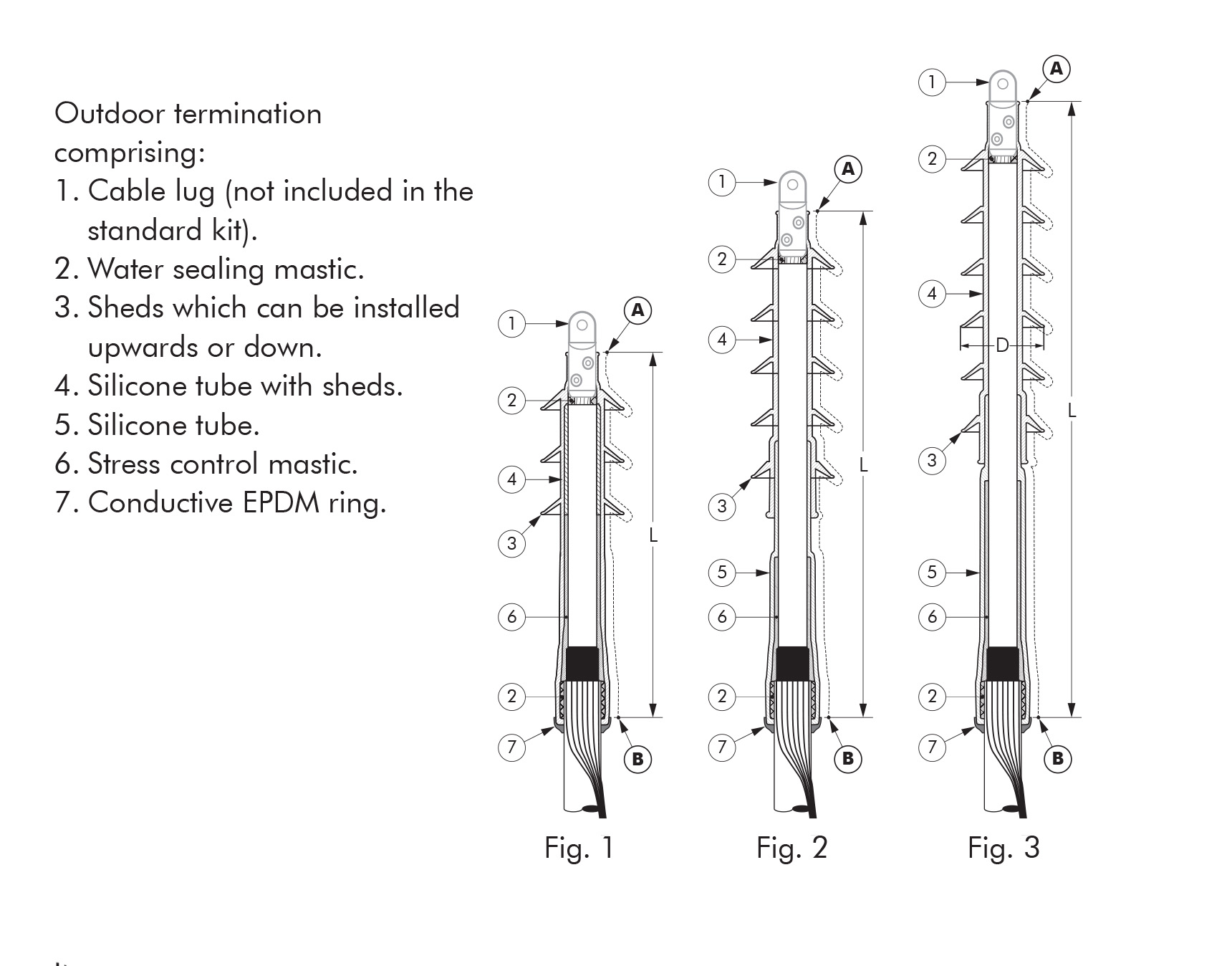

Design OTK
Design Legend OTK
- D corresponds to the Nominal Overall Diameter
- L corresponds to the length

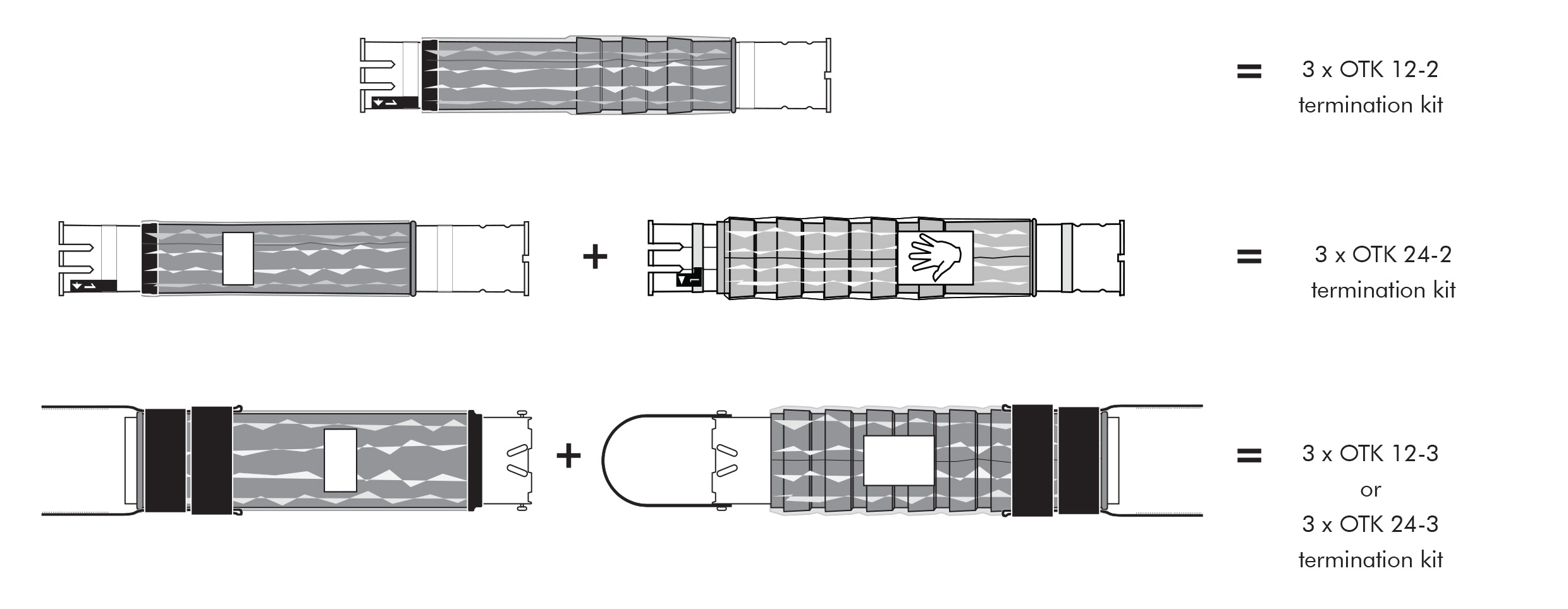

Kit contents OTK

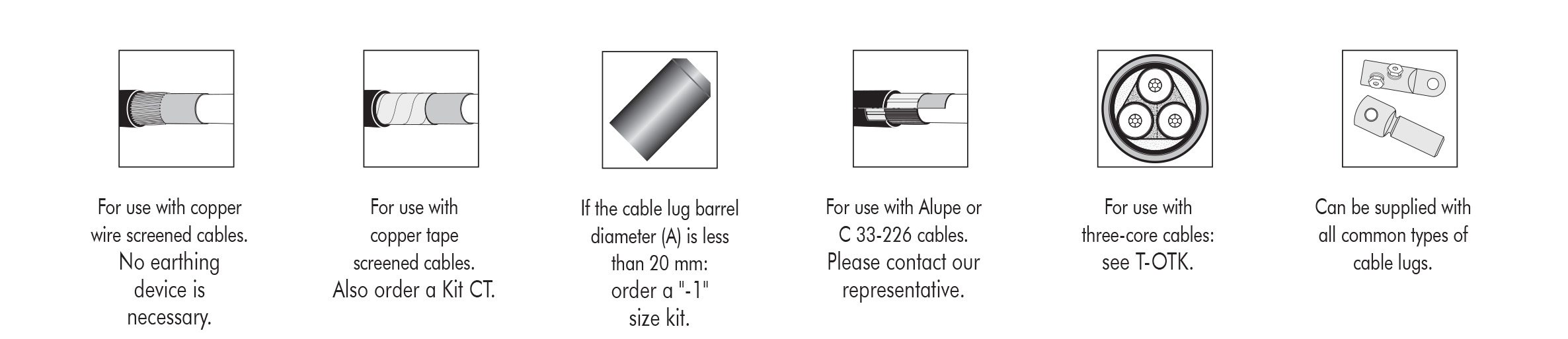

Recommandations OTK
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Field of application
Outdoor
Pollution Class
E
Water sealing
Mastic
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
