MV Surge Arresters 400PB-10SA

MV Surge Arresters 400PB-10SA

MV Surge Arresters 400PB-10SA

Surge arresters for interface C. Up to 42 kV.

Read more
Contact us

Products

Actions

  • products

400PB-10SA-12N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 33.6 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 37.1 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 31.5 kV
  • Max. continuous operating voltage Uc: 9.6 kV
  • Rated voltage Ur: 12 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 36.3 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 25.1 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 26.5 kV



400PB-10SA-15N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 42 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 46.4 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 39.4 kV
  • Max. continuous operating voltage Uc: 12 kV
  • Rated voltage Ur: 15 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 45.3 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 31.4 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 33.1 kV



400PB-10SA-18N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 50.4 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 56.4 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 47.3 kV
  • Max. continuous operating voltage Uc: 14.4 kV
  • Rated voltage Ur: 18 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 54.4 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 37.7 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 39.7 kV



400PB-10SA-22N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 61.6 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 68.1 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 57.8 kV
  • Max. continuous operating voltage Uc: 17.6 kV
  • Rated voltage Ur: 22 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 66.5 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 46 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 48.5 kV



400PB-10SA-24N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 67.2 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 75.2 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 63 kV
  • Max. continuous operating voltage Uc: 19.2 kV
  • Rated voltage Ur: 24 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 72.5 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 50.2 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 53 kV



400PB-10SA-27.5N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 75.6 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 85 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 71 kV
  • Max. continuous operating voltage Uc: 22 kV
  • Rated voltage Ur: 27.5 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 81.6 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 56.5 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 59.6 kV



400PB-10SA-30N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 84 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 94 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 78.8 kV
  • Max. continuous operating voltage Uc: 24 kV
  • Rated voltage Ur: 30 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 90.7 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 62.8 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 66.2 kV



400PB-10SA-33N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 92.4 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 102.1 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 86.7 kV
  • Max. continuous operating voltage Uc: 26.4 kV
  • Rated voltage Ur: 33 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 99.7 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 65 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 68.5 kV



400PB-10SA-36N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 100.8 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 112.7 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 94.5 kV
  • Max. continuous operating voltage Uc: 28.8 kV
  • Rated voltage Ur: 36 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 108.8 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 75.3 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 79.4 kV



400PB-10SA-40N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 112 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 123.8 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 105.1 kV
  • Max. continuous operating voltage Uc: 32 kV
  • Rated voltage Ur: 40 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 120.9 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 83.7 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 88.3 kV



400PB-10SA-42N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 117.6 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 130 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 110.3 kV
  • Max. continuous operating voltage Uc: 33.6 kV
  • Rated voltage Ur: 42 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 126.9 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 87.9 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 92.7 kV



400PB-10SA-45N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 126 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 139.3 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 118.2 kV
  • Max. continuous operating voltage Uc: 36 kV
  • Rated voltage Ur: 45 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 136 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 94.2 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 99.3 kV



400PB-10SA-51N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 142.8 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 160.4 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 134 kV
  • Max. continuous operating voltage Uc: 40.8 kV
  • Rated voltage Ur: 51 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 154.1 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 106.7 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 112.5 kV



400PB-10SA-6N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 17.2 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 19.3 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 16.2 kV
  • Max. continuous operating voltage Uc: 4.8 kV
  • Rated voltage Ur: 6 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 18.5 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 12.6 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 13.2 kV



400PB-10SA-9N

Nexans ref.

  • Lightning current residual voltage [8/20 µs] @ 10 kA: 24.5 kV
  • Lightning current residual voltage [8/20 µs] @ 20 kA: 27.5 kV
  • Lightning current residual voltage [8/20 µs] @ 5 kA: 23 kV
  • Max. continuous operating voltage Uc: 7.2 kV
  • Rated voltage Ur: 9 kV
  • Steep current residual voltage @ 10 kA [1/20 µs]: 26.3 kV
  • Switching impulse residual voltage [36/90 µs] @ 125 A: 18.1 kV
  • Switching impulse residual voltage [36/90 µs] @ 500 A: 19.1 kV



Description

Description

Standards

  • International
    IEC 60099-4

Application

Surge arrester designed to protect medium voltage components, including transformers, equipment, cable and accessories from high voltage surges resulting from lightning or switching.



Technical characteristics

  • Station class (SL); Qrs = 1.0 As.
  • Energy absorption 4.0 kJ/kV_Ur.
  • This surge arrester is a metal oxide varistor surge arrester in an elbow configuration.
  • Each arrester is tested for AC withstand, partial discharge and critical voltage prior to leaving the factory.

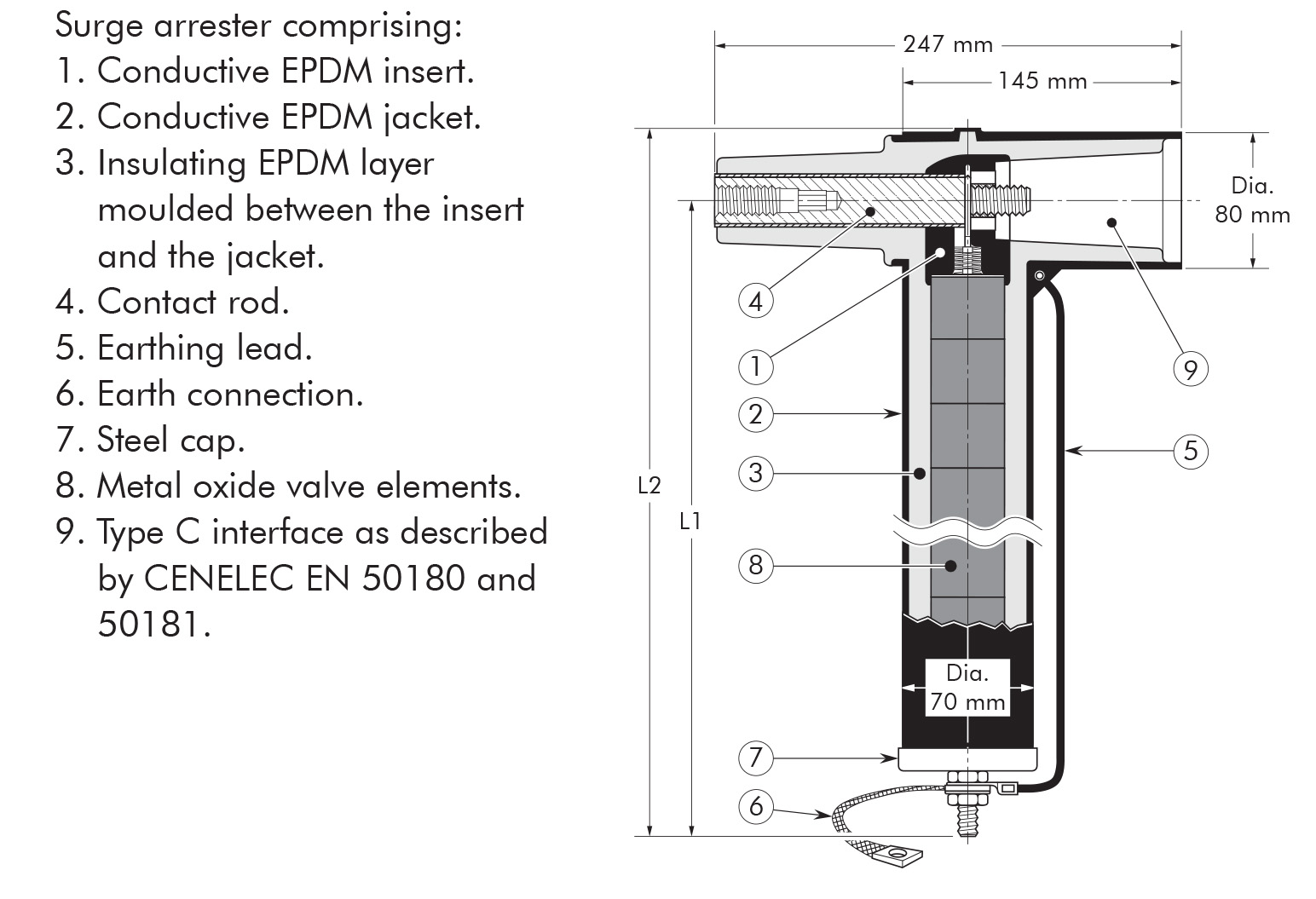

Design 400PB-10SA

Dimensions 400PB-10SA

Reference Dimensions (mm) (indicative)
L1 L2
400PB-10SA-6N 270 310
400PB-10SA-9N 270 310
400PB-10SA-12N 270 310
400PB-10SA-15N 270 310
400PB-10SA-18N 270 310
400PB-10SA-22N 270 310
400PB-10SA-24N 370 410
400PB-10SA-27.5N 370 410
400PB-10SA30N 370 410
400PB-10SA-33N 370 410
400PB-10SA-36N 370 410
400PB-10SA-40N 470 510
400PB-10SA-42N 470 510
400PB-10SA-45N 470 510
400PB-10SA-51N 470 510



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper or Aluminum

Electrical characteristics

Electrical characteristics

High current impulse withstand
100 kA
Nominal discharge current In
10 kA

Usage characteristics

Usage characteristics

Interface
C (630 - 1250 A)

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
