800SA-10-45N
800SA-10-45N
Surge arresters for 480TB, 484TB, 489TB, 800PB, 804PB and 809PB connector. Up to 42 kV.
Read moreDescription
Description
Standards
-
InternationalIEC 60099-4
Application
Surge arrester designed to protect 12, 24, 36 and 42 kV class components, including transformers, equipment, cable and accessories from high voltage surges resulting from lightning or switching. It has been designed to be used with the 480TB, 484TB and 489TB separable tee connectors.
Technical characteristics
- Station class (SL); Qrs = 1.0 As.
- Energy absorption 4.0 kJ/kV_Ur.

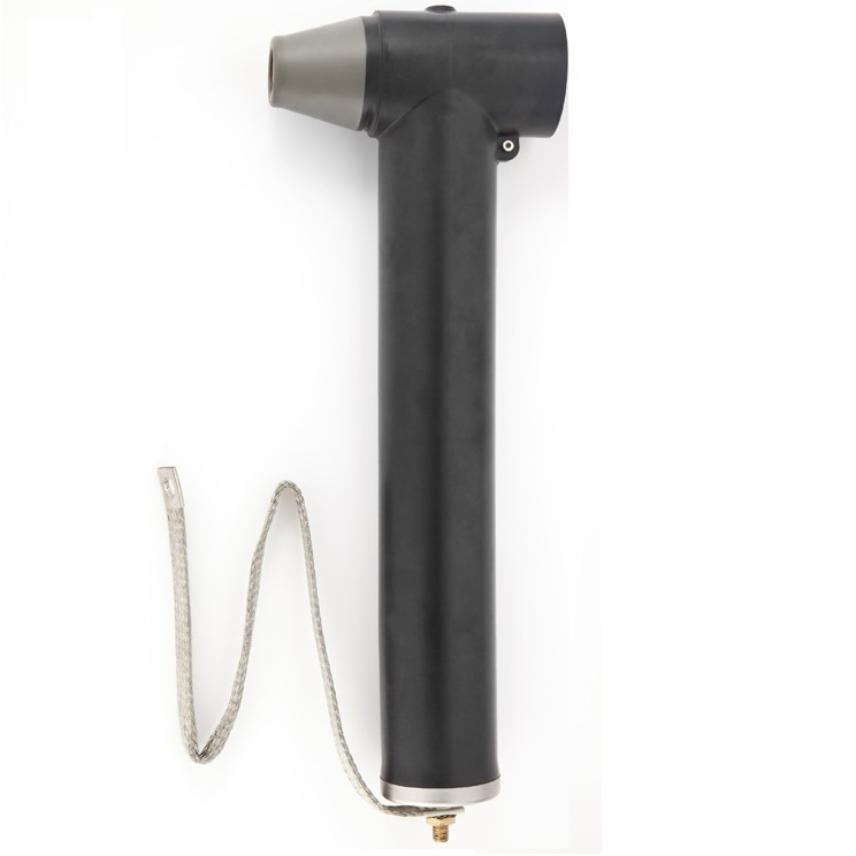

- This surge arrester is a metal oxide varistor surge arrester in an elbow configuration.
- Each arrester is tested for AC withstand, partial discharge and critical voltage prior to leaving the factory.
Design 800SA
800SA dimensions
| Reference | Dimesnions (mm) (indicative) | |
| L1 | L2 | |
| 8000SA-10-6N | 270 | 310 |
| 8000SA-10-6N | 270 | 310 |
| 8000SA-10-9N | 270 | 310 |
| 8000SA-10-12N | 270 | 310 |
| 8000SA-10-15N | 270 | 310 |
| 8000SA-10-18N | 270 | 310 |
| 8000SA-10-22N | 370 | 410 |
| 8000SA-10-24N | 370 | 410 |
| 8000SA-10-27.5N | 370 | 410 |
| 8000SA-10-30N | 370 | 410 |
| 8000SA-10-33N | 370 | 410 |
| 8000SA-10-36N | 470 | 510 |
| 8000SA-10-40N | 470 | 510 |
| 8000SA-10-42N | 470 | 510 |
| 8000SA-10-45N | 470 | 510 |
| 8000SA-10-51N | 470 | 510 |
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper or Aluminum
Electrical characteristics
Electrical characteristics
High current impulse withstand
100 kA
Lightning current residual voltage [8/20 µs] @ 10 kA
126 kV
Lightning current residual voltage [8/20 µs] @ 20 kA
139.3 kV
Lightning current residual voltage [8/20 µs] @ 5 kA
118.2 kV
Max. continuous operating voltage Uc
36 kV
Nominal discharge current In
10 kA
Rated voltage Ur
45 kV
Steep current residual voltage @ 10 kA [1/20 µs]
136 kV
Switching impulse residual voltage [36/90 µs] @ 125 A
94.2 kV
Switching impulse residual voltage [36/90 µs] @ 500 A
99.3 kV
Usage characteristics
Usage characteristics
Interface
C (630 - 1250 A)
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
