MV Test Rod 900 TR

Application

• The test rod can be used for:

- cable fault location
- cable testing
- phasing checks, etc.

• Connections can be made with a cable lug, a 4 mm plug or spring clips.
• The test rod is not suitable for PD (partial discharge) measurements.

Technical characteristics

The 900TR test rod can be used with 909TB and 909PB connectors.

Characteristics

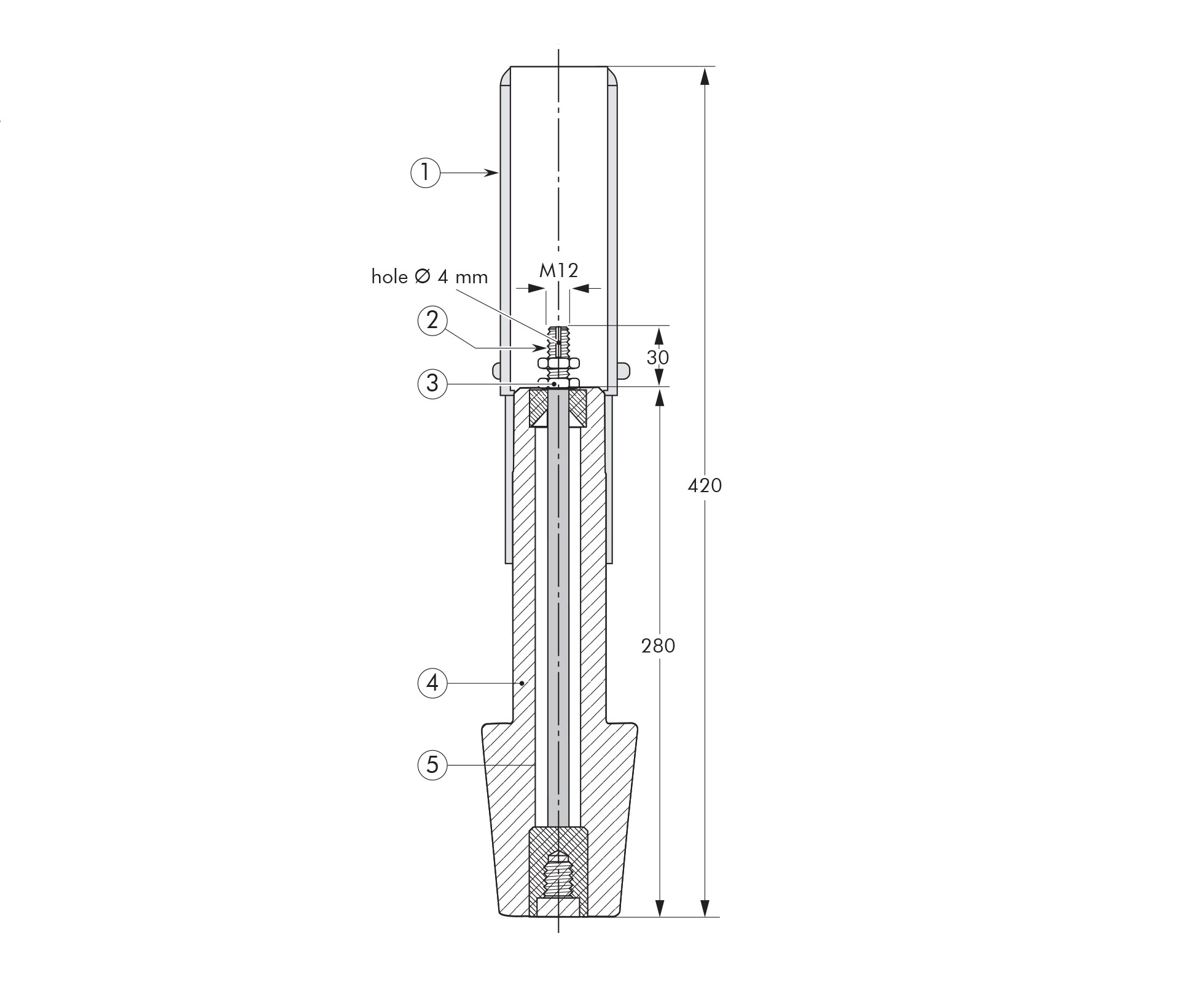

Test rod type : 900 TR
Maximum A.C. test voltage (2 x U0 - 5 min) : up to 42 kV
Maximum D.C test voltage (30 min) : 96 kV
Maximum impulse voltage (1.2 x 50 µs) : 95 kV
Maximum VLF test voltage (3 x U0 - 60 min) : up to 63 kV
