MV Connectors 784TB
MV Connectors 784TB
Tee separable connectors for interface E. Up to 42 kV, 800A, from 16 to 630 mm².
Read more784TB/G-CA611-27-16.95UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 16 ... 95 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
784TB/G-CA611-27-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
784TB/G-CA611-27-95.300UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
784TB/G-CA611-32-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
784TB/G-CA611-37-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
784TB/G-CA611-43-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 45.5 ... 56 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
K784TB/G-CA611-22-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 23.5 ... 31 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K784TB/G-CA611-27-16.95UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 16 ... 95 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K784TB/G-CA611-27-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K784TB/G-CA611-27-95.300UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K784TB/G-CA611-32-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K784TB/G-CA611-37-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K784TB/G-CA611-43-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 45.5 ... 56 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
M784TB/G-CA611-27-95.300UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M784TB/G-CA611-32-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M784TB/G-CA611-32-95.300UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M784TB/G-CA611-37-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M784TB/G-CA611-37-95.300UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M784TB/G-CA611-43-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 45.5 ... 56 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
P784TB/G-CA611-27-16.95UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 16 ... 95 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P784TB/G-CA611-27-95.300UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P784TB/G-CA611-32-16.95UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 16 ... 95 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P784TB/G-CA611-32-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P784TB/G-CA611-32-95.300UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P784TB/G-CA611-37-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P784TB/G-CA611-37-95.300UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P784TB/G-CA611-43-400.630UN5
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 45.5 ... 56 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
Description
Description
Standards
-
TestCENELEC HD 629.1
Application
Separable tee shape connector (bolted type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ...). Also connects cable to cable when using the appropriate mating parts.
Technical characteristics
- The thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Design 784TB

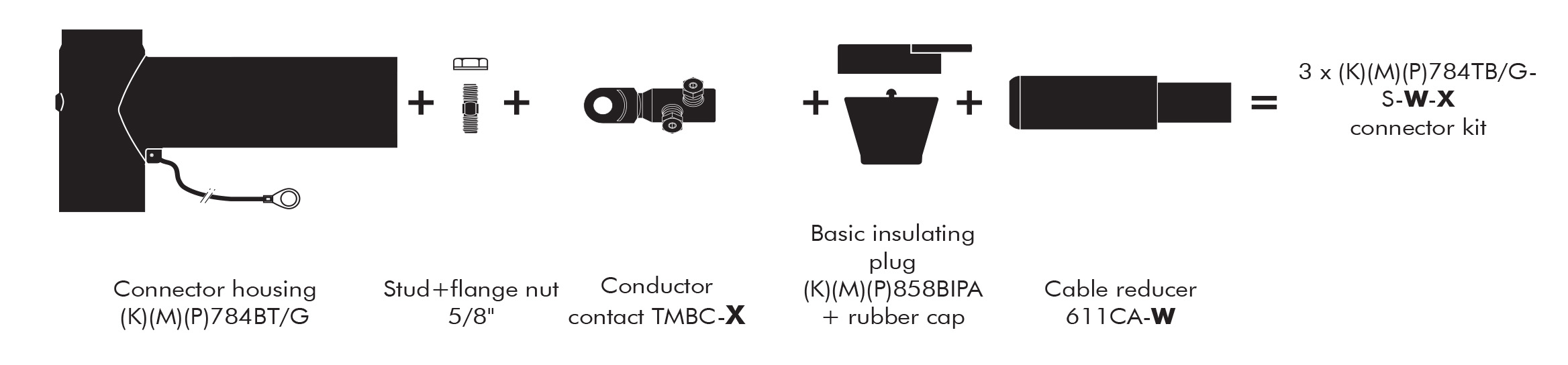

Kit contents 784TB

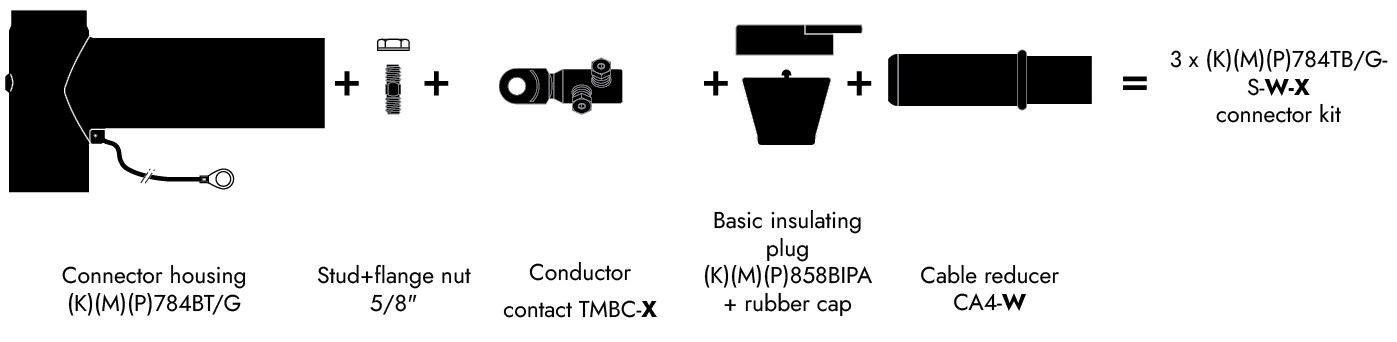

Kit Legend 784TB
In the scheme above:
- (K) / (M) / (P) correspond respectively to connectors compatible for 24 kV / 36 kV / 42 kV voltages.
- X represents the conductor size (min and max diameter).
- W gives the information of the diameter over core insulation (min and max diameter).

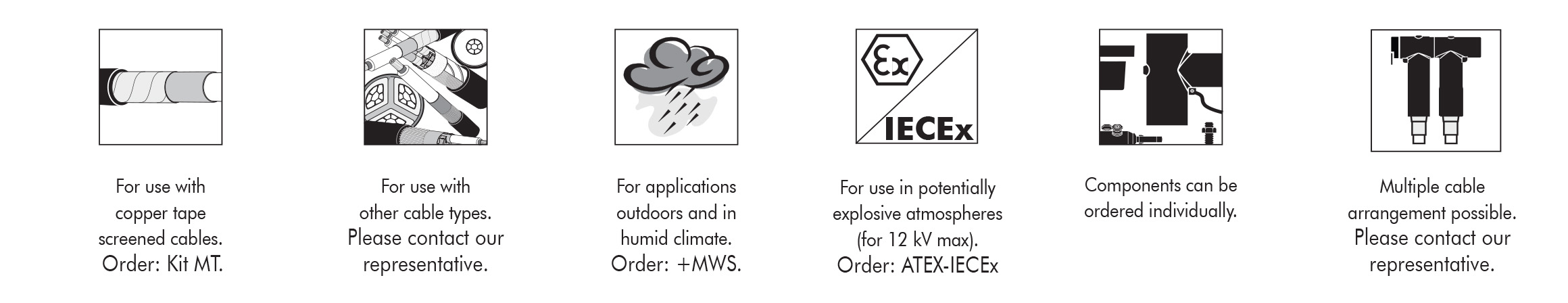

Recommandations 784TB
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper or Aluminum
Electrical characteristics
Electrical characteristics
Maximum permissible nominal current
800 A
Usage characteristics
Usage characteristics
Field of application
Indoor, Outdoor
Interface
E (800 – 1250 A)
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
