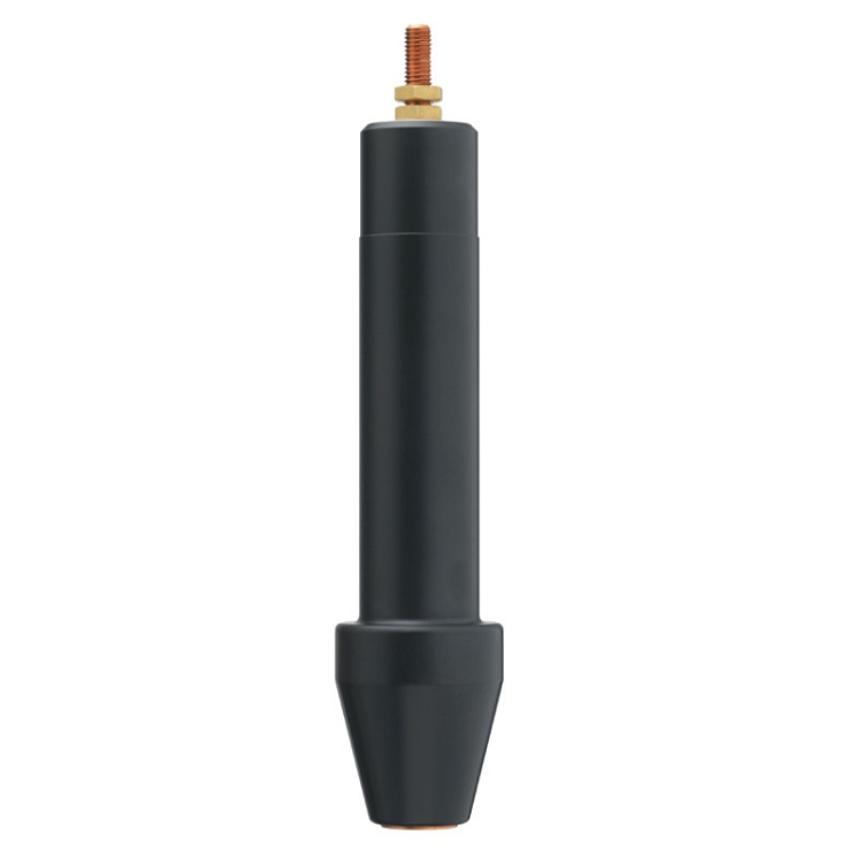

MV Test Rod 800TR

Description

Description

Application

  • The test rod can be used for:

- cable fault location
- cable testing
- phasing checks, etc.

  • Connections can be made with a cable lug, a 4 mm plug or spring clips.
  • The test rod is not suitable for PD (partial discharge) measurements.

Technical characteristics

The 800TR test rod can be used with 480TB, 484TB and 489TB connectors and their coupling connectors.

Characteristics

Test rod type : 800TR
Maximum A.C. test voltage (2 x U0 - 5 min) : up to 42 kV
Maximum D.C. test voltages (30 min) : 96 kV
Maximum impluse voltage (1.2 x 50 µs) : 95 kV
Maximum VLF test voltage (3 x U0 - 60 min) : up to 63 kV

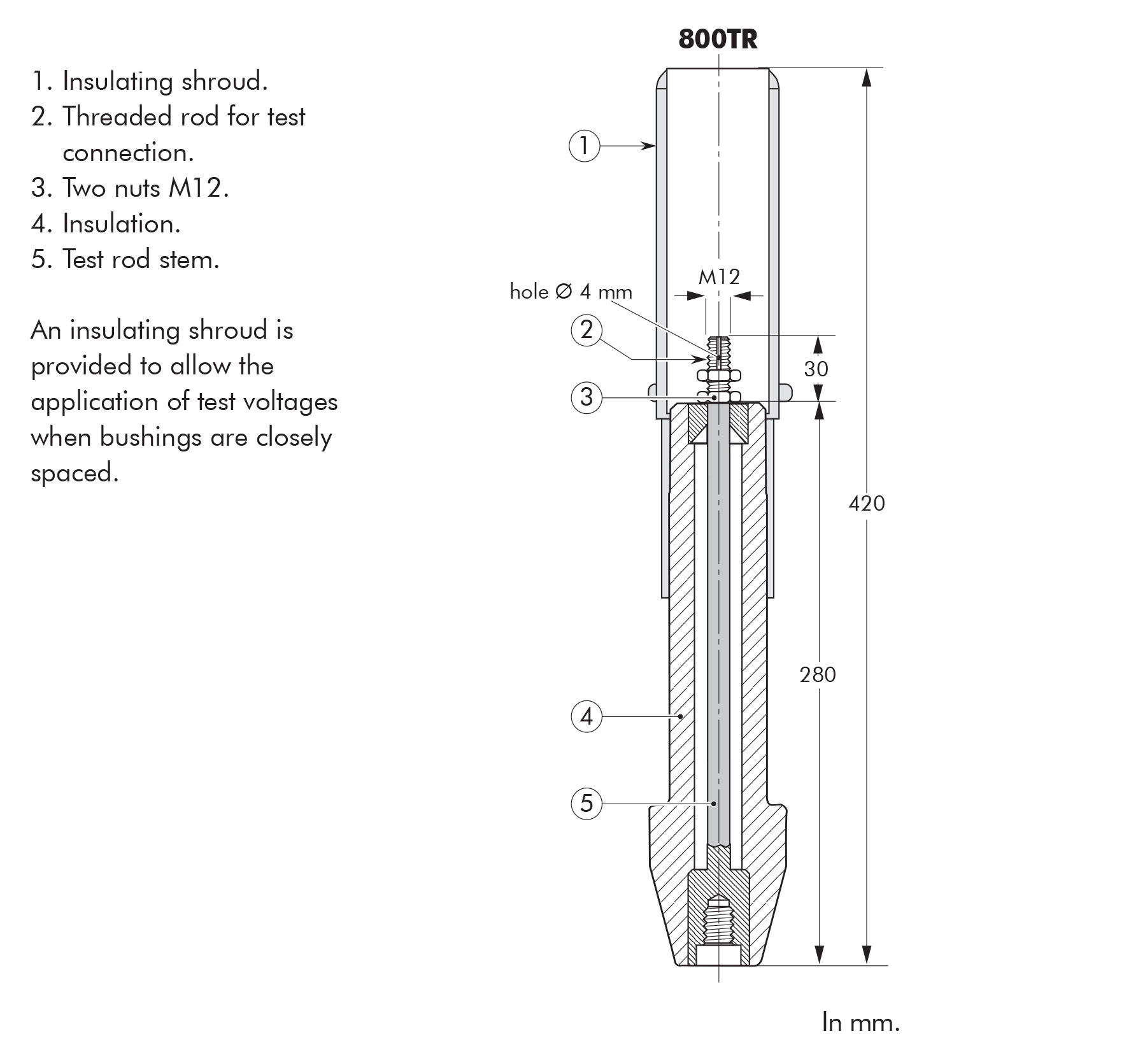

Design 800TR

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
