MV Connectors 440PB
MV Connectors 440PB
Symmetrical separable coupling connectors for interface C. Up to 42 kV, 1250 A, from 185 to 630 mm².
Read more440PB/G-CA611-22-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 23.5 ... 31 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
440PB/G-CA611-22-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 23.5 ... 31 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
440PB/G-CA611-27-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
440PB/G-CA611-27-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
440PB/G-CA611-32-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
440PB/G-CA611-32-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
440PB/G-CA611-37-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
K440PB/G-CA611-22-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 23.5 ... 31 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K440PB/G-CA611-27-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K440PB/G-CA611-32-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K440PB/G-CA611-32-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K440PB/G-CA611-37-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
K440PB/G-CA611-43-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 45.5 ... 56 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
M440PB/G-CA611-22-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 23.5 ... 31 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M440PB/G-CA611-27-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M440PB/G-CA611-32-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M440PB/G-CA611-32-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M440PB/G-CA611-37-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
M440PB/G-CA611-43-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 45.5 ... 56 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
P440PB/G-CA611-22-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 23.5 ... 31 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P440PB/G-CA611-27-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P440PB/G-CA611-32-185.400UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P440PB/G-CA611-32-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P440PB/G-CA611-37-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
P440PB/G-CA611-43-400.630UN5
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 45.5 ... 56 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
Description
Description
Standards
-
TestCENELEC HD 629.1
Application
Coupling Connector for 400TB and 440TB.
Separable tee shape connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ...). Also connects cable to cable when using the appropriate mating parts.
Technical characteristics
- A thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Benefits
- Safe & reliable: with their slip-on technology, EUROMOLD®’s separable connectors are safe to install. Each separable connector is made with high quality components in Europe and individually tested before leaving the plant, ensuring a reliable connection and high-quality product.
- Easy to install: make your job easier with slip-on separable connectors. They can be removed easily, when deenergized, without specific tools, and safely, thanks to high quality EPDM rubber inner and outer jackets, ensuring a long-lasting protection. The compact design is adapted to limited installation spaces.
- Compact design: the compact design of separable connectors uses less raw material and limits sub packaging. It also reduces production and storage costs.
- All-in-one solution: EUROMOLD®’s separable connectors fit every project with their different shapes available for a wide range of cross sections for all interfaces from A to F.

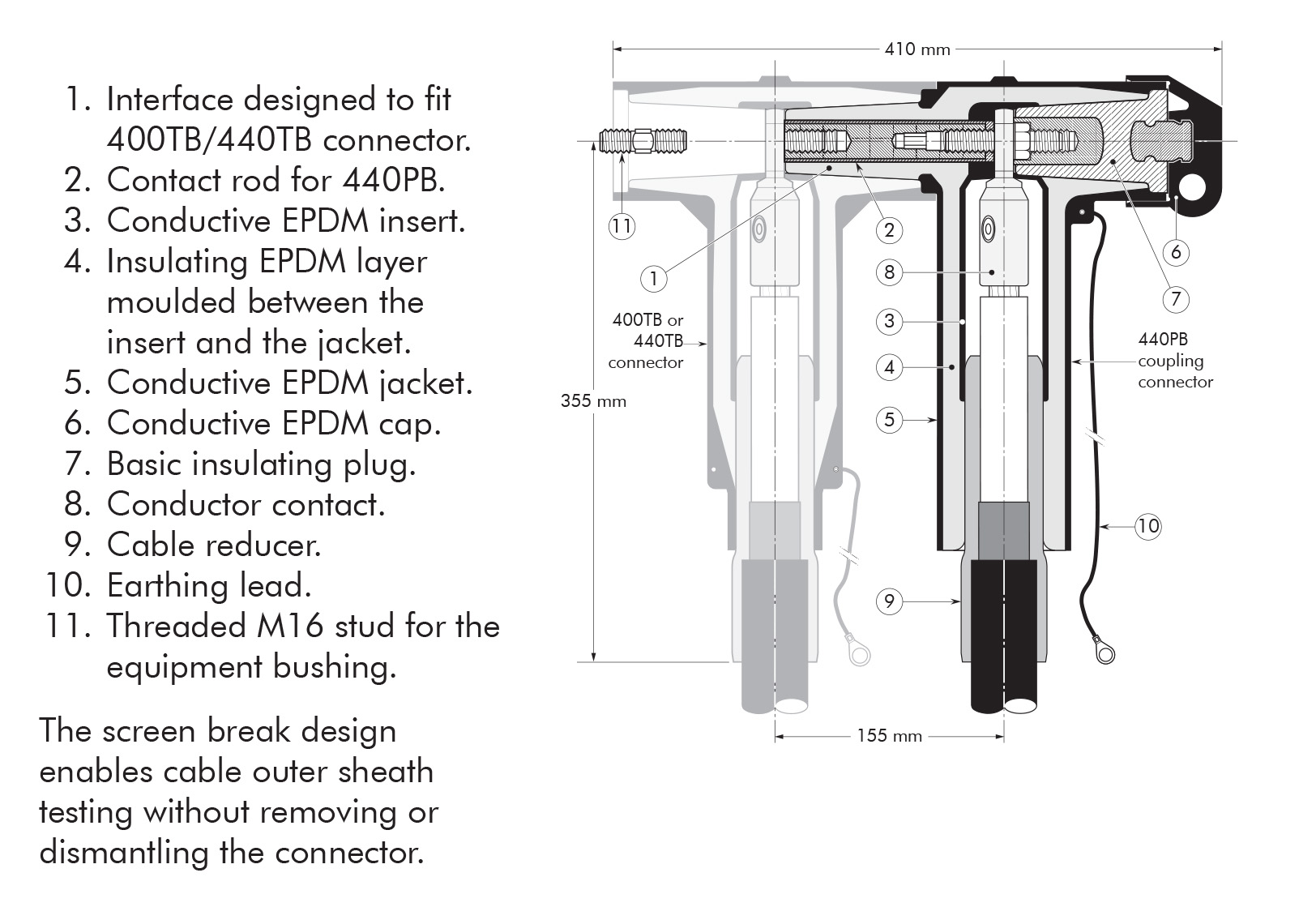

Design 440PB
Kit contents 440PB
Lit legend 440PB
In the scheme above:
- (K) / (M) / (P) correspond respectively to connectors compatible for 24 kV / 36 kV / 42 kV voltages.
- X represents the conductor size (min and max diameter).
- W gives the information of the diameter over core insulation (min and max diameter).

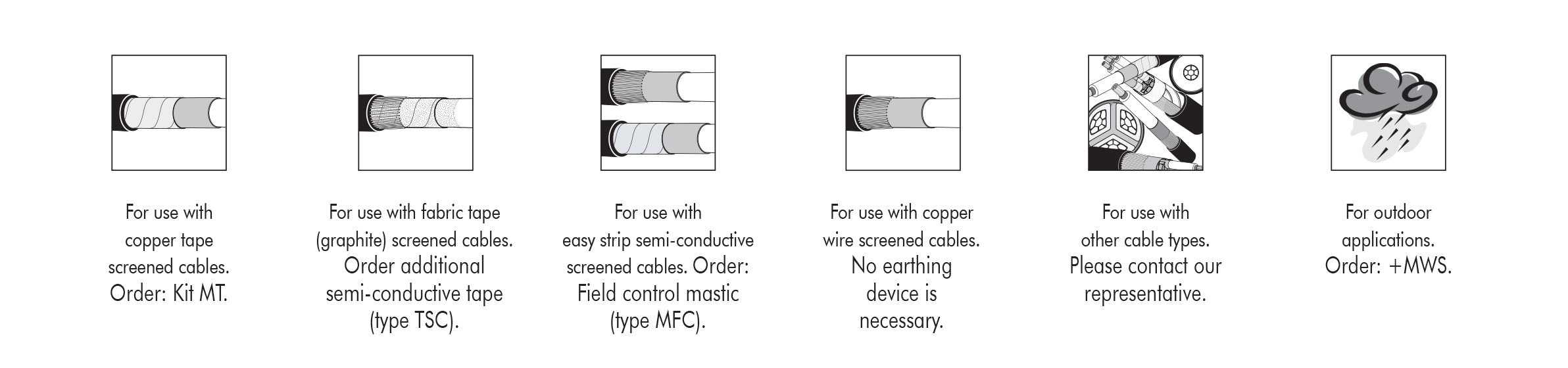

Recommandations 440PB
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
