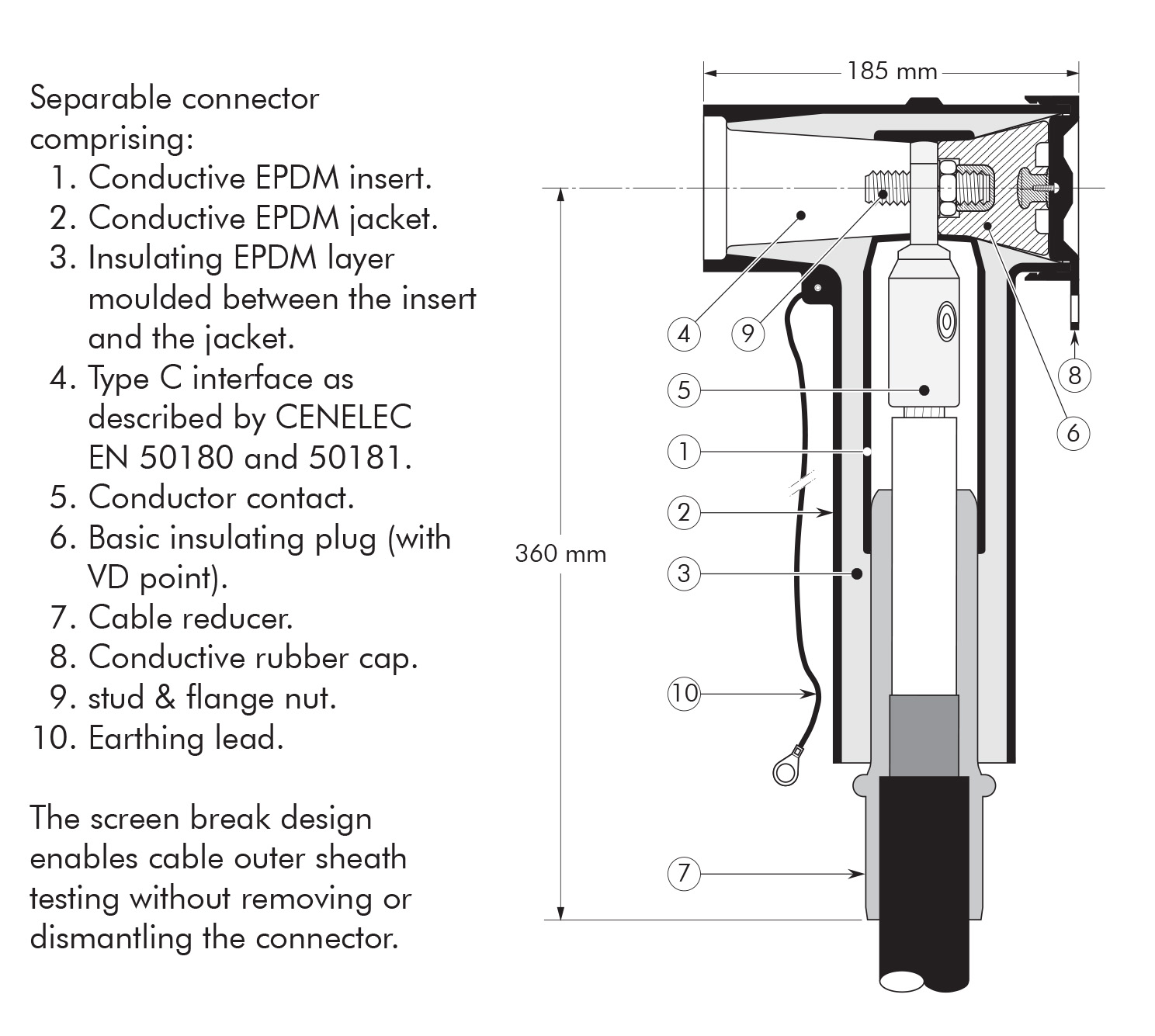

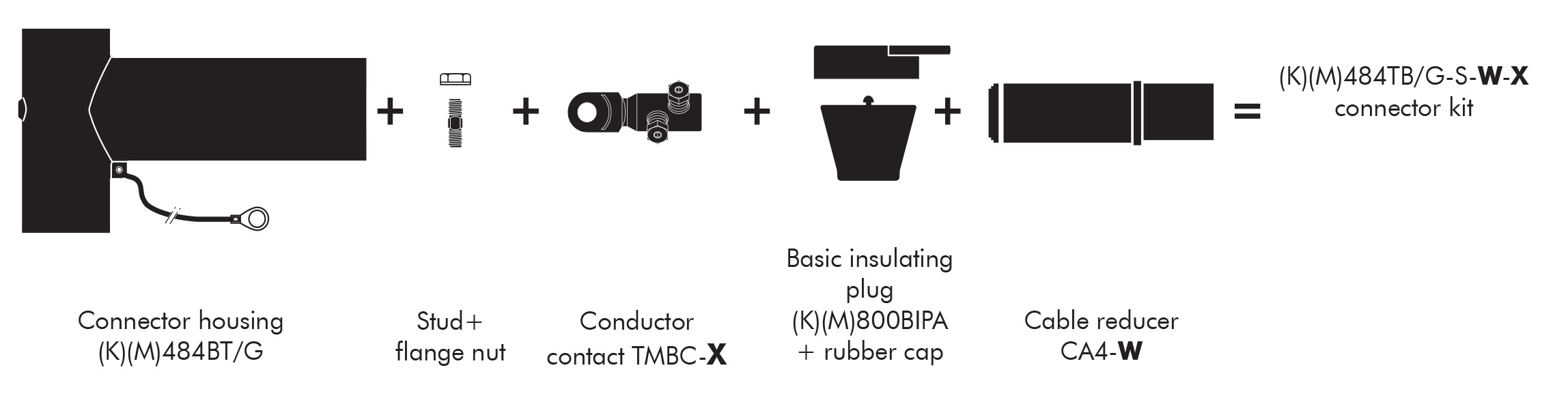

MV Connectors 484TB (K)(M)

Application

Separable tee shape connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ...). Also connects cable to cable when using the appropriate mating parts.

Technical characteristics

• The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
• Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

Benefits

• Safe & reliable: with their slip-on technology, EUROMOLD^®’s separable connectors are safe to install. Each separable connector is made with high quality components in Europe and individually tested before leaving the plant, ensuring a reliable connection and high-quality product.
• Easy to install: make your job easier with slip-on separable connectors. They can be removed easily, when deenergized, without specific tools, and safely, thanks to high quality EPDM rubber inner and outer jackets, ensuring a long-lasting protection. The compact design is adapted to limited installation spaces.
• Compact design: the compact design of separable connectors uses less raw material and limits sub packaging. It also reduces production and storage costs.
• All-in-one solution: EUROMOLD^®’s separable connectors fit every project with their different shapes available for a wide range of cross sections for all interfaces from A to F.
