MV Connectors 489TB

Products

489TB/G-S-911CA-37-400.630UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 40 ... 48 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



489TB/G-S-911CA-37-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 40 ... 48 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



489TB/G-S-911CA-43-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 46 ... 54 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



K489TB/G-S-911CA-37-400.630UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 40 ... 48 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



K489TB/G-S-911CA-37-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 40 ... 48 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



K489TB/G-S-911CA-43-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 46 ... 54 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



K489TB/G-S-911CA-50-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 53 ... 59 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



M489TB/G-S-911CA-37-400.630UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 40 ... 48 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



M489TB/G-S-911CA-37-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 40 ... 48 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



M489TB/G-S-911CA-43-400.630UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 46 ... 54 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



M489TB/G-S-911CA-43-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 46 ... 54 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



M489TB/G-S-911CA-50-400.630UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 53 ... 59 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



M489TB/G-S-911CA-50-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 53 ... 59 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



M489TB/G-S-911CA-53-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 56 ... 62 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



P489TB/G-S-911CA-37-400.630UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 40 ... 48 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



P489TB/G-S-911CA-43-400.630UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 46 ... 54 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



P489TB/G-S-911CA-43-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 46 ... 54 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



P489TB/G-S-911CA-50-400.630UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 53 ... 59 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



P489TB/G-S-911CA-50-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 53 ... 59 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



P489TB/G-S-911CA-53-630.1000UN5

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 56 ... 62 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



Description

Description

Standards

  • Test
    CENELEC HD 629.1

Application

Separable tee shape connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ...). Also connects cable to cable when using the appropriate mating parts.

Technical characteristics

  • The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
  • 1200UN5 connectors on request.

Benefits

  • Safe & reliable: with their slip-on technology, EUROMOLD®’s separable connectors are safe to install. Each separable connector is made with high quality components in Europe and individually tested before leaving the plant, ensuring a reliable connection and high-quality product.
  • Easy to install: make your job easier with slip-on separable connectors. They can be removed easily, when deenergized, without specific tools, and safely, thanks to high quality EPDM rubber inner and outer jackets, ensuring a long-lasting protection. The compact design is adapted to limited installation spaces.
  • Compact design: the compact design of separable connectors uses less raw material and limits sub packaging. It also reduces production and storage costs.
  • All-in-one solution: EUROMOLD®’s separable connectors fit every project with their different shapes available for a wide range of cross sections for all interfaces from A to F.

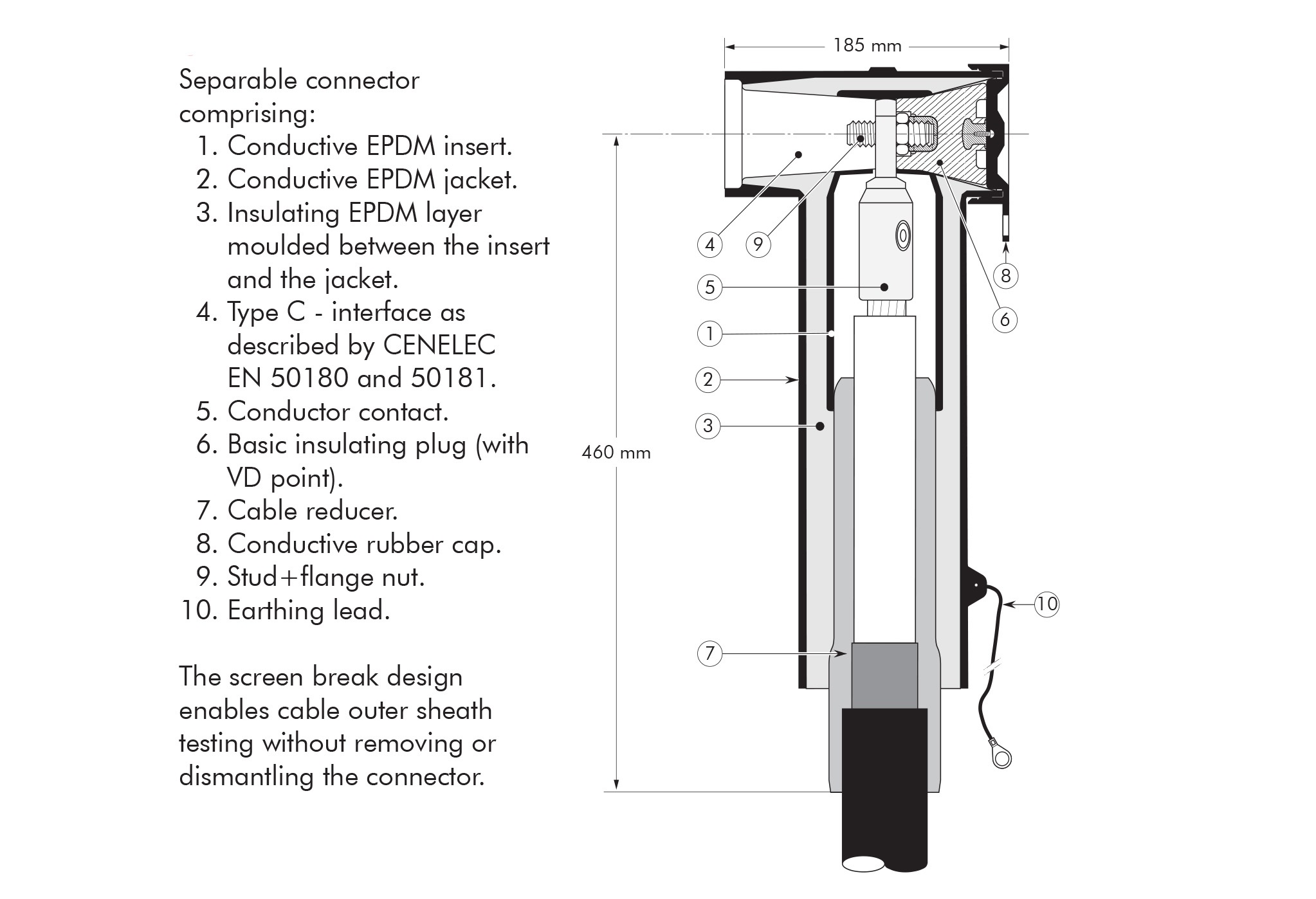

Design 489TB

Kit contents 489TB

Kit Legend 489TB

In the scheme above:

  • (K) / (M) / (P) correspond respectively to connectors compatible for 24 kV / 36 kV / 42 kV voltages.
  • X represents the conductor size (min and max diameter).
  • W gives the information of the diameter over core insulation (min and max diameter).

Recommandations 489TB

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper or Aluminum

Electrical characteristics

Electrical characteristics

Maximum permissible nominal current
1250 A

Usage characteristics

Usage characteristics

Field of application
Indoor, Outdoor
Interface
C (630 - 1250 A)

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
