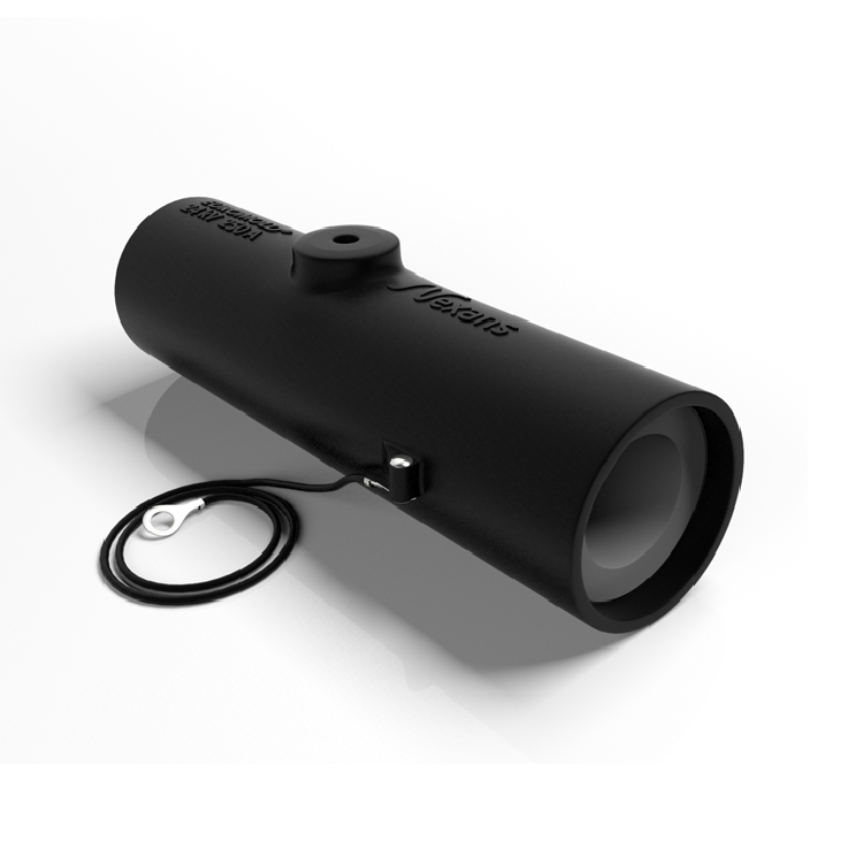

MV Connectors 200SR

Products

K200SR-12

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 13 ... 21 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



K200SR-12

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 25 ... 50 mm²
  • Diameter over insulation, range: 13 ... 21 mm
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



K200SR-16

Nexans ref.

  • Packaging: Kit
  • Conductor cross-section, range: 50 ... 95 mm²
  • Diameter over insulation, range: 17.5 ... 25 mm
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



Description

Description

Standards

  • Test
    CENELEC HD 629.1

Application

Separable straight connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors...).

Technical characteristics

  • The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

Benefits

  • Safe & reliable: with their slip-on technology, EUROMOLD®’s separable connectors are safe to install. Each separable connector is made with high quality components in Europe and individually tested before leaving the plant, ensuring a reliable connection and high-quality product.
  • Easy to install: make your job easier with slip-on separable connectors. They can be removed easily, when deenergized, without specific tools, and safely, thanks to high quality EPDM rubber inner and outer jackets, ensuring a long-lasting protection. The compact design is adapted to limited installation spaces.
  • Compact design: the compact design of separable connectors uses less raw material and limits sub packaging. It also reduces production and storage costs.
  • All-in-one solution: EUROMOLD®’s separable connectors fit every project with their different shapes available for a wide range of cross sections for all interfaces from A to F.

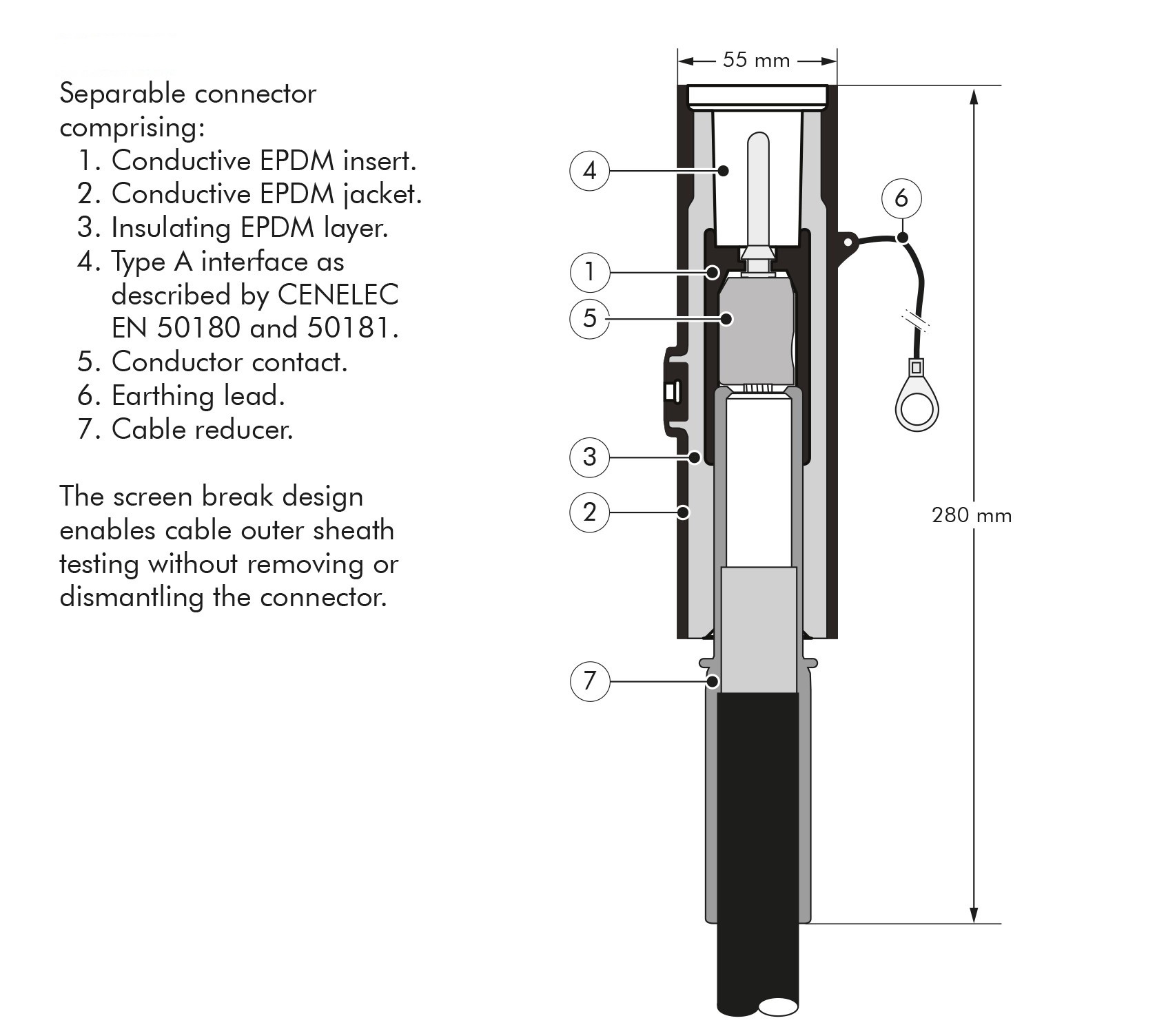

Design 200SR

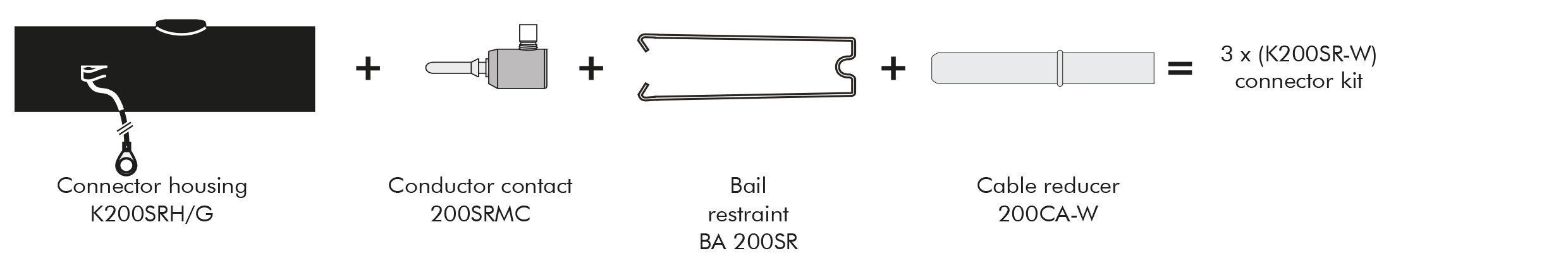

Kit contents 200SR

Kit Legend 200SR

In the scheme above:

  • (K) correspond respectively to connectors compatible for 24 kV voltages.
  • W gives the information of the diameter over core insulation (min and max diameter).

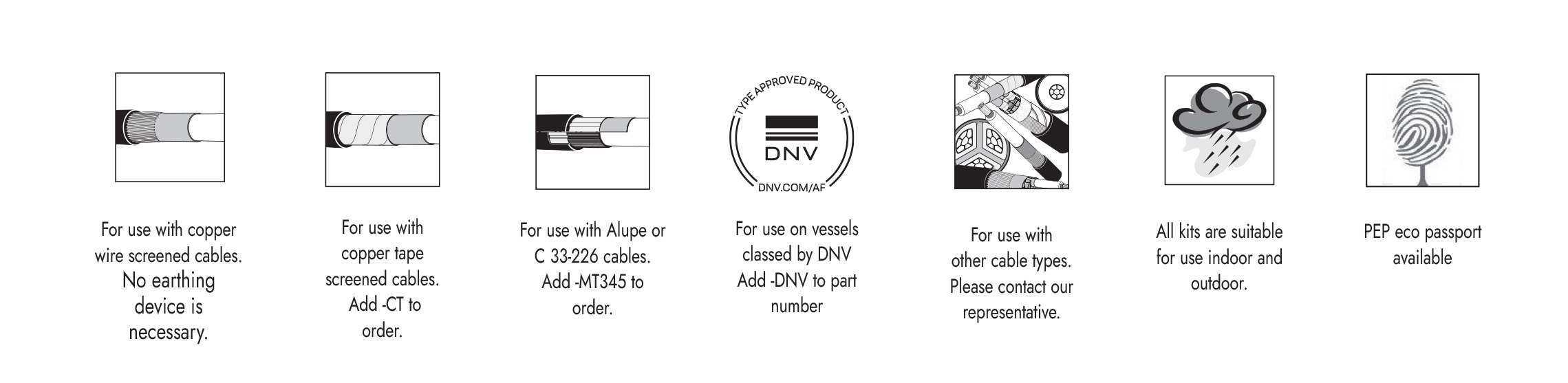

Recommandations 200SR

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper or Aluminum

Electrical characteristics

Electrical characteristics

Maximum permissible nominal current
250 A

Usage characteristics

Usage characteristics

Interface
A (250 A)
Field of application
Indoor, Outdoor
