MV Transition Joints JTM3 KB
MV Transition Joints JTM3 KB

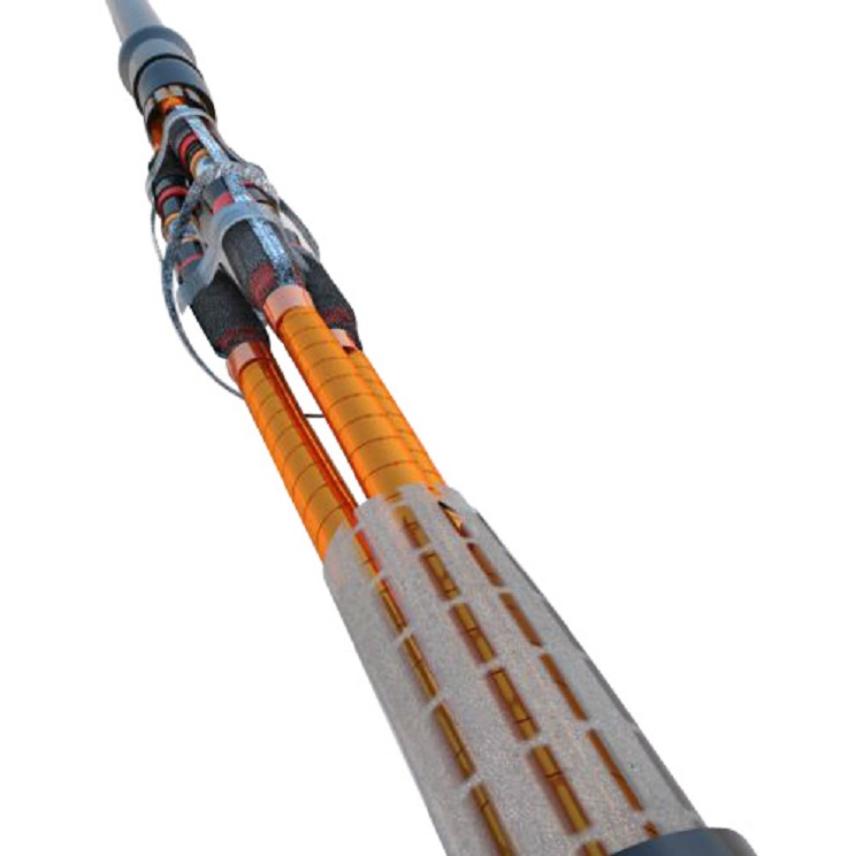

Heat-shrink MV transition joints between three core polymeric cables with Cu wire and tape screen armored and three core paper insultaed PILC (HSL) armored cables. Up to 20.8/36 (42) kV.
Read more24JTM3.240KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 20 ... 36 mm
- Length: 1600 mm
- Maximum outer diameter: 98.0 mm
- Minimum outer diameter: 50.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24JTM3.300KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1600 mm
- Maximum outer diameter: 106.0 mm
- Minimum outer diameter: 52.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24JTM3.400KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 24 ... 40 mm
- Length: 1800 mm
- Maximum outer diameter: 116.0 mm
- Minimum outer diameter: 64.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24JTM3.95KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 18 ... 28 mm
- Length: 1600 mm
- Maximum outer diameter: 82.0 mm
- Minimum outer diameter: 44.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
36JTM3.240KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1800 mm
- Maximum outer diameter: 120.0 mm
- Minimum outer diameter: 68.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTM3.300KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 24 ... 42 mm
- Length: 1800 mm
- Maximum outer diameter: 132.0 mm
- Minimum outer diameter: 72.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTM3.400KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 2100 mm
- Maximum outer diameter: 142.0 mm
- Minimum outer diameter: 84.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTM3.95KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 32 mm
- Length: 1800 mm
- Maximum outer diameter: 96.0 mm
- Minimum outer diameter: 62.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
42JTM3.240KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 24 ... 40 mm
- Length: 1800 mm
- Maximum outer diameter: 124.0 mm
- Minimum outer diameter: 74.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTM3.300KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 1800 mm
- Maximum outer diameter: 138.0 mm
- Minimum outer diameter: 78.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTM3.400KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 32 ... 48 mm
- Length: 2100 mm
- Maximum outer diameter: 152.0 mm
- Minimum outer diameter: 84.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTM3.95KB
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 34 mm
- Length: 1800 mm
- Maximum outer diameter: 98.0 mm
- Minimum outer diameter: 68.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
Description
Description
Standards
-
TestCENELEC HD 629.2; IEC 60055-1
Application
JTM3 KB heat-shrink transition joints are designed to connect three core plastic insulated cables with Cu wire/tape screen armored and three core paper insulated armored PILC (HSL) cables.
Technical characteristics
JTM3 KB is the NEW high performance, compact and easy to install joint.
A single body with all the electrical functions integrated!
The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV and up to 400 mm².
For 36/42kV a double dual layer tube is used.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
Screen connection and armor continuity material whether SWA, STA, DSTA are included in the kit
MC types are supplied with GPH® mechanical connectors.
The outer sheath is restored with heavy/medium wall adhesive lined tubing.

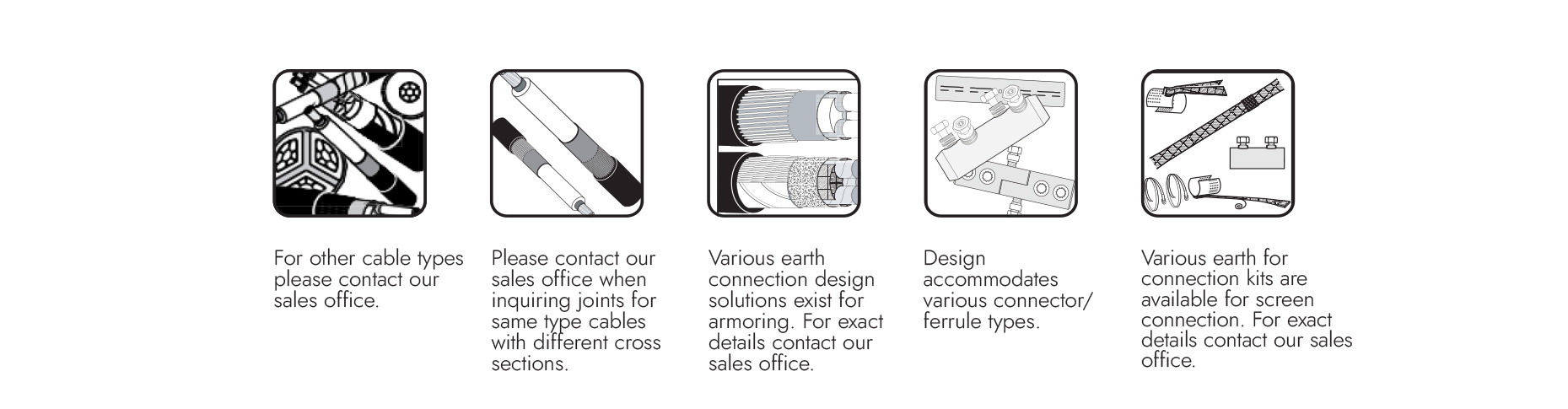

Recommandations JTM3 KB
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
