MV Transition Joints JTM3 W
MV Transition Joints JTM3 W

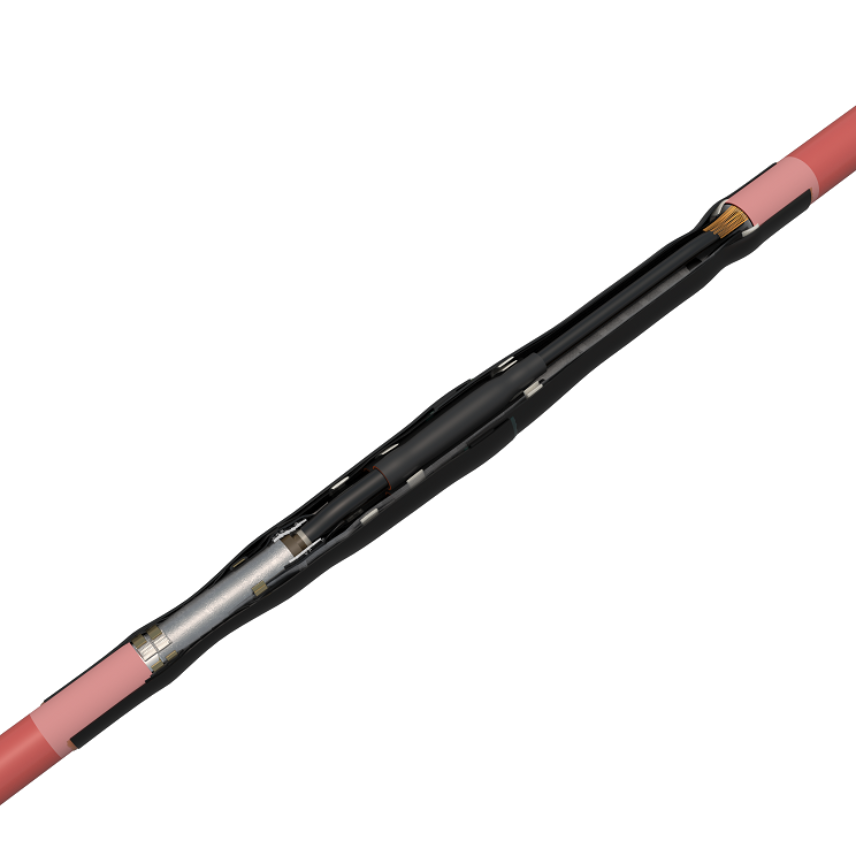

Heat-shrink MV transition joints between three core polymeric cables with Cu wire screen and three core paper insulated PILC (1 Lead) armored/unarmored cables. Up to 19/33 (36) kV.
Read more17JTM3.240W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 16 ... 32 mm
- Length: 1600 mm
- Maximum outer diameter: 92.0 mm
- Minimum outer diameter: 42.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17JTM3.300W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 18 ... 34 mm
- Length: 1600 mm
- Maximum outer diameter: 96.0 mm
- Minimum outer diameter: 44.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17JTM3.400W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1600 mm
- Maximum outer diameter: 102.0 mm
- Minimum outer diameter: 54.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17JTM3.95W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 12 ... 24 mm
- Length: 1500 mm
- Maximum outer diameter: 74.0 mm
- Minimum outer diameter: 32.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
24JTM3.240W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 20 ... 36 mm
- Length: 1600 mm
- Maximum outer diameter: 98.0 mm
- Minimum outer diameter: 50.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24JTM3.300W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1600 mm
- Maximum outer diameter: 106.0 mm
- Minimum outer diameter: 52.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24JTM3.400W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 24 ... 40 mm
- Length: 1600 mm
- Maximum outer diameter: 116.0 mm
- Minimum outer diameter: 64.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24JTM3.95W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 18 ... 28 mm
- Length: 1500 mm
- Maximum outer diameter: 82.0 mm
- Minimum outer diameter: 44.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
36JTM3.240W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1800 mm
- Maximum outer diameter: 120.0 mm
- Minimum outer diameter: 68.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTM3.300W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 24 ... 42 mm
- Length: 1800 mm
- Maximum outer diameter: 132.0 mm
- Minimum outer diameter: 72.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTM3.400W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 1800 mm
- Maximum outer diameter: 142.0 mm
- Minimum outer diameter: 84.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTM3.95W
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 32 mm
- Length: 1700 mm
- Maximum outer diameter: 96.0 mm
- Minimum outer diameter: 62.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
Description
Description
Standards
-
TestCENELEC HD 629.2; IEC 60055-1
Application
JTM3 heat-shrink transition joints are designed to connect three core plastic insulated cables with Cu wire screen and three paper insulated armored PILC cables.
Technical characteristics
JTM3 is the NEW high performance, compact and easy to install joint.
A single body with all the electrical functions integrated!
The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV and up to 400 mm².
For 36kV a double dual layer tube is used.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
MC types are supplied with GPH® mechanical connectors.
The outer sheath is restored with heavy/medium wall adhesive lined tubing.

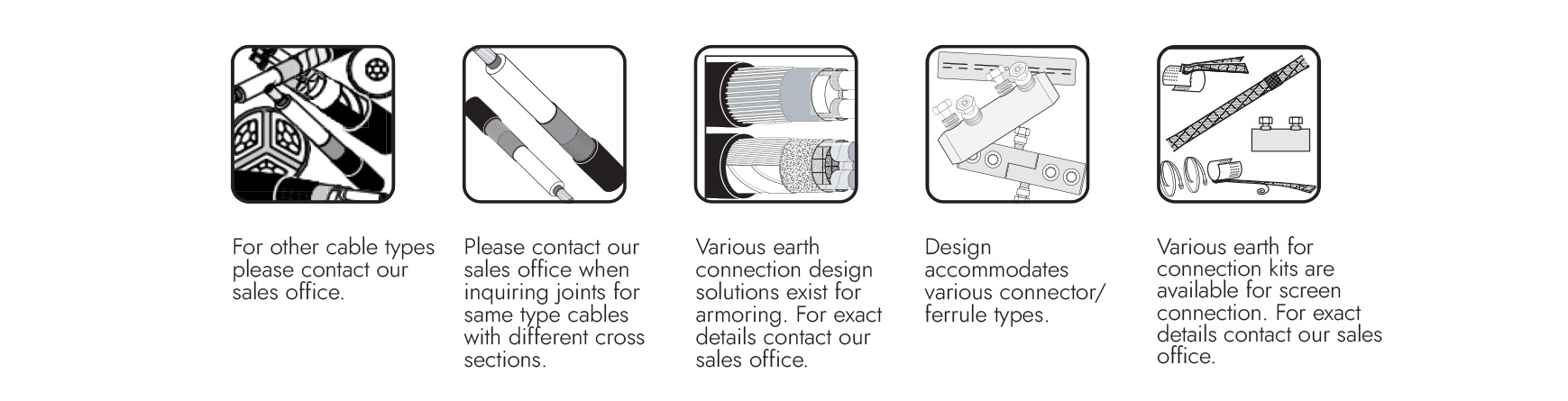

Recommandations JTM3 W
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
