MV Transition Joints JTM1 W (CS)

Application

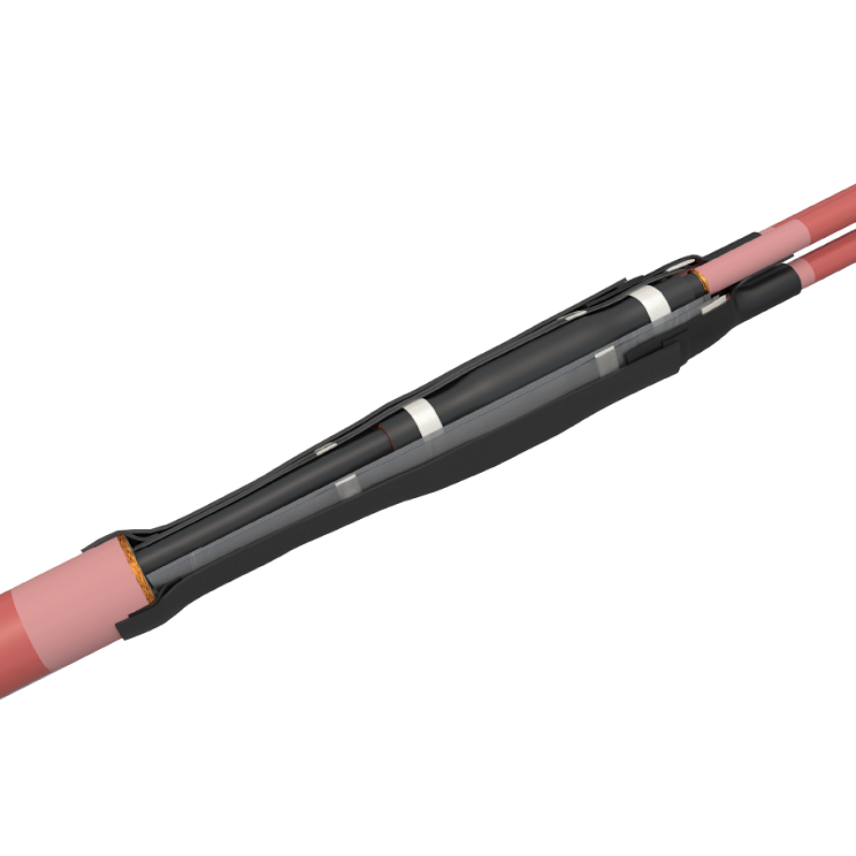

JTM1 heat-shrink transition joints are designed to connect single core plastic insulated cables with Cu wire or Cu tape screen and paper insulated PILC cables.

Technical characteristics

JTM is the NEW high performance, compact and easy to install joint.
A single body with all the electrical functions integrated!
The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV and up to 400 mm² .
From 36kV and sections from 400 up to 1000 mm² a double dual layer tube is used.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
MC types are supplied with GPH^® mechanical connectors.
The outer sheath is restored with heavy/medium wall adhesive lined tubing.
