MV Transition Joints JTS3.1 CW
MV Transition Joints JTS3.1 CW
Heat-shrink MV transition joints between unarmored three core polymeric cables with Cu wire screen and N°3 single core cables with polymeric insulation and Cu wire screen. Up to 20 / 35 (42) kV.
Read more17JTS3.1.240CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 16 ... 32 mm
- Length: 900 mm
- Maximum outer diameter: 44.0 mm
- Minimum outer diameter: 24.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17JTS3.1.300CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 18 ... 34 mm
- Length: 1100 mm
- Maximum outer diameter: 48.0 mm
- Minimum outer diameter: 26.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17JTS3.1.400CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1100 mm
- Maximum outer diameter: 52.0 mm
- Minimum outer diameter: 30.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
17JTS3.1.95CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 12 ... 24 mm
- Length: 900 mm
- Maximum outer diameter: 38.0 mm
- Minimum outer diameter: 20.0 mm
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
24JTS3.1.240CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 20 ... 36 mm
- Length: 1100 mm
- Maximum outer diameter: 48.0 mm
- Minimum outer diameter: 26.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24JTS3.1.300CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1100 mm
- Maximum outer diameter: 52.0 mm
- Minimum outer diameter: 28.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24JTS3.1.400CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 24 ... 40 mm
- Length: 1100 mm
- Maximum outer diameter: 54.0 mm
- Minimum outer diameter: 32.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
24JTS3.1.95CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 18 ... 28 mm
- Length: 900 mm
- Maximum outer diameter: 40.0 mm
- Minimum outer diameter: 24.0 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
36JTS3.1.240CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1400 mm
- Maximum outer diameter: 52.0 mm
- Minimum outer diameter: 34.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS3.1.300CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 24 ... 42 mm
- Length: 1400 mm
- Maximum outer diameter: 54.0 mm
- Minimum outer diameter: 34.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS3.1.400CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 1400 mm
- Maximum outer diameter: 60.0 mm
- Minimum outer diameter: 38.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS3.1.95CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 32 mm
- Length: 1200 mm
- Maximum outer diameter: 44.0 mm
- Minimum outer diameter: 30.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
42JTS3.1.240CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 26 ... 42 mm
- Length: 1400 mm
- Maximum outer diameter: 54.0 mm
- Minimum outer diameter: 38.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS3.1.300CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 1400 mm
- Maximum outer diameter: 60.0 mm
- Minimum outer diameter: 40.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS3.1.400CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 32 ... 48 mm
- Length: 1400 mm
- Maximum outer diameter: 64.0 mm
- Minimum outer diameter: 42.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS3.1.95CW
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 34 mm
- Length: 1200 mm
- Maximum outer diameter: 50.0 mm
- Minimum outer diameter: 34.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
Description
Description
Standards
-
ProductIEC 60502-4
-
TestCENELEC HD 629.1
Application
JTS3.1 CW heat-shrink transition joints are designed to connect three core plastic insulated cables with 3 single core cables.
Technical characteristics
JTS is the NEW high performance, compact and easy to install joint.
A single body with all the electrical functions integrated!
The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV.
From 36kV a double dual layer tube is used.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
- JTS3.1 CW type for CWS cables
- JTS3.1 AW type for CTS cables
- JTS3.1 FC type for Al foil screen cables.
MC types are supplied with GPH® mechanical connectors.
- 17JTS type tested with BIL at 95 kV, PD at 2Uo (≤ 10 pC)
- 24JTS type tested with BIL at 150 kV, PD at 2Uo (≤ 10 pC)
- 36JTS type tested with BIL at 200 kV, PD at 2Uo (≤ 10 pC)

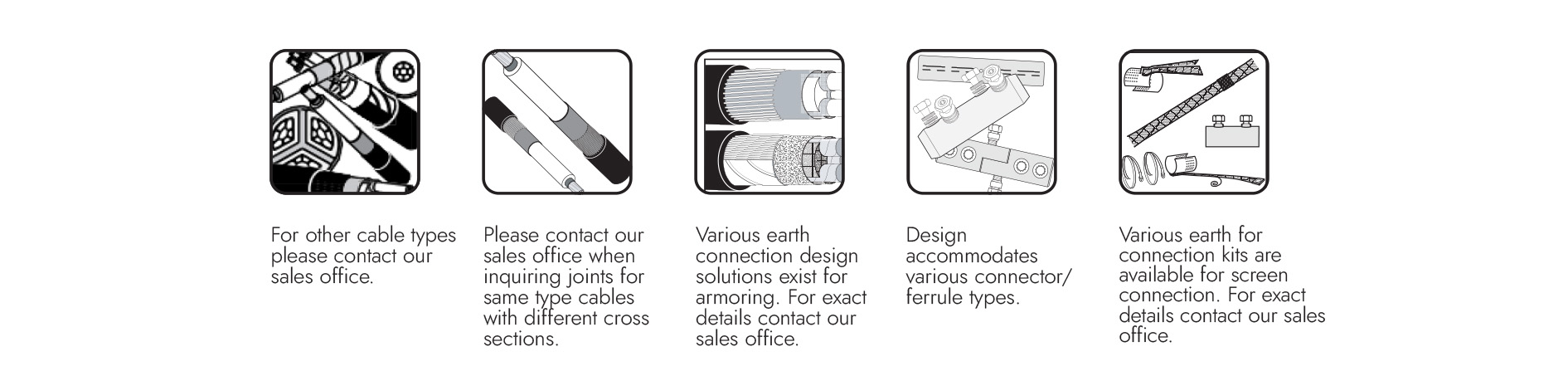

Recommandations JTS3.1 CW
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
