MV Straight Joints 52GTS.1

Products

52GTS1.1200i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 630 ... 1200 mm²
  • Diameter over insulation, range: 46 ... 64 mm
  • Length: 1200 mm
  • Maximum outer diameter: 70.0 mm
  • Minimum outer diameter: 52.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



52GTS1.240i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 28 ... 40 mm
  • Length: 1200 mm
  • Maximum outer diameter: 46.0 mm
  • Minimum outer diameter: 32.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



52GTS1.400i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 32 ... 46 mm
  • Length: 1200 mm
  • Maximum outer diameter: 50.0 mm
  • Minimum outer diameter: 36.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



52GTS1.630i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 38 ... 52 mm
  • Length: 1200 mm
  • Maximum outer diameter: 56.0 mm
  • Minimum outer diameter: 44.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



52GTS1.95i

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 26 ... 32 mm
  • Length: 1000 mm
  • Maximum outer diameter: 44.0 mm
  • Minimum outer diameter: 30.0 mm
  • Rated Voltage Uo/U (Um): 26 / 45 (52) kV



DO NOT DELETE

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 0 ... 0 mm²
  • Diameter over insulation, range: 0 ... 0 mm
  • Length: 0 mm
  • Maximum outer diameter: 0.0 mm
  • Minimum outer diameter: 0.0 mm
  • Rated Voltage Uo/U (Um): N/A



Description

Description

Standards

  • Test
    IEC 60840

Application

52GTS1 heat-shrink straight joints are designed to connect single core plastic insulated cables with Cu wires screen with Um=52kV.

Technical characteristics

Conductive tape is used to fill the gaps and cover the connector.
The screen cut on both sides are covered with stress grading mastic plates as well as the connector area.
The joint body consists of a stress control tubing, an insulating, heavy wall tubing and finally heavy dual wall screened insulating tube.
52GTS1. I type for CWS cables
52GTS1. AW type for CTS cables
52GTS.1 FC type for Al foil screen cables
MC types are supplied with GPH® mechanical connectors.
The outer sheath is restored with heavy wall adhesive lined tubing.

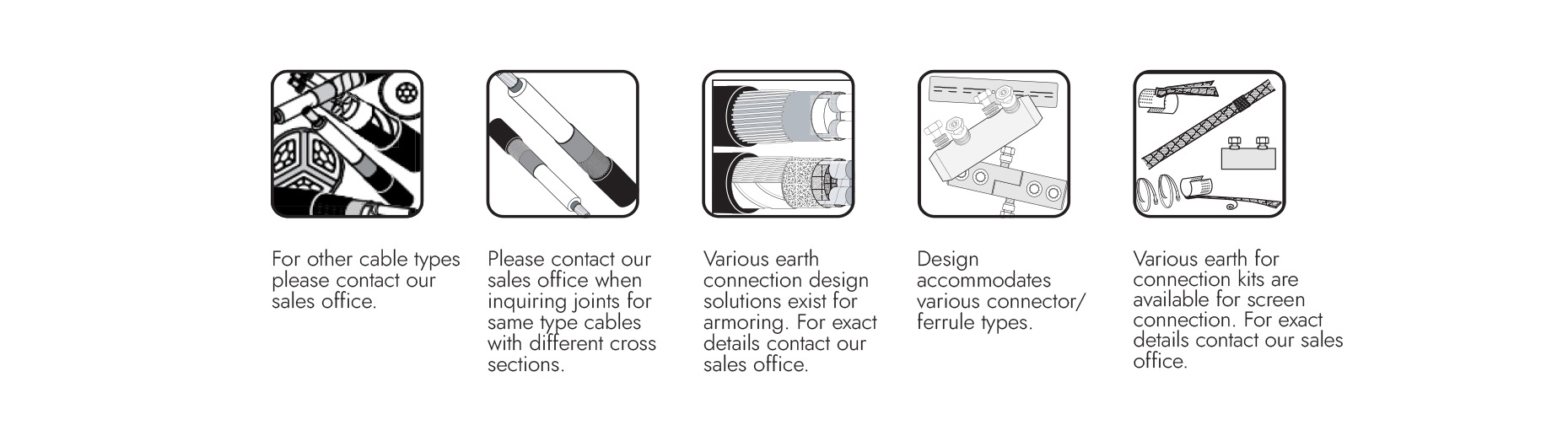

Recommandations 52GTS.1

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Protection
Polyammide based glue
Screen
Copper wire

Usage characteristics

Usage characteristics

Water sealing
Mastic

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
