MV Straight Joints 17/24JTS3 K

Products

17JTS3.240K

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 16 ... 32 mm
  • Length: 1400 mm
  • Maximum outer diameter: 92.0 mm
  • Minimum outer diameter: 48.0 mm
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



17JTS3.300K

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 18 ... 34 mm
  • Length: 1400 mm
  • Maximum outer diameter: 98.0 mm
  • Minimum outer diameter: 56.0 mm
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



17JTS3.400K

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 22 ... 38 mm
  • Length: 1600 mm
  • Maximum outer diameter: 102.0 mm
  • Minimum outer diameter: 64.0 mm
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



17JTS3.95K

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 12 ... 24 mm
  • Length: 1400 mm
  • Maximum outer diameter: 74.0 mm
  • Minimum outer diameter: 40.0 mm
  • Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV



24JTS3.240K

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 20 ... 36 mm
  • Length: 1400 mm
  • Maximum outer diameter: 98.0 mm
  • Minimum outer diameter: 54.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



24JTS3.300K

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 22 ... 38 mm
  • Length: 1400 mm
  • Maximum outer diameter: 98.0 mm
  • Minimum outer diameter: 58.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



24JTS3.400K

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 24 ... 40 mm
  • Length: 1600 mm
  • Maximum outer diameter: 106.0 mm
  • Minimum outer diameter: 66.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



24JTS3.95K

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 18 ... 28 mm
  • Length: 1400 mm
  • Maximum outer diameter: 82.0 mm
  • Minimum outer diameter: 48.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



Description

Description

Standards

  • Product
    IEC 60502-4
  • Test
    CENELEC HD 629.1

Application

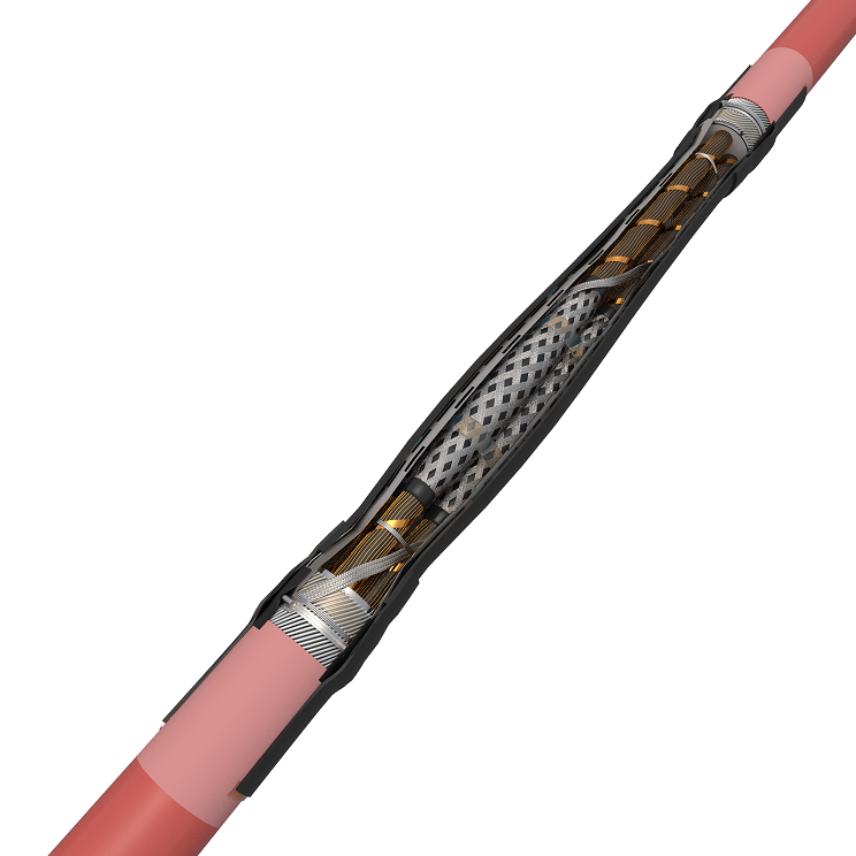

17/24JTS3 K heat-shrink straight joints are designed for armored, plastic insulated cables with Cu wire or Cu tape screen, to accommodate either crimped or mechanical connectors.

Technical characteristics

17/24JTS is the NEW high performance, compact and easy to install joint.
A single body with all the electrical functions integrated!
The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
Screen connection and armor continuity material whether SWA, STA, DSTA are included in the kit.

  • 17JTS type tested with BIL at 95 kV, PD at 2Uo (≤ 10 pC)
  • 24JTS type tested with BIL at 150 kV, PD at 2Uo (≤ 10 pC)

Recommandations JTS3 K

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Protection
Polyammide based glue
Screen
Copper wires or tapes

Usage characteristics

Usage characteristics

Water sealing
Mastic

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
