MV Straight Joints 36/42JTS3 CW

Products

36JTS3.240CW

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 22 ... 38 mm
  • Length: 1600 mm
  • Maximum outer diameter: 112.0 mm
  • Minimum outer diameter: 66.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



36JTS3.300CW

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 24 ... 42 mm
  • Length: 1600 mm
  • Maximum outer diameter: 118.0 mm
  • Minimum outer diameter: 70.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



36JTS3.400CW

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 28 ... 46 mm
  • Length: 1800 mm
  • Maximum outer diameter: 132.0 mm
  • Minimum outer diameter: 80.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



36JTS3.95CW

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 20 ... 32 mm
  • Length: 1600 mm
  • Maximum outer diameter: 92.0 mm
  • Minimum outer diameter: 64.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



42JTS3.240CW

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 26 ... 42 mm
  • Length: 1600 mm
  • Maximum outer diameter: 114.0 mm
  • Minimum outer diameter: 66.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



42JTS3.300CW

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 28 ... 46 mm
  • Length: 1600 mm
  • Maximum outer diameter: 122.0 mm
  • Minimum outer diameter: 70.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



42JTS3.400CW

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 32 ... 48 mm
  • Length: 1800 mm
  • Maximum outer diameter: 136.0 mm
  • Minimum outer diameter: 80.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



42JTS3.95CW

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 20 ... 34 mm
  • Length: 1600 mm
  • Maximum outer diameter: 94.0 mm
  • Minimum outer diameter: 64.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



Description

Description

Standards

  • Product
    IEC 60502-4
  • Test
    CENELEC HD 629.1

Application

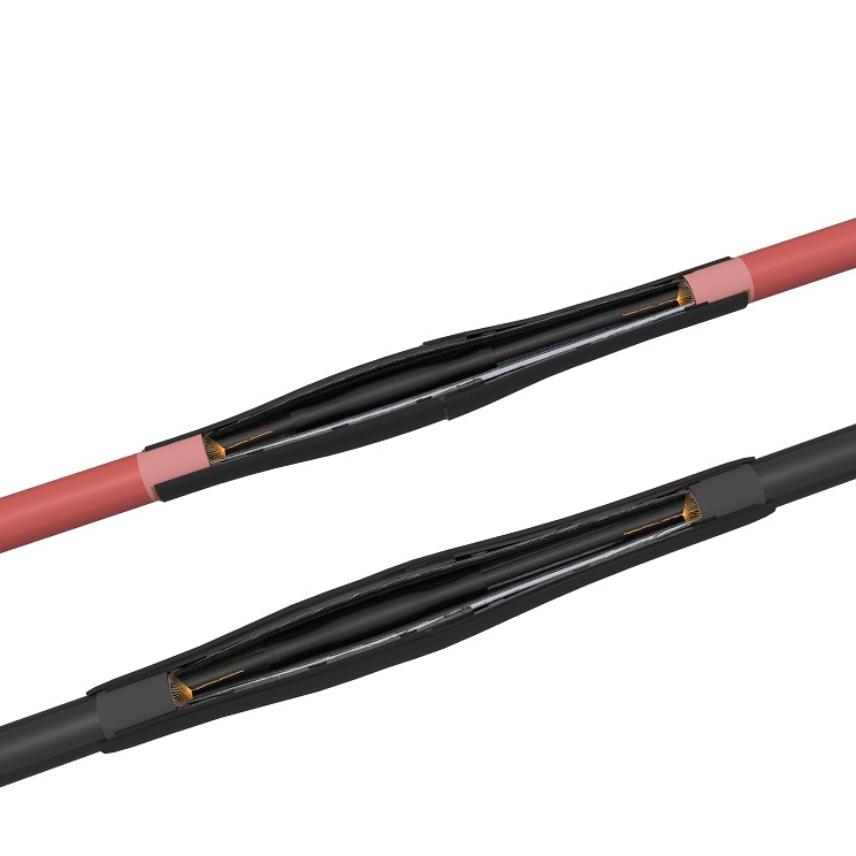

36/42JTS3 CW heat-shrink straight joints are designed for unarmoured, plastic insulated cables with Cu wire, to accommodate either crimped or mechanical connectors.

Technical characteristics

36/42JTS is the NEW high performance, compact and easy to install joint.
Double bodies with all the electrical functions integrated!
The Nexans 36/42JTS is an integrated coextruded “stress control field + insulating” tube nested in a coextruded “insulating + conductive” tube, which can withstand high voltage applications up to 42kV.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
The electrical continuity of the screen is achieved with a standard metallic tape plus earthing ferrules.
The outer sheath is restored with heavy/medium wall adhesive lined tubing.
Vapor barrier protection available upon request (VS).
MC types are supplied with “Nexans GPH” mechanical connectors.

  • 17JTS type tested with BIL at 95 kV, PD at 2Uo (≤ 10 pC)
  • 24JTS type tested with BIL at 150 kV, PD at 2Uo (≤ 10 pC)

Recommandations JTS3 CW

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Protection
Polyammide based glue
Screen
Copper wire

Usage characteristics

Usage characteristics

Water sealing
Mastic

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
