24JTS3.95CW

Application

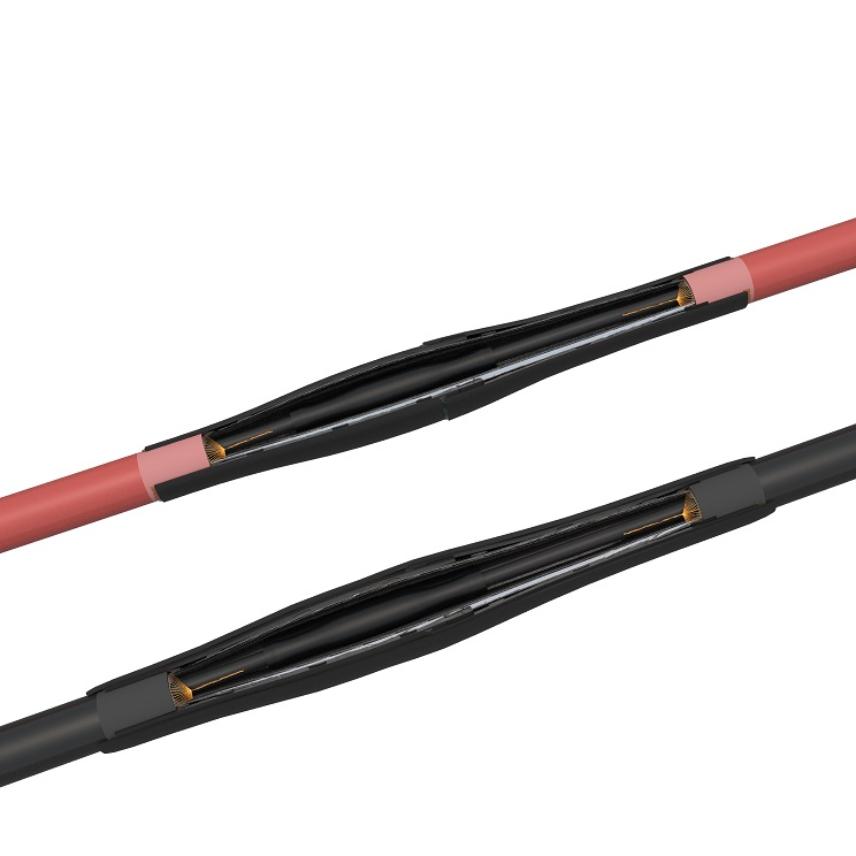

17/24JTS3 CW heat-shrink straight joints are designed for unarmoured, plastic insulated cables with Cu wire screen, to accommodate either crimped or mechanical connectors.

Technical characteristics

17/24JTS is the NEW high performance, compact and easy to install joint.
A single body with all the electrical functions integrated!
The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure
a Faraday cage and smooth the effect of the electrical field in the connector area.
The electrical continuity of the screen is ensured with a standard metallic tape plus earthing ferrules.
The outer sheath is restored with heavy/medium wall adhesive lined tubing.
Vapor barrier protection available upon request (VS).
MC types are supplied with “Nexans GPH” mechanical connectors.

• 17JTS type tested with BIL at 95 kV, PD at 2Uo (≤ 10 pC)
• 24JTS type tested with BIL at 150 kV, PD at 2Uo (≤ 10 pC)
