MV Straight Joints 36/42JTS1 KZ

Products

36JTS1.1000KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 42 ... 60 mm
  • Length: 1500 mm
  • Maximum outer diameter: 92.0 mm
  • Minimum outer diameter: 52.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



36JTS1.1200KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 800 ... 1200 mm²
  • Diameter over insulation, range: 48 ... 64 mm
  • Length: 1500 mm
  • Maximum outer diameter: 102.0 mm
  • Minimum outer diameter: 56.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



36JTS1.240KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 22 ... 38 mm
  • Length: 1000 mm
  • Maximum outer diameter: 62.0 mm
  • Minimum outer diameter: 38.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



36JTS1.300KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 24 ... 42 mm
  • Length: 1000 mm
  • Maximum outer diameter: 64.0 mm
  • Minimum outer diameter: 42.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



36JTS1.400KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 28 ... 46 mm
  • Length: 1500 mm
  • Maximum outer diameter: 70.0 mm
  • Minimum outer diameter: 44.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



36JTS1.630KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 32 ... 52 mm
  • Length: 1500 mm
  • Maximum outer diameter: 82.0 mm
  • Minimum outer diameter: 48.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



36JTS1.95KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 20 ... 32 mm
  • Length: 1000 mm
  • Maximum outer diameter: 54.0 mm
  • Minimum outer diameter: 34.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV



42JTS1.1000KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 630 ... 1000 mm²
  • Diameter over insulation, range: 44 ... 62 mm
  • Length: 1500 mm
  • Maximum outer diameter: 96.0 mm
  • Minimum outer diameter: 56.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



42JTS1.1200KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 800 ... 1200 mm²
  • Diameter over insulation, range: 50 ... 66 mm
  • Length: 1500 mm
  • Maximum outer diameter: 108.0 mm
  • Minimum outer diameter: 58.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



42JTS1.240KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 70 ... 240 mm²
  • Diameter over insulation, range: 26 ... 42 mm
  • Length: 1000 mm
  • Maximum outer diameter: 68.0 mm
  • Minimum outer diameter: 40.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



42JTS1.300KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 95 ... 300 mm²
  • Diameter over insulation, range: 28 ... 46 mm
  • Length: 1000 mm
  • Maximum outer diameter: 72.0 mm
  • Minimum outer diameter: 42.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



42JTS1.400KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 185 ... 400 mm²
  • Diameter over insulation, range: 32 ... 48 mm
  • Length: 1500 mm
  • Maximum outer diameter: 76.0 mm
  • Minimum outer diameter: 46.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



42JTS1.630KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 400 ... 630 mm²
  • Diameter over insulation, range: 34 ... 56 mm
  • Length: 1500 mm
  • Maximum outer diameter: 84.0 mm
  • Minimum outer diameter: 50.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



42JTS1.95KZ

Nexans ref.

  • Packaging: Unit
  • Conductor cross-section, range: 25 ... 95 mm²
  • Diameter over insulation, range: 20 ... 34 mm
  • Length: 1000 mm
  • Maximum outer diameter: 56.0 mm
  • Minimum outer diameter: 36.0 mm
  • Rated Voltage Uo/U (Um): 20 / 35 (42) kV



Description

Description

Standards

  • Product
    IEC 60502-4
  • Test
    CENELEC HD 629.1

Application

36/42JTS1 KZ heat-shrink straight joints are designed for armored, plastic insulated cables with Cu wire or Cu tape screen Armored (AWA/ATA), to accommodate either crimped or mechanical connectors.

Technical characteristics

36/42JTS KZ is the NEW high performance, compact and easy to install joint.
Double bodies with all the electrical functions integrated.

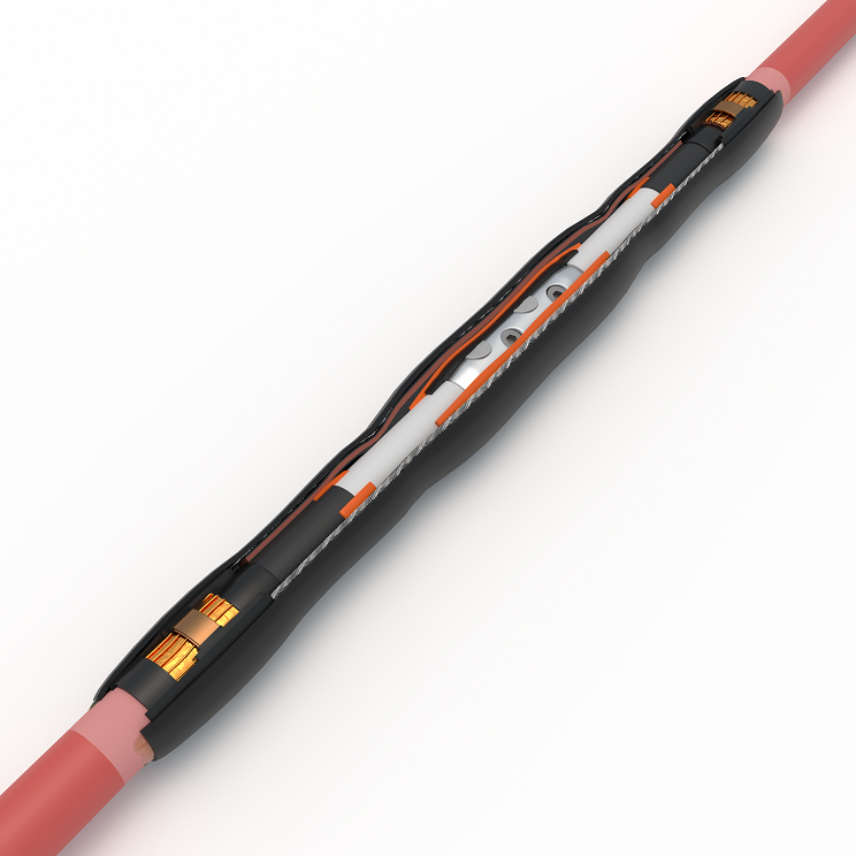

The Nexans 36/42JTS KZ is an integrated coextruded “stress control field + insulating” tube nested in a coextruded “insulating + conductive” tube which can withstand high voltage applications up to 42kV.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
The electrical continuity of the screen (both Cu tape or Cu wire) is ensured with a standard tinned copper tape plus an earthing ferrule or braid.
Armor mechanical protection and electrical continuity is achieved by using a wraparound aluminum canister.
MC types are supplied with GPH® mechanical connectors.

  • 36 JTS type tested with BIL 200 kV at 2Uo (≤ 10 pC)

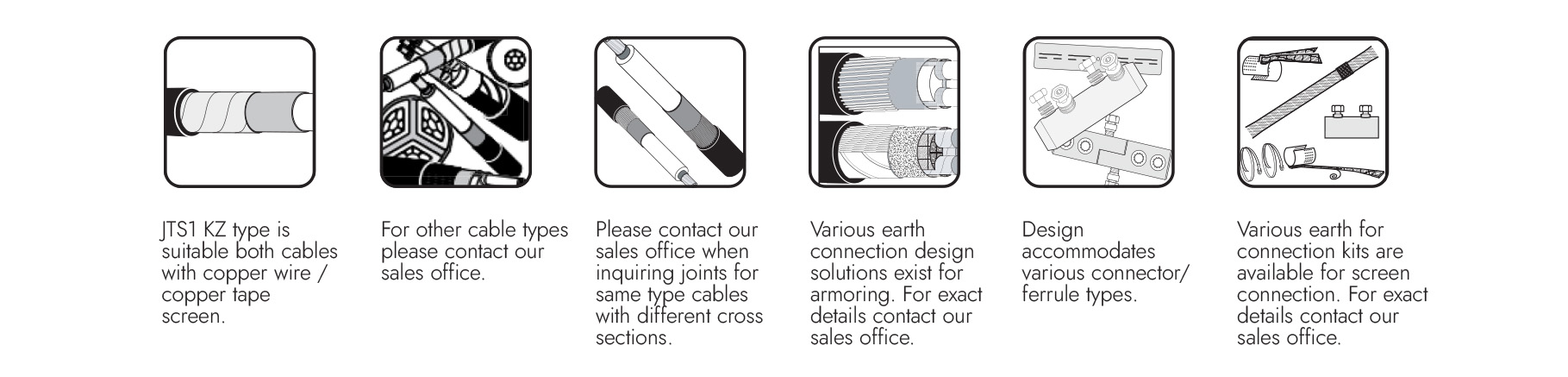

Recommandations JTS1 KZ

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Protection
Polyammide based glue
Screen
Copper wires or tapes

Usage characteristics

Usage characteristics

Water sealing
Mastic

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
