MV Straight Joints 36/42JTS1 FC
MV Straight Joints 36/42JTS1 FC
Heat-shrink MW straight joints for unarmored single core polymeric cables with Al tape screen. Up to 20.8/36 (42) kV.
Read more36JTS1.1000FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 630 ... 1000 mm²
- Diameter over insulation, range: 42 ... 60 mm
- Length: 1000 mm
- Maximum outer diameter: 76.0 mm
- Minimum outer diameter: 48.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS1.1200FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 800 ... 1200 mm²
- Diameter over insulation, range: 48 ... 64 mm
- Length: 1000 mm
- Maximum outer diameter: 78.0 mm
- Minimum outer diameter: 54.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS1.240FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 750 mm
- Maximum outer diameter: 52.0 mm
- Minimum outer diameter: 34.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS1.300FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 24 ... 42 mm
- Length: 750 mm
- Maximum outer diameter: 54.0 mm
- Minimum outer diameter: 34.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS1.400FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 1000 mm
- Maximum outer diameter: 60.0 mm
- Minimum outer diameter: 38.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS1.630FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 32 ... 52 mm
- Length: 1000 mm
- Maximum outer diameter: 66.0 mm
- Minimum outer diameter: 44.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS1.95FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 32 mm
- Length: 750 mm
- Maximum outer diameter: 44.0 mm
- Minimum outer diameter: 30.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
42JTS1.1000FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 630 ... 1000 mm²
- Diameter over insulation, range: 44 ... 62 mm
- Length: 1000 mm
- Maximum outer diameter: 78.0 mm
- Minimum outer diameter: 50.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS1.1200FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 800 ... 1200 mm²
- Diameter over insulation, range: 50 ... 66 mm
- Length: 1000 mm
- Maximum outer diameter: 80.0 mm
- Minimum outer diameter: 56.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS1.240FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 26 ... 42 mm
- Length: 750 mm
- Maximum outer diameter: 54.0 mm
- Minimum outer diameter: 38.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS1.300FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 750 mm
- Maximum outer diameter: 60.0 mm
- Minimum outer diameter: 40.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS1.400FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 32 ... 48 mm
- Length: 1000 mm
- Maximum outer diameter: 64.0 mm
- Minimum outer diameter: 42.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS1.630FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 400 ... 630 mm²
- Diameter over insulation, range: 34 ... 56 mm
- Length: 1000 mm
- Maximum outer diameter: 68.0 mm
- Minimum outer diameter: 46.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS1.95FC
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 34 mm
- Length: 750 mm
- Maximum outer diameter: 50.0 mm
- Minimum outer diameter: 34.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
Description
Description
Standards
-
ProductIEC 60502-4
-
TestCENELEC HD 629.1
Application
36/42JTS1 FC heat-shrink straight joints are designed for unarmored, plastic insulated cables with Al tape screen, to accommodate either crimped or mechanical connectors.
Technical characteristics
36/42 JTS1 FC is the NEW high performance, compact and easy to install joint.
The Nexans 36/42JTS FC is an integrated coextruded “stress control field + insulating” tube nested in a coextruded “insulating + conductive” tube which can withstand high voltage applications up to 42kV.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
The electrical continuity of the screen is ensured by a tinned copper stocking with roll force springs, the contact from the cable Al foil and the stocking is made with “cheese grader + soldered earthing braids”.
WSK2.0 types are available for the same screen cable without cheese grader earthing system.(Tinned copper stocking and roll force springs).
- 36JTS type tested with BIL at 200 kV, PD at 2Uo (≤ 10 pC)

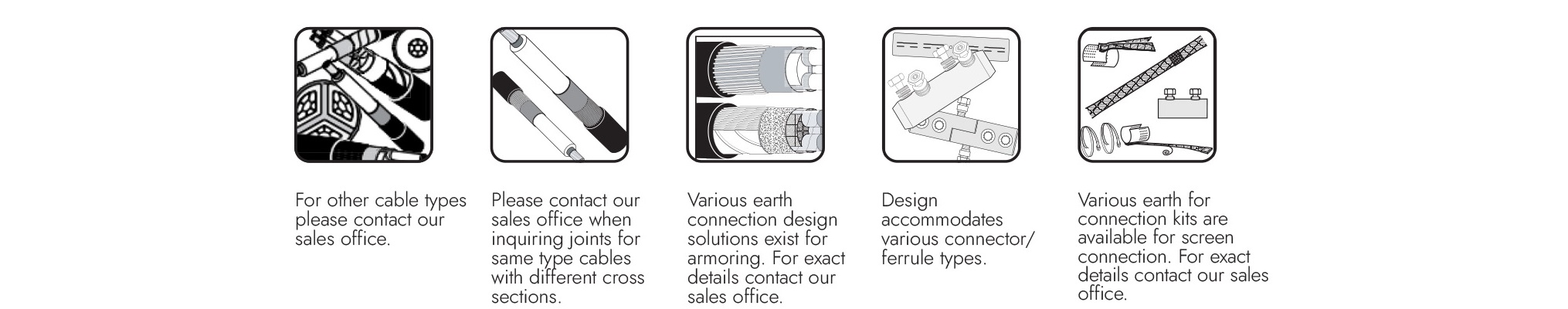

Recommandations JTS1 FC
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
