MV Straight Joints 24JTS1 FC

Application

24JTS1 FC heat-shrink straight joints are designed for unarmored, plastic insulated cables with Al tape screen, to accommodate either crimped or mechanical connectors.

Technical characteristics

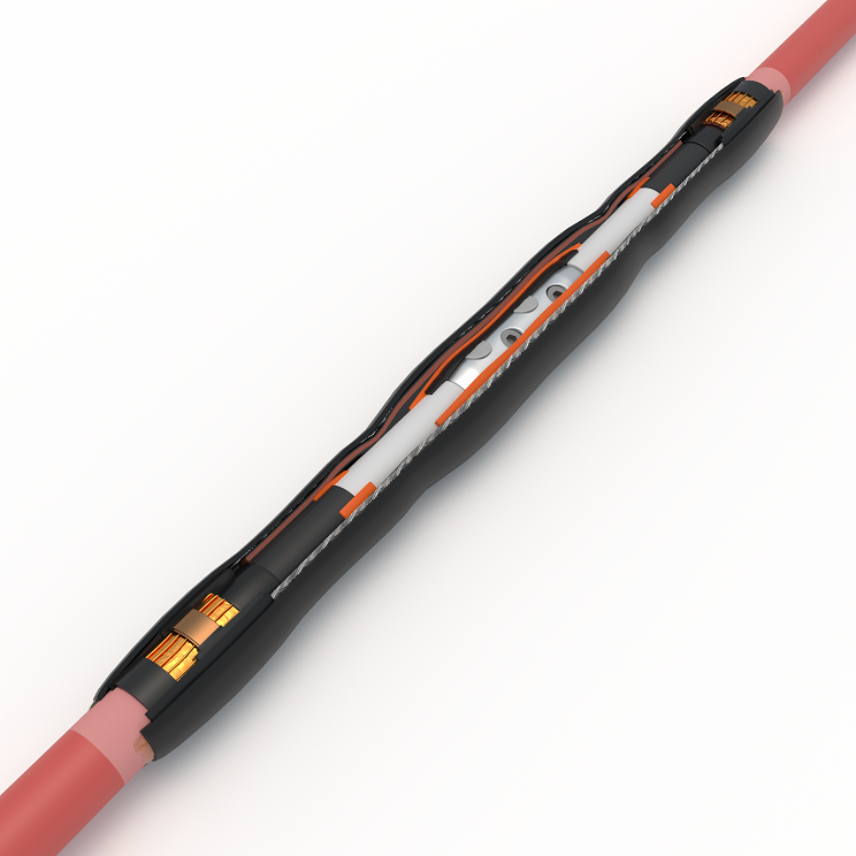

24JTS1 FC is the NEW high performance, compact and easy to install joint.
A single body with all the electrical functions integrated!
The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV and up to 400mm².
From 400 up to 1200 mm² a double dual layer tube is used.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
The electrical continuity of the screen is ensured by a tinned copper stocking with roll force springs, the contact from the cable Al foil and the stocking is made with “cheese grader + soldered earthing braids”.
WSK2.0 types are available for the same screen cable without cheese grader.

• 24JTS type tested with BIL at 150 kV, PD at 2Uo (≤ 10 pC)
