MV Straight Joints 17/24JTS1 W (CS)

Application

JTS1 heat-shrink straight joints are designed for unarmored, plastic insulated cables with Cu wire or Cu tape screen, to accommodate either crimped or mechanical connectors.

Technical characteristics

JTS is the NEW high performance, compact and easy to install joint.
A single body with all the electrical functions integrated!
The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV and up to 400 mm² .
From 400 up to 1200 mm² a double dual layer tube is used.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.

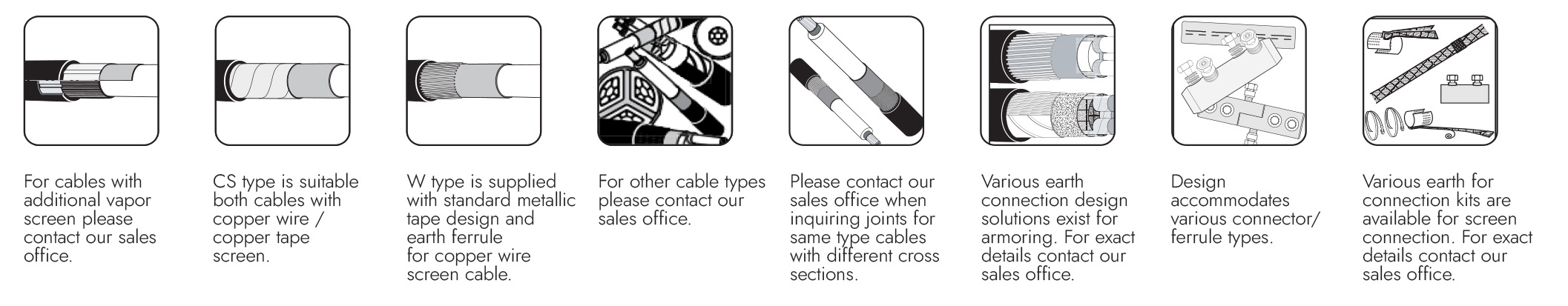

The electrical continuity of the screen (both Cu tape or Cu wire) is ensured by a tinned copper stocking with roll force springs (CS type) or for Cu wire with a standard tinned copper tape plus an earthing ferrule (W type).
MC types are supplied with GPH^® mechanical connectors.

• 17JTS type tested with BIL at 95 kV, PD at 2Uo (≤ 10 pC)
• 24JTS type tested with BIL at 150 kV, PD at 2Uo (≤ 10 pC)
