MV Bushings Q900AR-1
MV Bushings Q900AR-1
Equipment bushings connector for interface F. Up to 52 kV, 1250 A.
Read more
Description
Description
Standards
-
TestIEC 60840
-
InternationalIEC 60137
Application
Moulded epoxy insulated bushings for use in equipment, typically for transformers, switchgear, capacitors...
Technical characteristics
Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
Design Q900AR
Design legend Q900AR-1

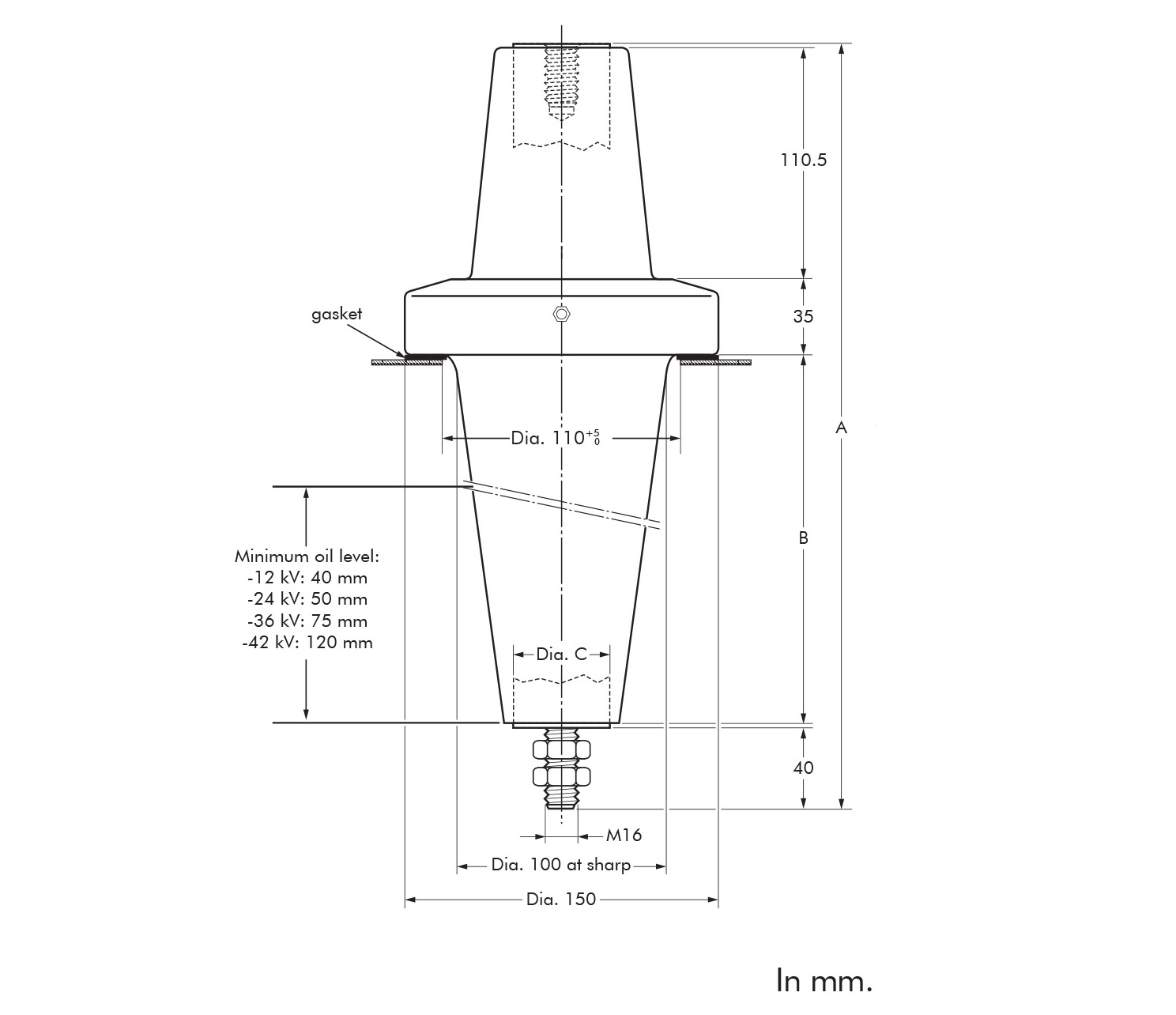

Dimensions Q(M)(H)900AR-1:
- A: 364 mm
- B: 175 mm
- Diam. C: 32 mm

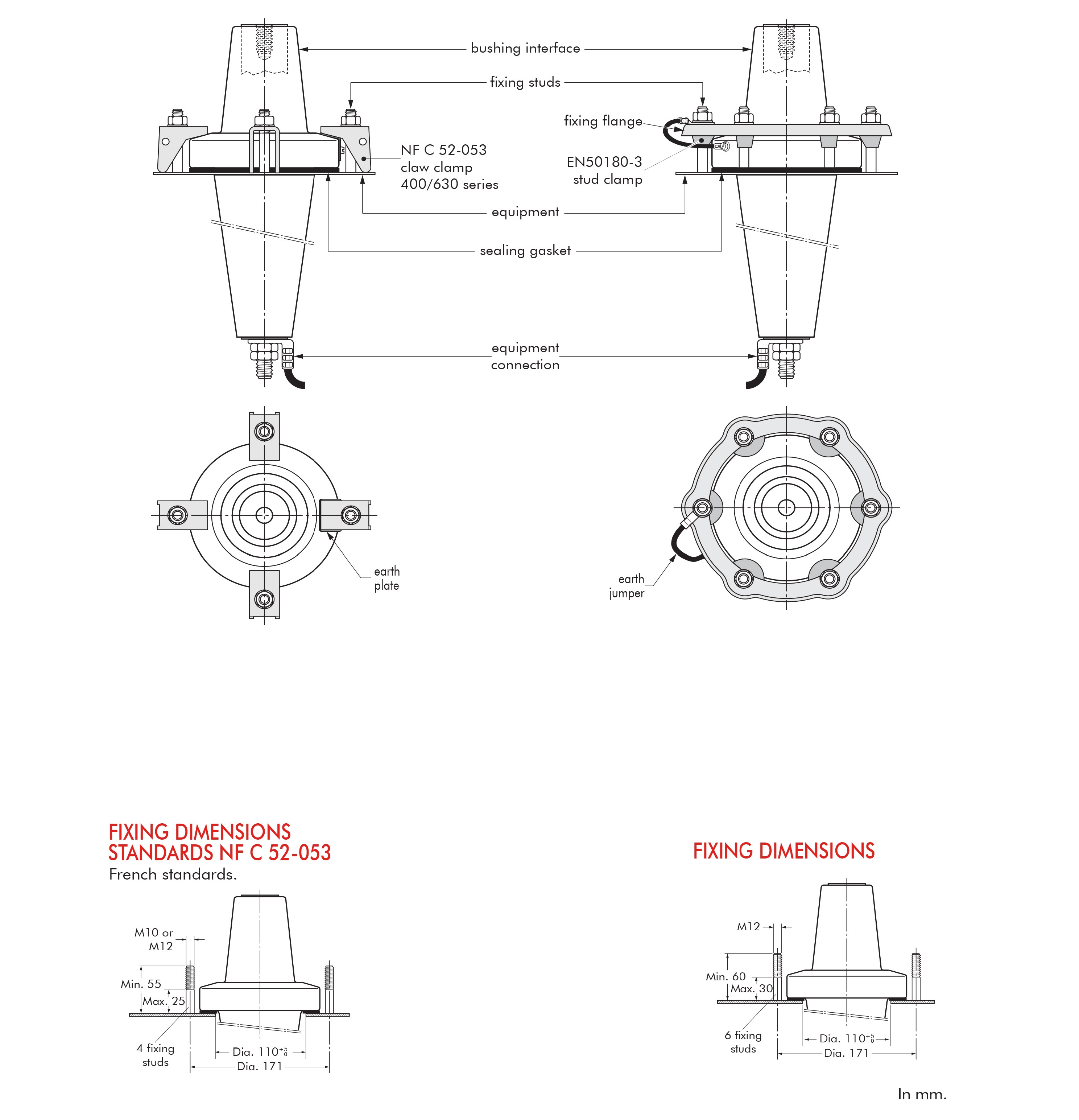

Drawings Q900AR
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Maximal partial discharge test
5 pC
Rated Voltage Uo/U (Um)
26 / 45 (52) kV
Rated current
1250 A
Usage characteristics
Usage characteristics
Field of application
Indoor, Outdoor
Interface
Interface F (2500 A)
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
