MV Bushings 750S1
MV Bushings 750S1
Equipment bushings connector for interface E. Up to 36 kV, 1250 A.
Read more
Description
Description
Standards
-
InternationalIEC 60137
Application
For use in equipment, typically for transformers, switchgear, capacitors...
Technical characteristics
Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
Design bushings Interface E

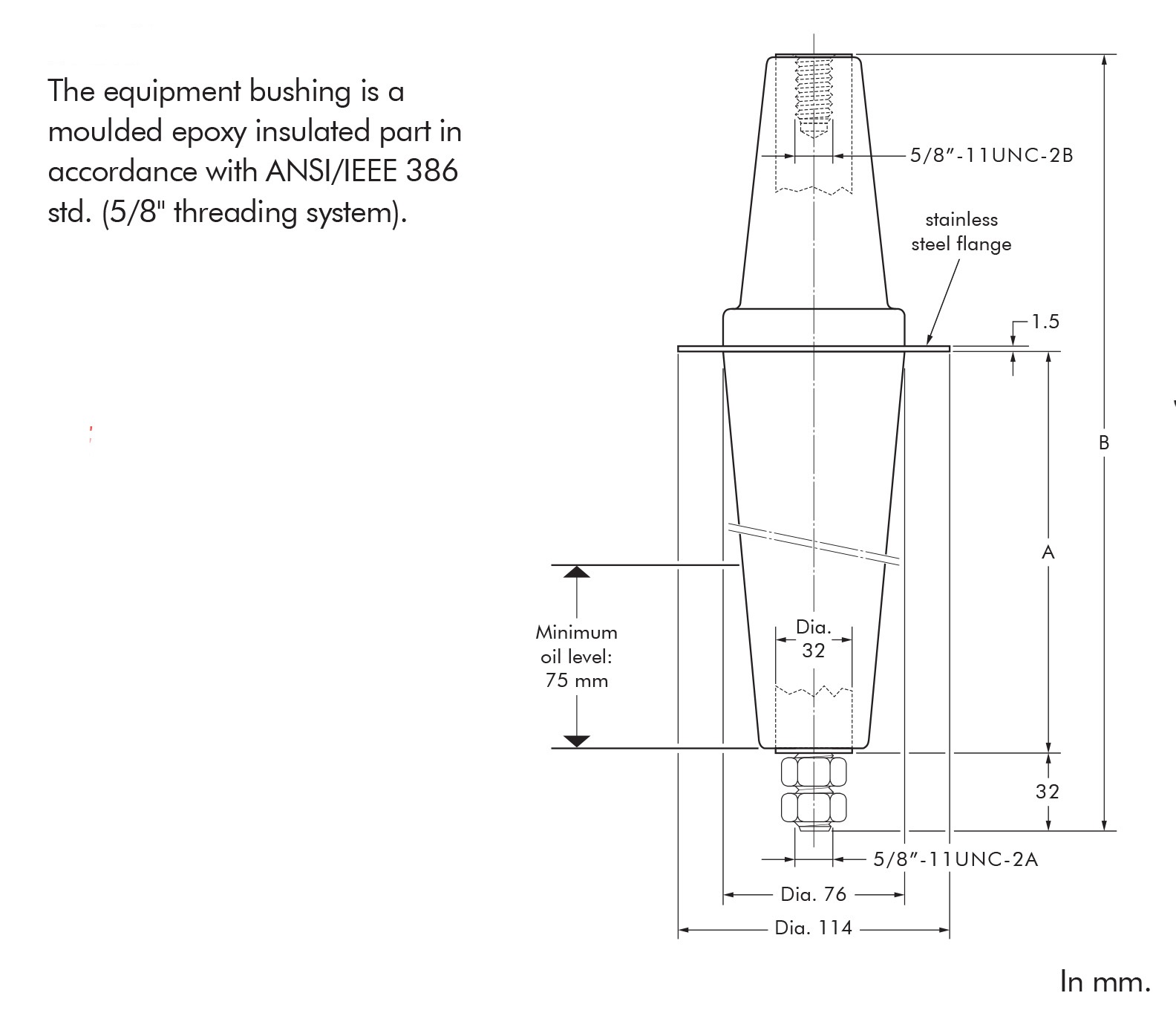

Design legend 750S1
Dimensions 750S1:
- A: 75 mm
- B: 235 mm
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
18 / 30 (36) kV
Rated current
800 A
Usage characteristics
Usage characteristics
Field of application
Indoor, Outdoor
Interface
E (800 – 1250 A)
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
