MV Bushings 400A-24B
MV Bushings 400A-24B
In-air termination for interface C. Up to 24 kV, 630 A.
Read more
Description
Description
Standards
-
ProductCENELEC EN 50180
-
InternationalIEC 60137
Application
For use in equipment insulated with air, typically for dry type transformers, motors, switchgear, capacitors...
Technical characteristics
Each bushing is tested for AC withstand prior to leaving the factory.

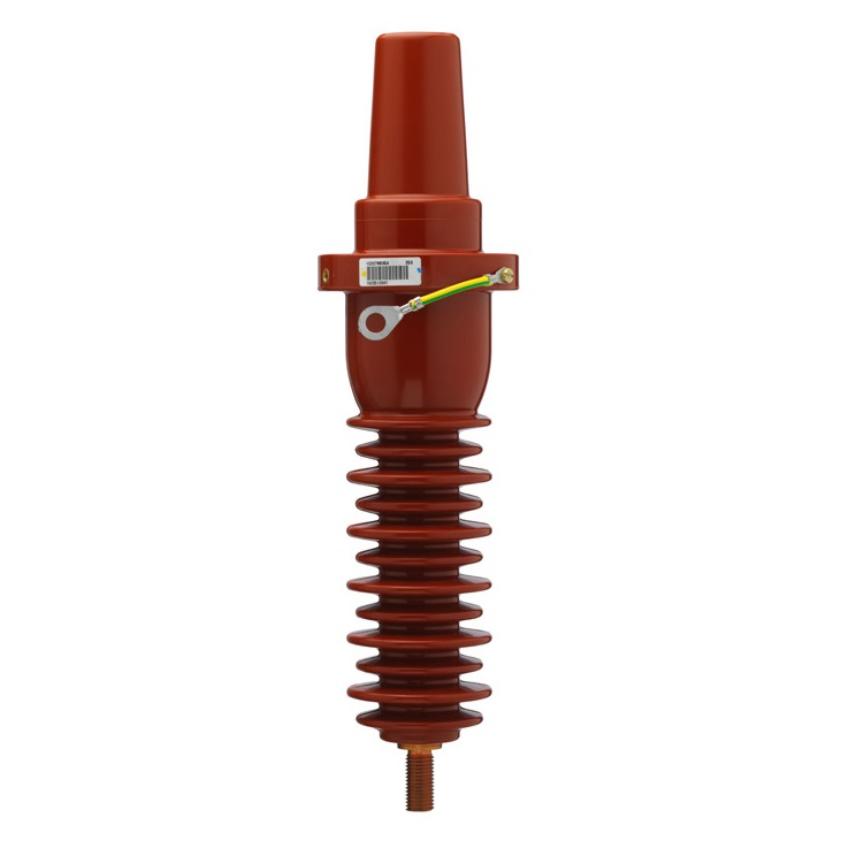

Design 400A-24B

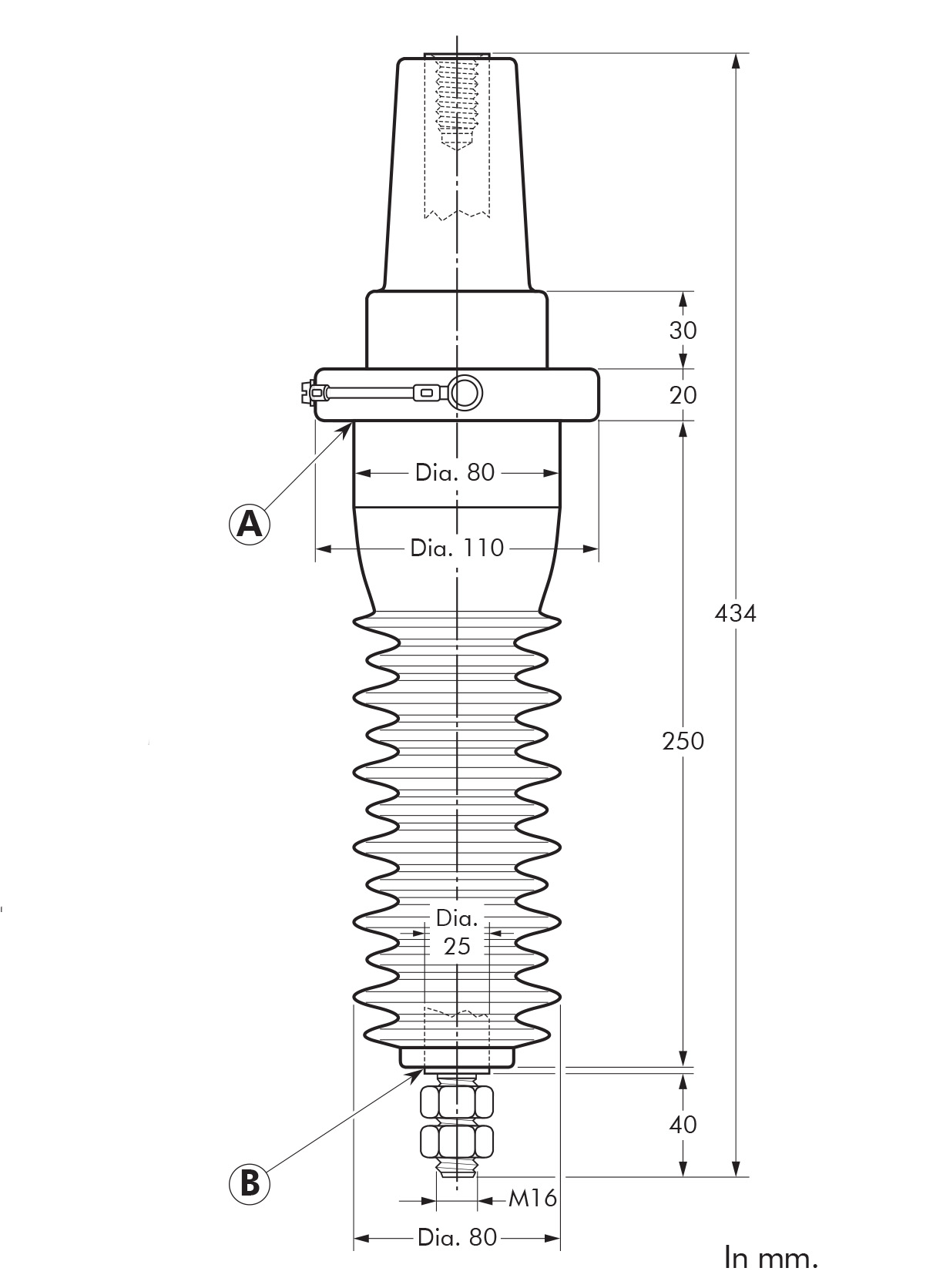

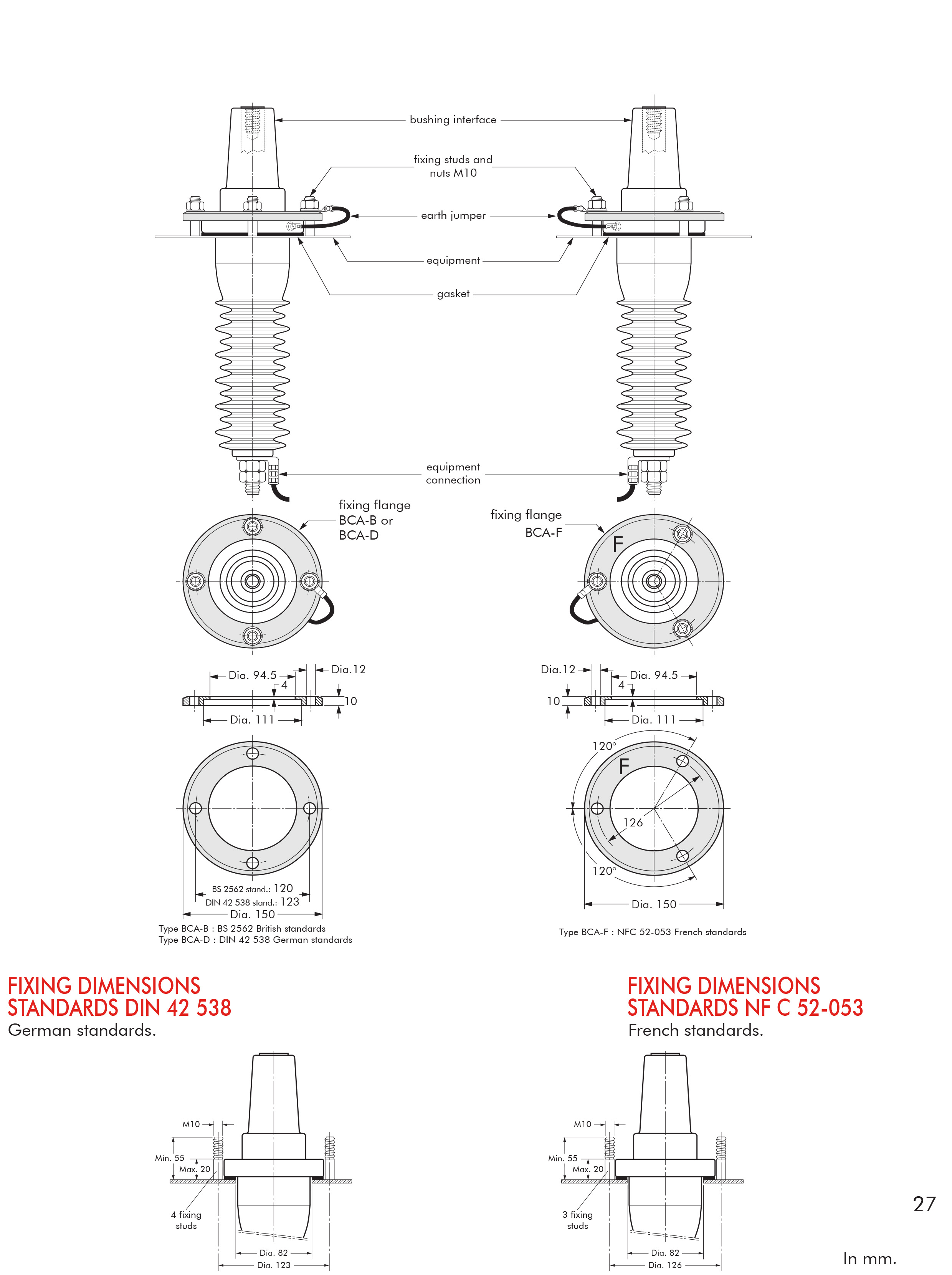

Drawings 400A-24B
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Creepage distance
520 mm
Electrical characteristics
Electrical characteristics
Rated current
630 A
Usage characteristics
Usage characteristics
Field of application
Indoor, Outdoor
Interface
C (630 - 1250 A)
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
