MV Bushings 400T1
MV Bushings 400T1
Equipment bushings connector for interface B. Up to 36 kV, 400 A.
Read more
Description
Description
Standards
-
ProductCENELEC EN 50180
-
InternationalIEC 60137
Application
For use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors...
Technical characteristics
Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
Design 400T1/400AR-1/400AR-2
Design legend 400T1

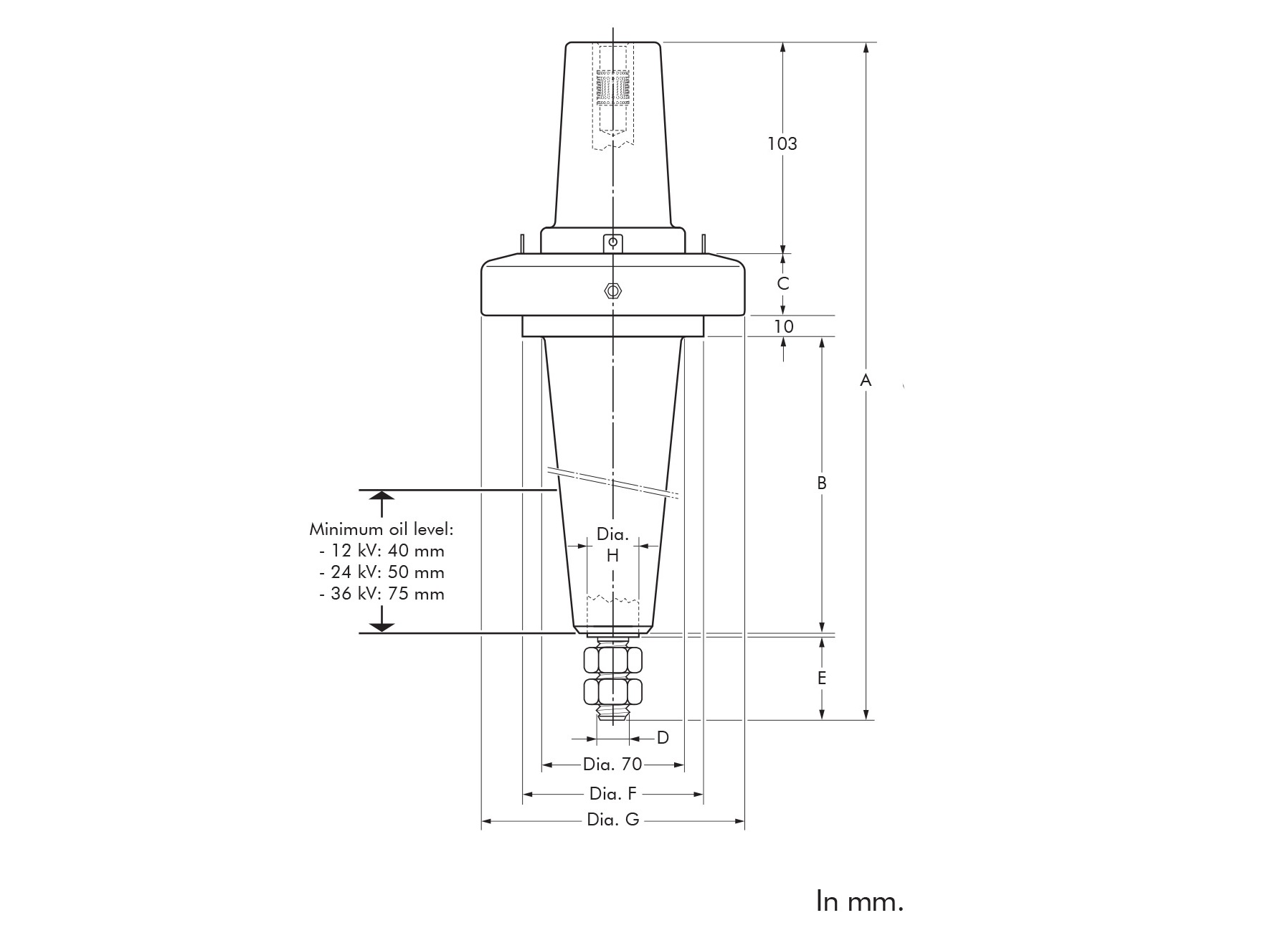

Dimensions (K)(M)400T1:
- A: 310 mm
- B: 144 mm
- C: 30 mm
- D: M12
- E: 22 mm
- Diam. F: 88 mm
- Diam. G: 128 mm
- Diam. H: 16 mm

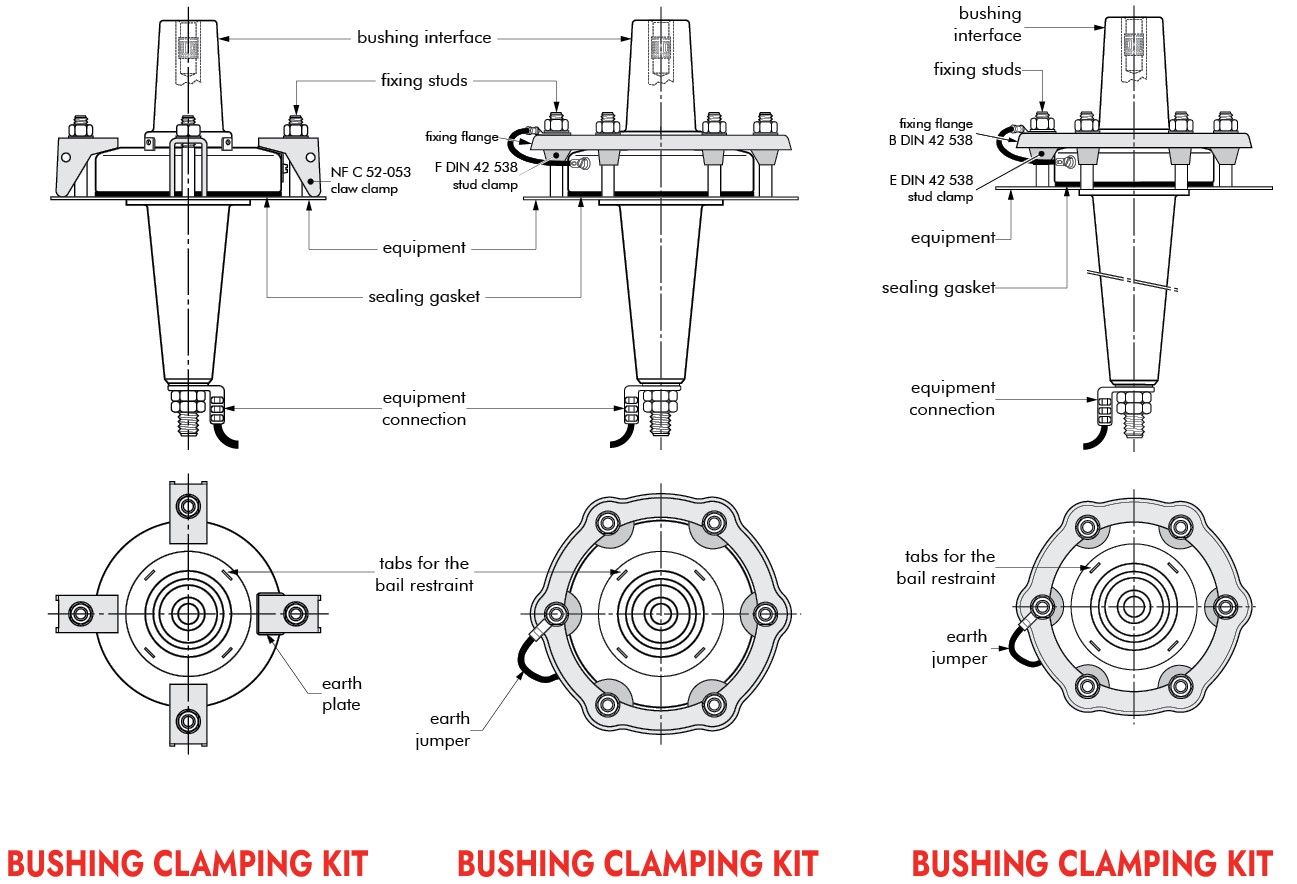

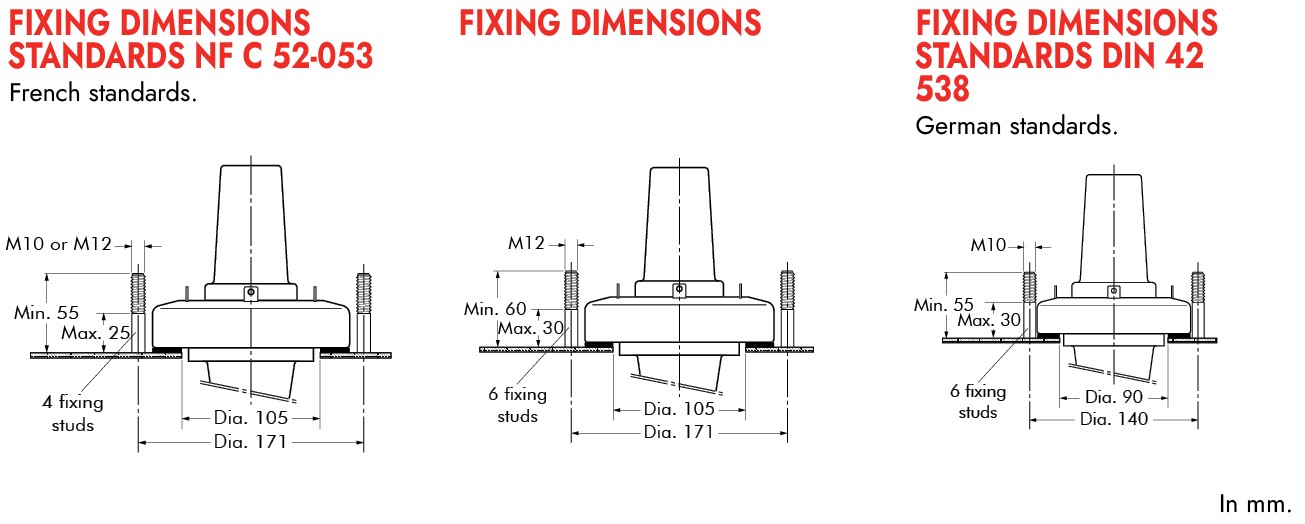

Drawings 400T1/400AR-1/400AR-2
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Rated current
400 A
Usage characteristics
Usage characteristics
Field of application
Indoor, Outdoor
Interface
B (400 A)
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your representative.
