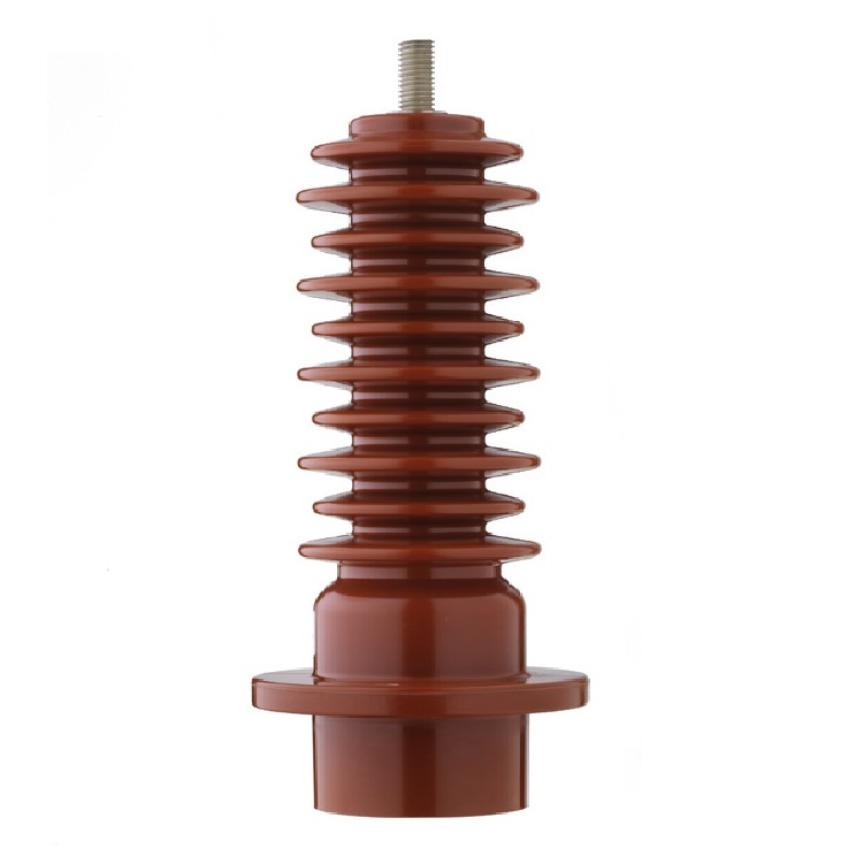

MV Bushings PITO-E

Products

PITO-E

Nexans ref.

  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



PITO-E

Nexans ref.

  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



Description

Description

Standards

  • Product
    EN 50180; EN 50181
  • International
    IEC 60137

Application

Separable termination designed to connect overhead lines or bus bars to equipment. Is suitable for indoor and outdoor use for medium polluted atmosphere.

Technical characteristics

Each plug-in termination is tested for AC withstand prior to leaving the factory.

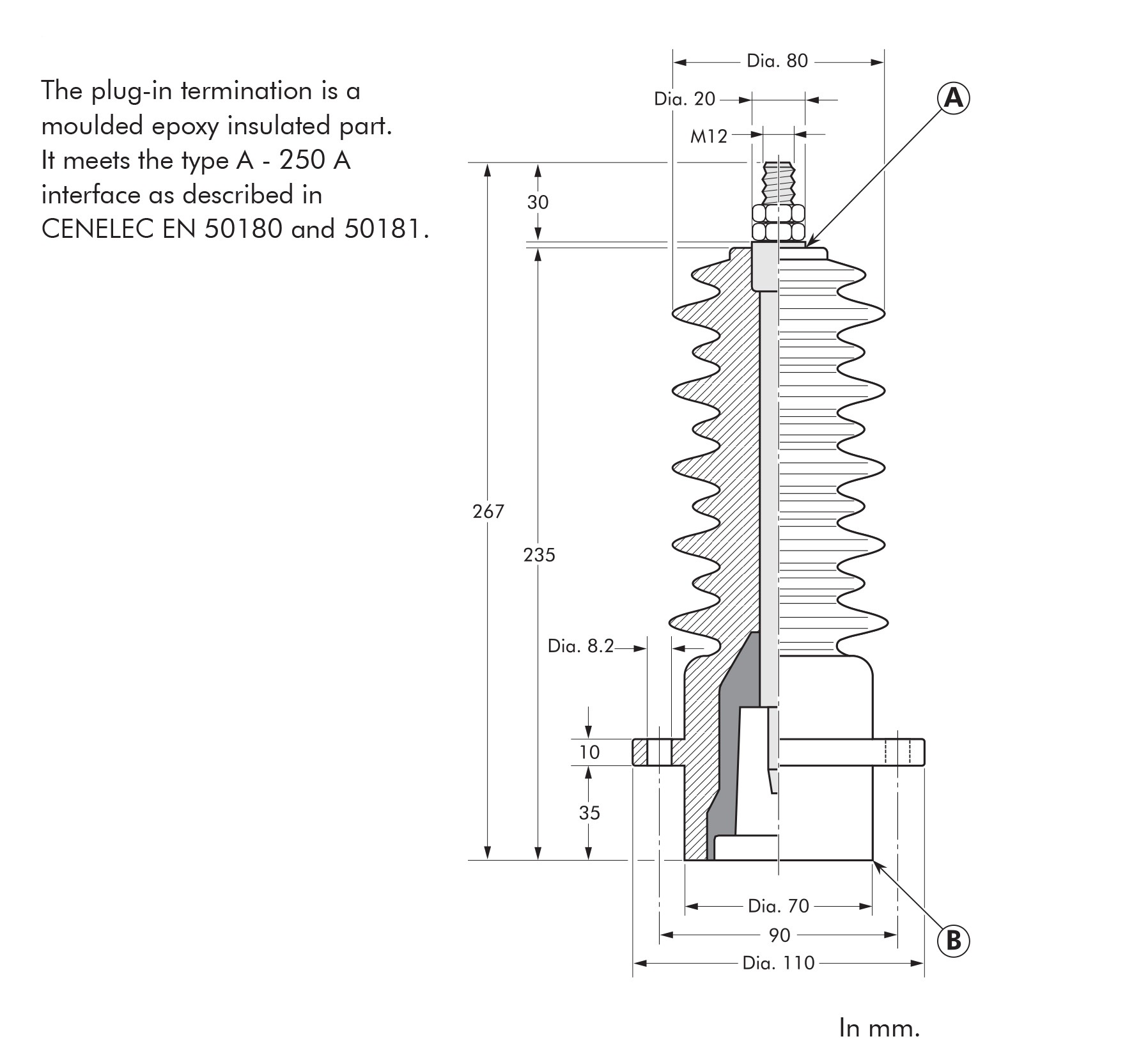

Design PITO-E

Characteristics

Characteristics

Dimensional characteristics

Dimensional characteristics

Creepage distance
510 mm

Electrical characteristics

Electrical characteristics

Rated current
250 A

Usage characteristics

Usage characteristics

Field of application
Indoor, Outdoor
Interface
A (250 A)

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
