MV Bushings 180AR-3

Products

180AR-3

Nexans ref.

  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



K180AR-3

Nexans ref.

  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



Description

Description

Standards

  • Product
    CENELEC EN 50180
  • International
    IEC 60137

Application

For use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors...

Technical characteristics

Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.

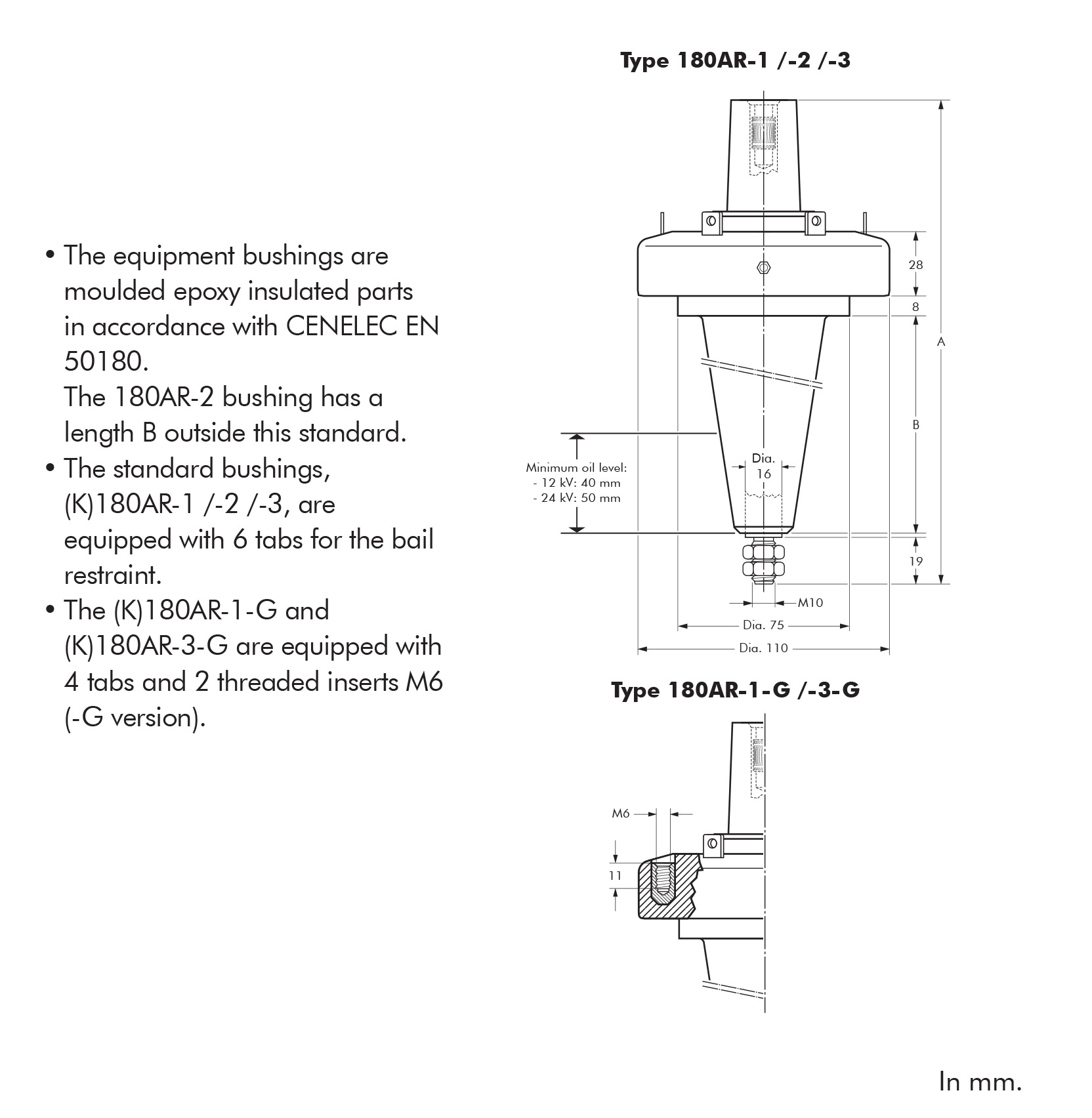

Design 180AR

Design legend 180AR-3

imensions (K)18AR-3:

  • A: 171 mm
  • B: 55 mm

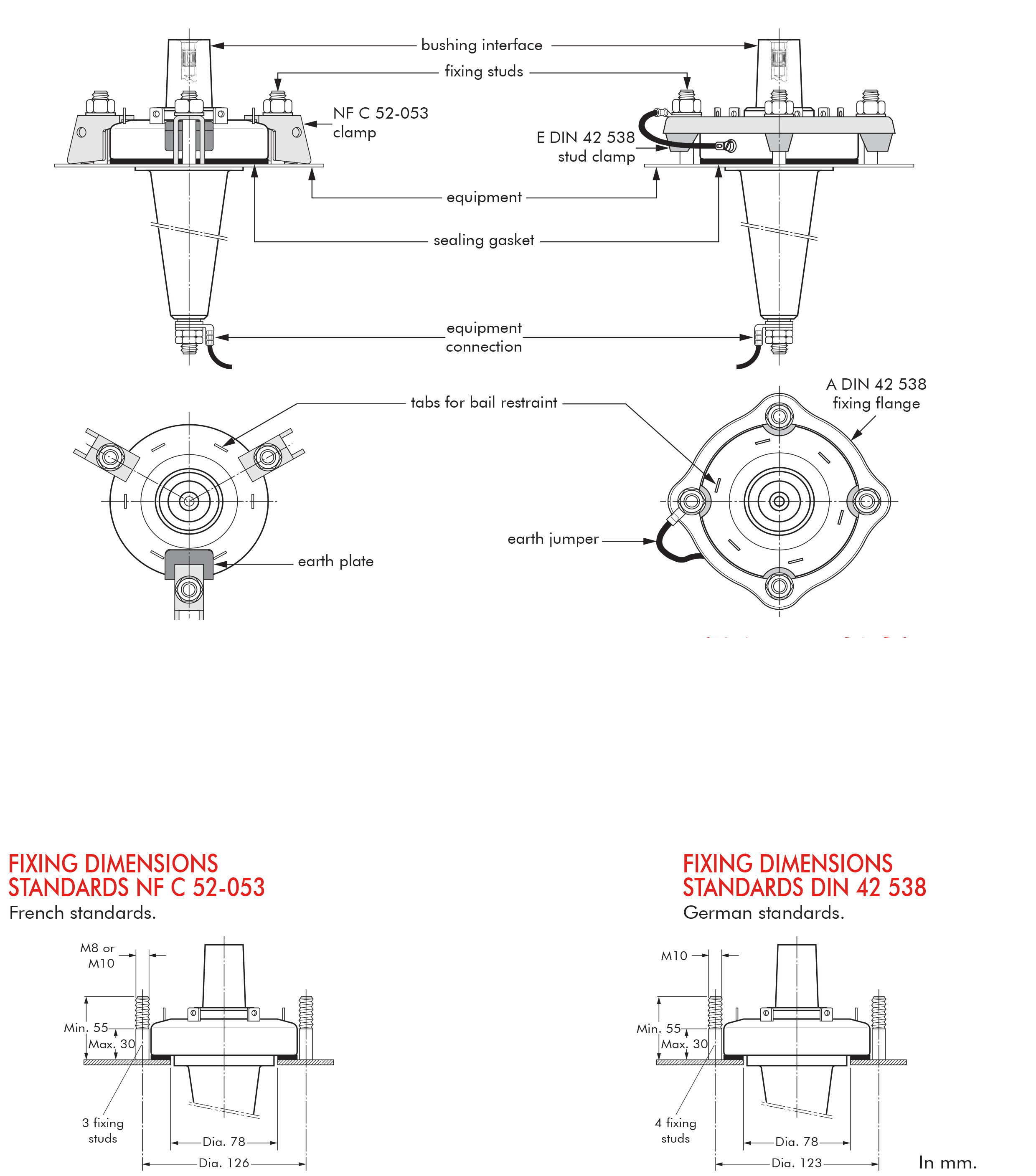

Drawings 180AR

Characteristics

Characteristics

Electrical characteristics

Electrical characteristics

Rated current
250 A

Usage characteristics

Usage characteristics

Field of application
Indoor, Outdoor
Interface
A (250 A)

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
