MV Bushings 180A-24P-O

Products

180A-24P-O

Nexans ref.

  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV



K180A-24P-O

Nexans ref.

  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



Description

Description

Standards

  • Product
    EN 50180; EN 50181
  • International
    IEC 60137

Application

For use in equipment insulated with air, typically for dry type transformers, motors, switchgear, capacitors...

Technical characteristics

Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.

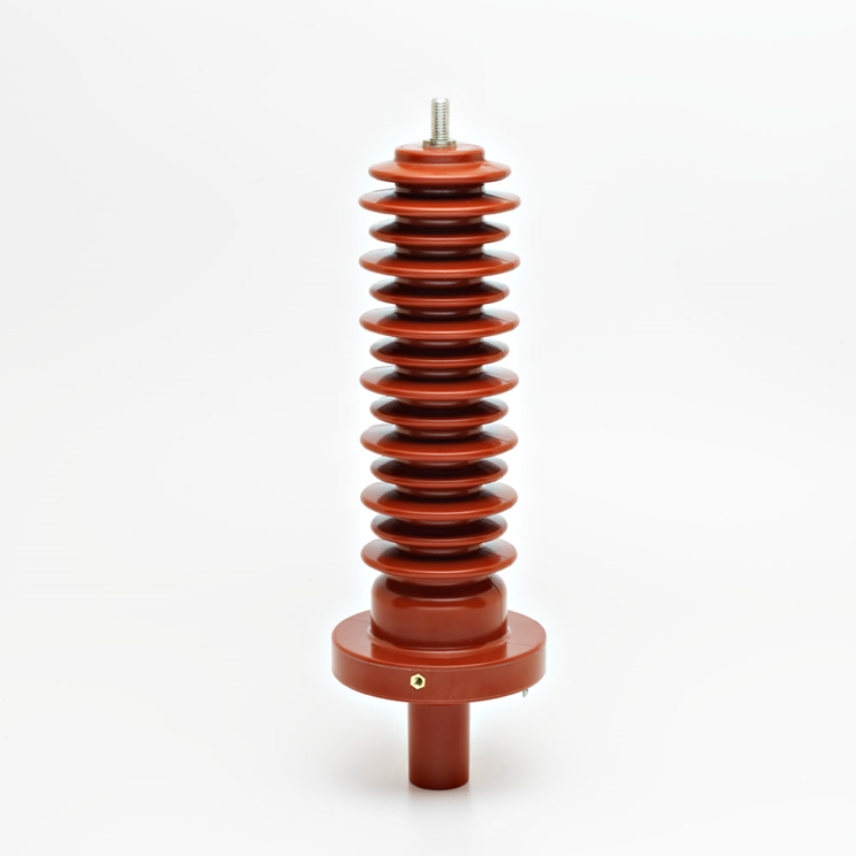

Design 180A-24P-O

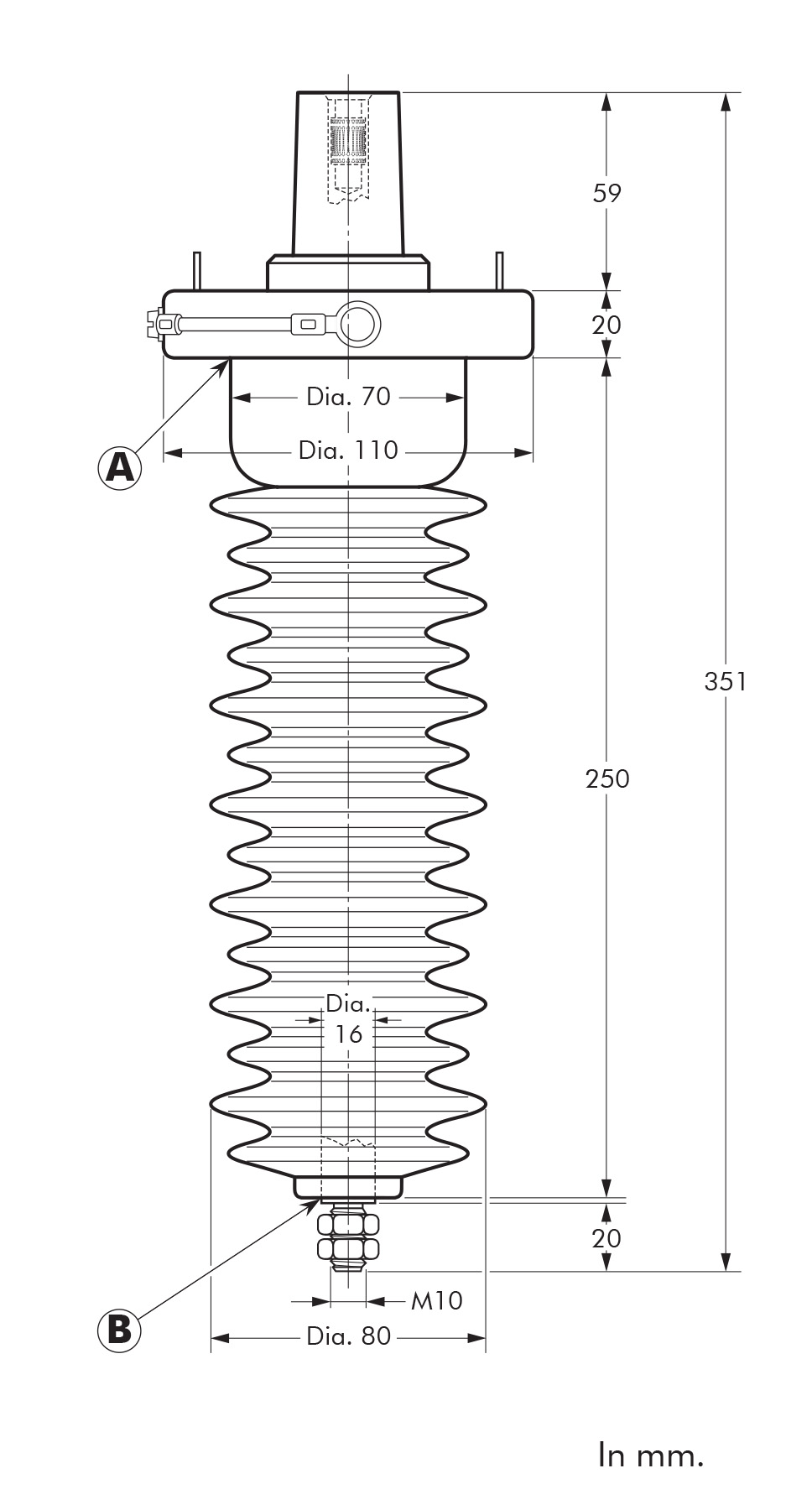

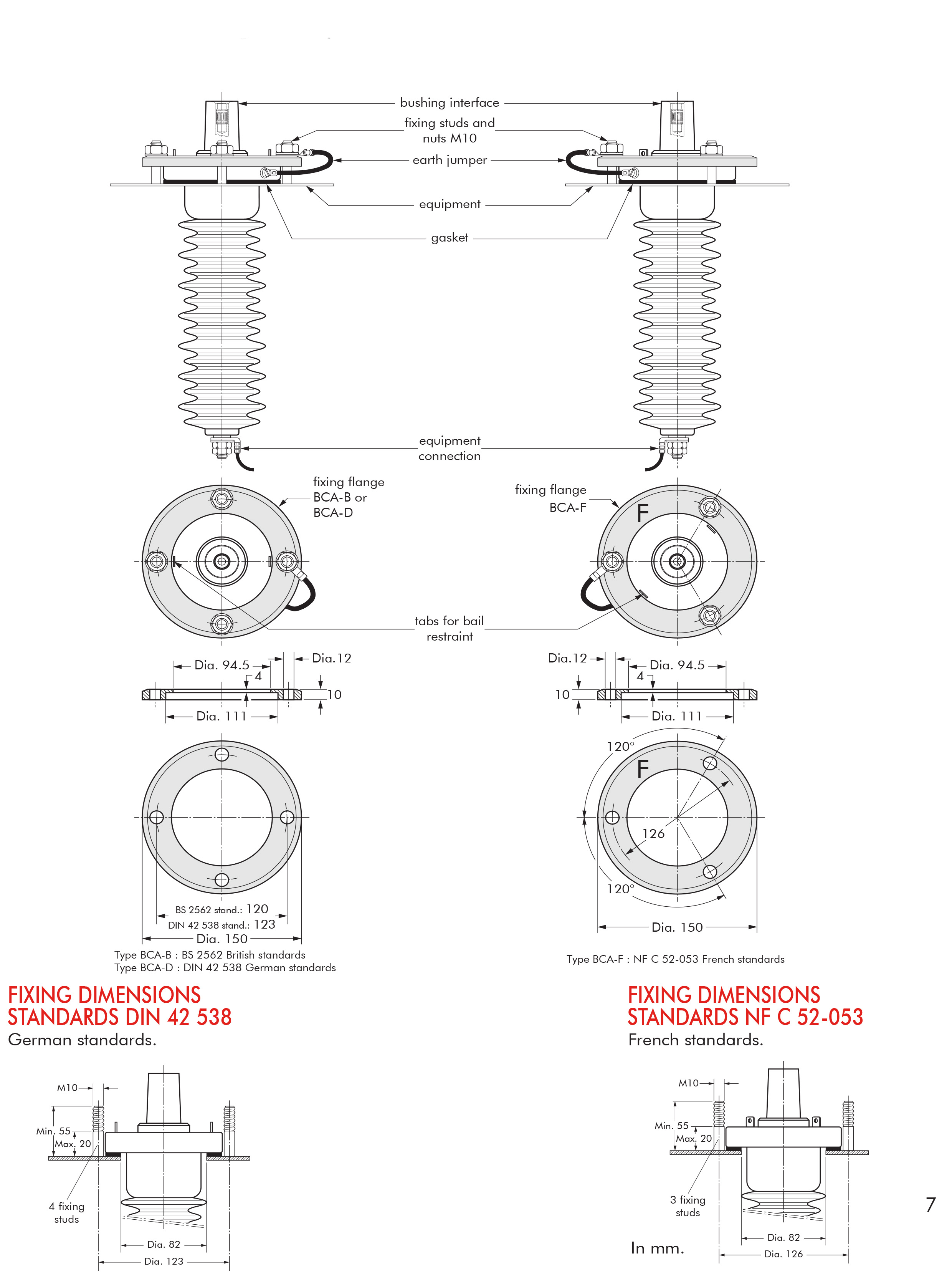

Drawings 180A-24P-O

Characteristics

Characteristics

Dimensional characteristics

Dimensional characteristics

Creepage distance
630 mm

Electrical characteristics

Electrical characteristics

Rated current
250 A

Usage characteristics

Usage characteristics

Field of application
Indoor, Outdoor
Interface
A (250 A)

Resources

Resources

Selling & delivery Information

The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your representative.
