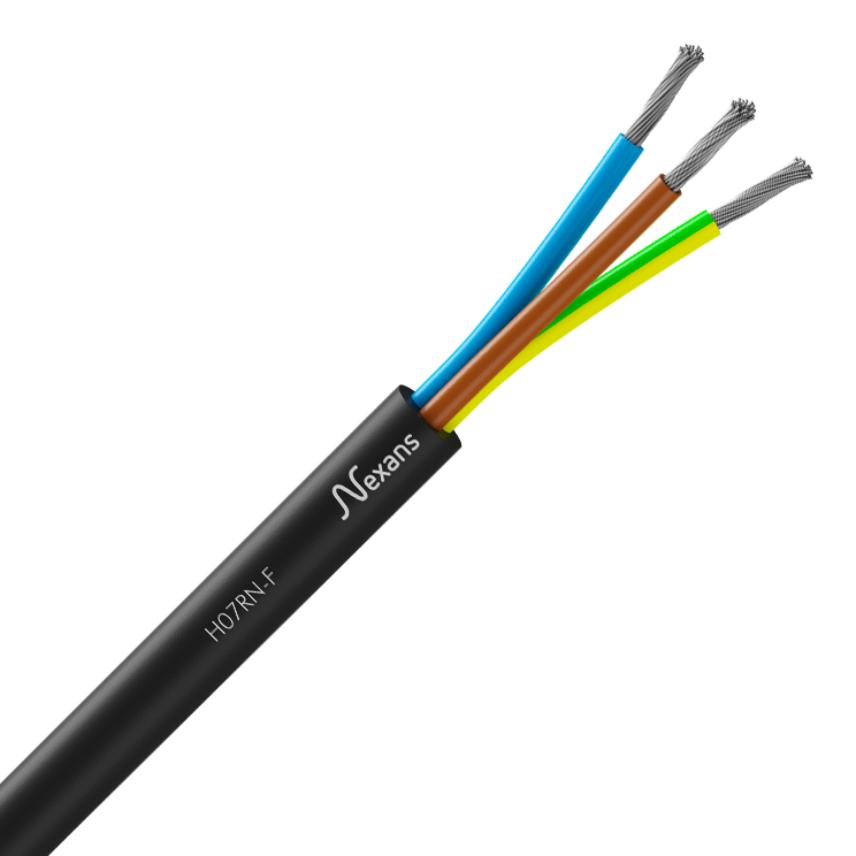

Nexans H07RN-F
Nexans H07RN-F
Industrial flexible rubber cable range with an insulation and sheath in elastomers. Cables for heavy duty uses, Oil resistant and Flame retardancy according to IEC/EN 60332-1-2 standard.
Read moreCOIL H07RNF 5G2,5 25m NO
Nexans ref. 10260791
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free:
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 5
- Maximum outer diameter: 17.0 mm
- Minimum outer diameter: 13.3 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 50 °C
- Short-circuit max. conductor temperature: 250 °C
COIL H07RNF-3x1,5-10
Nexans ref. 10268745
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Maximum outer diameter: 11.9 mm
- Minimum outer diameter: 9.2 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
COIL H07RNF-3x1,5-5
Nexans ref. 10268744
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Maximum outer diameter: 11.9 mm
- Minimum outer diameter: 9.2 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
COIL H07RNF-3x2,5-10
Nexans ref. 10268747
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Maximum outer diameter: 14.0 mm
- Minimum outer diameter: 10.9 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
COIL H07RNF-3x2,5-25
Nexans ref. 10268789
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Maximum outer diameter: 14.0 mm
- Minimum outer diameter: 10.9 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
Description
Description
Standards
-
ProductEN 50525-2-21; HD 22.4; HD 516; IEC 60245-4 type 66; NF C32-102-4
Application
H07RN-F flexible cable is intended for installations with moving equipments, electric appliances and for building sites also for motors in lifting appliances -machine tools, etc ... The cable may be rated up to 0,6/1 kV where the installation has built-in protection.
This range of cables is recommended in dry, damp or wet workshops, indoor and outdoor, for example in explosive atmosphere(as ATEX) according to regulation of the country and with some additional recommendations and also for industrial devices and agricultures workshops ...
This cable can be used in refrigerating installations.
Installation
Conductors laid up
Assembled conductors.
Nota
Max continuous operating conductor temperature in normal use :
+60°C (in every case of mobile installation)
+85°C (in fixed and protected installation)
+200°C ( in short circuit )
Permissible current rating is measured for an ambient temperature of 30°C and a maximum operating and conductor temperature of 60°C . For other temperature please refer to correction factors .
European Directive RoHS : Compliant
SY+ : French directive for lead free materials in materials.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Marking
USE <'HAR> H07RN-F N (x or G) S mm²
N = number of cores
G = with Green-Yellow
x = without Green-Yellow
S = section in mm²
